Manual chain hoists are robust, dependable tools, but their safety relies entirely on proper operation and thorough inspection. From calculating Working Load Limits (SWL/WLL) to proper hook engagement, adhering to these strict industry guidelines will prevent catastrophic failures and protect personnel on the job site.
Before any load is attached to the hoist, a visual and functional check is absolutely mandatory.
Check for "stretch" or physical opening. If the throat opening has increased by more than 10% from its original size, the hook is fatally compromised. Always ensure the spring-loaded safety latch snaps shut cleanly.
Look closely for nicks, gouges, excessive wear, or heat damage. Never, under any circumstances, use a hoist with a twisted, stretched, or "kinked" load chain.
Perform a "test lift" by raising the load approximately 100 mm. Once you stop pulling the hand chain, the internal brake should hold the load firmly without any "creep" or sliding whatsoever.
| Feature | Safety Requirement | Action if Failed |
|---|---|---|
| Hook Throat Opening | Maximum 10% increase from new | Replace Hook Immediately |
| Chain Wear | Maximum 5% reduction in diameter | Replace Entire Chain |
| Safety Latch | Must be spring-loaded and flush | Replace Latch Kit |
| Brake Performance | Zero movement when hand chain is released | Quarantine and Service Unit |
1. No "Over-Chaining": Do not use the hoist's load chain to form a sling. It must not be wrapped around the load and back hooked, shackled, or choke-hitched. Doing so eliminates the swivel function and places extreme crushing forces on the chain links.

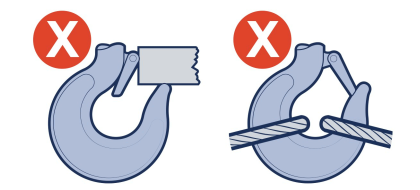

2. Proper Hook Seating: The bottom hook should be attached to the load such that no part of the load is in contact with the point (tip) of the hook. Always ensure the load is applied evenly through the saddle (bowl) of the hook.

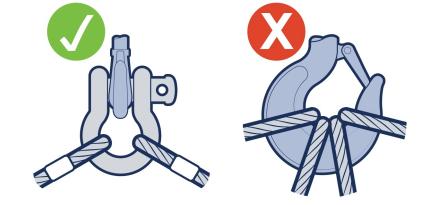

3. Prevent Overcrowding: The bottom hook should not be crowded with the terminal fittings of multiple slings. To prevent the hook from becoming overcrowded, it is heavily recommended that the upper ends of the sling legs are connected by means of a shackle or link of adequate strength.
Vertical Alignment: The hoist must be directly plumb over the load's center of gravity. Side loading or dragging a load at an angle puts extreme, destructive stress on the chain guides and internal components.
Steady Pulling & No Shock Loading: Pull the hand chain with a steady, even motion. Jerking the chain can double the dynamic force on the internal gears. Care must be taken to ensure the hoist is never subjected to shock loading (e.g., dropping a load and catching it with the chain).
Suspended Loads: Loads should not be left suspended from hoists for any length of time unless absolutely essential. If a load must remain suspended, cordon off the danger area. Personnel must never stand beneath or on a suspended load.
One Person Operation: The majority of hand chain hoists are designed for operation by one person. If more than one person is required to pull the hand chain, it indicates the load exceeds the SWL, or the hoist requires immediate maintenance. Stop the lift and investigate.
Suspension from Power Cranes: When a manual hoist is suspended from a power-operated crane to facilitate accurate positioning, the SWL of the manual hoist should be reduced by 15% to allow for the higher dynamic loading. Always perform a short test lift to ensure the manual brake is locked before moving the crane.
Angled Lifts: If a hoist must be used at an angle to the vertical: only a hook-suspended hoist should be used, the suspension point must handle the line of force, the hoist must be free to align between the top and bottom hooks, and the maximum force must be calculated by a competent person to ensure the rated capacity is not exceeded.
Hoists in Series: For exceptionally high lifts, hoists can be used in series provided that the physical weight of the lower hoist(s) is calculated into the total load weight when assessing the required SWL of the hoist above it.
