Wire Rope Pulling Hoists
Versatile Hand-Operated Lifting & Tensioning Machines
800kg - 5400kg Capacity Aluminum or Steel Casing Overload Protection

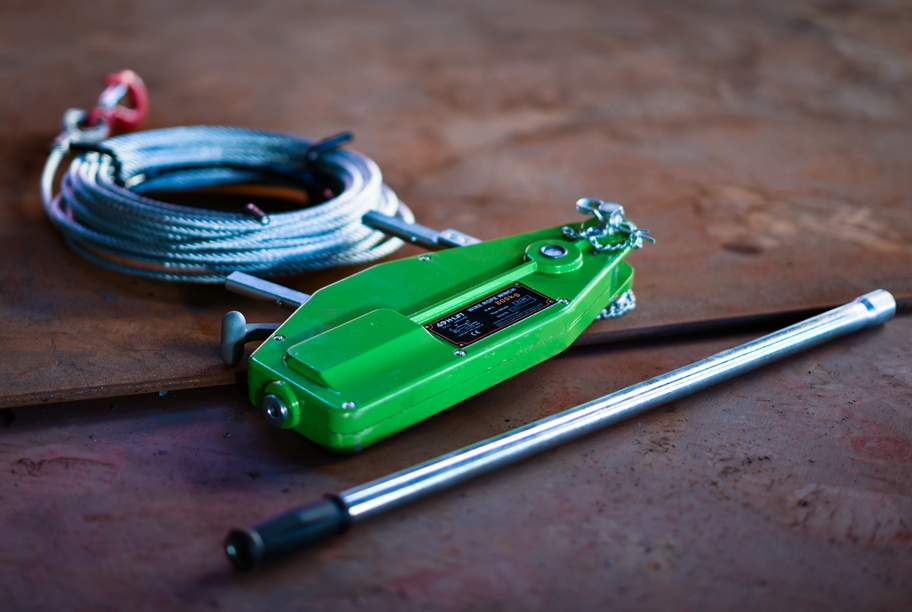

A wire rope puller, also known as a wire rope lifting or pulling machine, is an incredibly versatile, hand-operated device designed for lifting, pulling, lowering, tensioning, and guying operations. It is an essential piece of equipment widely employed across construction sites, industrial maintenance, and complex rigging tasks.
Key Engineering Features
⚙️
Core Functionality
- Lifting & Pulling: Effortlessly moves heavy loads across long distances.
- Lowering & Tensioning: Provides highly controlled operation for tensioning cables or slowly lowering loads.
- Working Positions: Uniquely capable of operating horizontally, vertically, or at any specific angle.
🔧
Advanced Jaw Mechanism
- No Drum Reel: Unlike traditional winches, the rope passes directly through the machine rather than coiling on a drum, allowing for unlimited pulling length.
- Parallel Clamping: Mechanical jaws apply grip to the wire rope in sections, distributing the pulling force evenly to significantly reduce rope wear.
📋
Technical Specifications
- Load Capacity: Available in a wide range of lifting capacities (typically from 800 kg up to 5,400 kg).
- Material Builds: Offered in lightweight aluminum alloy casings for portability, or heavy-duty steel versions for extreme durability.
- Wire Rope Setup: Typically supplied with 20 meters of specialized steel wire rope fitted with a heavy-duty eye hook.
🛡️
Safety & Compliance
- Manual Operation: Provides tactile feedback to the operator.
- Overload Protection: Built-in safety features, such as calibrated shear pins, immediately snap to prevent the machine from bearing excessive, dangerous loads.
- Certification: Supplied with relevant testing certifications and comprehensive user manuals.
🚨 Critical Rigging Considerations
- Capacity Variations: The method of rigging directly impacts the effective capacity of the machine. Always follow the recommended configuration charts.
- Alignment: Anchor points must allow for strict straight-line operation to prevent dangerous side-loading forces on the casing.
- Connections: Always use appropriate lifting slings between the rigid anchor point and the puller if direct connection is not possible.
- Complex Lifts: Always consult a qualified rigging engineer for complex rigging calculations involving pulleys, angles, or multi-point lifts.
