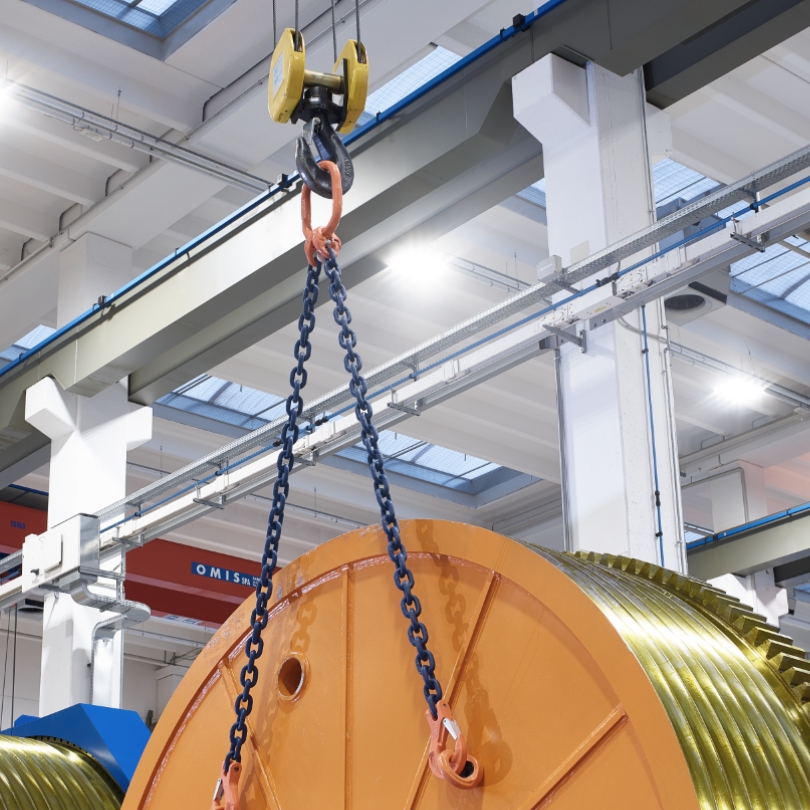

A double leg chain sling is a robust lifting assembly consisting of two high-strength alloy chains attached to a single master link. Commonly used in construction, manufacturing, and heavy transportation, these slings evenly distribute the load weight across two attachment points. This significantly increases stability, prevents damage to the load, and drastically reduces the risk of hazardous load spinning during a lift.

Key Operational Advantages

⚖️

Enhanced Stability

By providing two points of attachment, these slings effectively prevent the dangerous "spinning" effect common with single-leg lifts, making them essential for wide or unbalanced loads like steel plates and machinery skids.

🔗

Adjustable Reach

When equipped with shortening clutches or grab hooks, the length of a double-leg sling can be precisely adjusted on the fly to safely balance loads with an offset or uneven Center of Gravity (CG).

⚙️

Versatile Configurations

Available in Grade 80, 100, or 120 alloy steel, these assemblies can be highly customized with various end-fittings, including self-locking hooks, swivel hooks, or heavy-duty shackles.

🛡️

Safety Redundancy

Distributing the weight across two individual legs reduces the absolute stress and tension on individual chain links compared to performing a single-leg lift of the exact same total weight.

📐 Technical Insight: The Geometry of Tension

The most critical factor in safely using a 2-leg sling is the Included Angle (the angle between the two legs spreading from the master link). As this angle increases, the tension applied to each individual leg grows exponentially.

🚨 Rigging Pro-Tip: Never exceed an included angle of 120°. At this extreme angle, each individual leg is placed under tension equal to the full weight of the load itself, effectively doubling the stress on your rigging gear and risking catastrophic failure.

Frequently Asked Questions

Q: What is the ideal angle for a 2-leg chain sling?

A: The most efficient and safe lifting angle is between 0° and 45° from the vertical axis (a 90° maximum included angle). This provides the optimal balance between preserving headroom and maximizing load capacity.

Q: How do I know if the load is balanced before a full lift?

A: Before committing to a full lift, perform a "Test Lift" by raising the load just a few centimeters off the ground. If the load visibly tilts, lower it immediately and adjust the chain leg lengths using shortening clutches until the master link sits directly plumb over the load's Center of Gravity.
