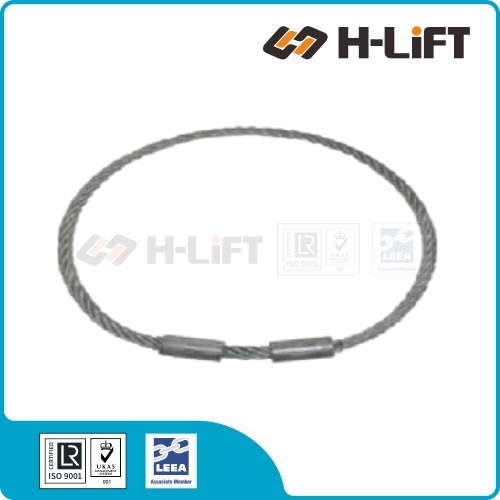

H-Lift Endless Wire Rope Sling, Locking type (6X37+IWRC)
Splicing the ends of a piece of wire rope makes an endless sling. It is simple to handle and can be used in several different ways to lift loads.

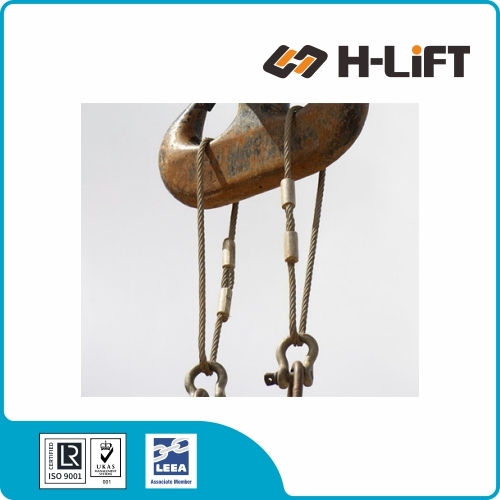

The endless wire rope sling is most commonly used as a choker hitch. When the endless wire rope sling is used as a choker, user passes it around the object forming a loop on top of the object. The other end is passed through this loop, pulled tight and attached to the cargo hook. To balance the load, user spread apart the two parts of the wire rope sling on the bottom of the object.
The minimum circumference length of the wire rope sling is 50 times the wire rope diameter.
| Item No. | Rope Dia. (mm) | Working Load Limit (t) | Product Code | |||||
| Vertical | Choker | Basket Hitches | ||||||
 |
 |
 |
60° | 45° | 30° | |||
 |
 |
 |
||||||
| WRSEL010 | 10 | 2.1 | 1.6 | 4.2 | 3.7 | 2.9 | 2.1 | 602006010 |
| WRSEL012 | 12 | 3.2 | 2.3 | 6.3 | 5.5 | 4.4 | 3.2 | 602006012 |
| WRSEL014 | 14 | 4 | 3 | 8 | 7 | 6 | 4 | 602006014 |
| WRSEL016 | 16 | 5 | 4 | 11 | 9 | 7 | 5 | 602006016 |
| WRSEL018 | 18 | 7 | 5 | 13 | 12 | 9 | 7 | 602006018 |
| WRSEL020 | 20 | 8 | 6 | 16 | 14 | 11 | 8 | 602006020 |
| WRSEL022 | 22 | 10 | 7.5 | 20 | 17 | 14 | 10 | 602006022 |
| WRSEL024 | 24 | 12 | 9 | 24 | 21 | 17 | 12 | 602006024 |
| WRSEL026 | 26 | 14 | 11 | 29 | 25 | 20 | 14 | 602006026 |
| WRSEL028 | 28 | 17 | 13 | 33 | 29 | 23 | 17 | 602006028 |
| WRSEL030 | 30 | 19 | 14 | 38 | 33 | 27 | 19 | 602006030 |
| WRSEL032 | 32 | 21 | 16 | 42 | 37 | 30 | 21 | 602006032 |
| WRSEL034 | 34 | 24 | 18 | 48 | 42 | 34 | 24 | 602006034 |
| WRSEL036 | 36 | 27 | 20 | 54 | 47 | 38 | 27 | 602006036 |
| WRSEL038 | 38 | 30 | 23 | 60 | 52 | 42 | 30 | 602006038 |
| WRSEL040 | 40 | 34 | 26 | 68 | 60 | 47 | 34 | 602006040 |
| WRSEL042 | 42 | 37 | 28 | 74 | 65 | 52 | 37 | 602006042 |
| WRSEL045 | 45 | 43 | 33 | 86 | 75 | 60 | 43 | 602006045 |
| WRSEL050 | 50 | 53 | 40 | 106 | 93 | 74 | 53 | 602006050 |
| WRSEL052 | 52 | 56 | 43 | 112 | 99 | 78 | 56 | 602006052 |
| WRSEL056 | 56 | 66 | 50 | 132 | 117 | 93 | 66 | 602006056 |
| WRSEL060 | 60 | 76 | 58 | 152 | 134 | 107 | 76 | 602006060 |
| WRSEL065 | 65 | 89 | 68 | 179 | 157 | 125 | 89 | 602006065 |
| WRSEL070 | 70 | 104 | 79 | 208 | 183 | 146 | 104 | 602006070 |
| WRSEL075 | 75 | 119 | 90 | 237 | 209 | 166 | 119 | 602006075 |
| WRSEL078 | 78 | 129 | 98 | 257 | 226 | 180 | 129 | 602006078 |
| WRSEL082 | 82 | 142 | 108 | 285 | 251 | 199 | 142 | 602006082 |
| WRSEL087 | 87 | 156 | 119 | 313 | 275 | 219 | 156 | 602006087 |
| WRSEL092 | 92 | 179 | 136 | 358 | 315 | 250 | 179 | 602006092 |
| WRSEL095 | 95 | 191 | 145 | 382 | 336 | 267 | 191 | 602006095 |
| WRSEL100 | 100 | 203 | 154 | 406 | 357 | 284 | 203 | 602006100 |
| WRSEL102 | 102 | 219 | 167 | 438 | 386 | 307 | 219 | 602006102 |
| WRSEL105 | 105 | 232 | 176 | 463 | 408 | 324 | 232 | 602006105 |
* WLL=MBL X 0.9 (Pressing Efficiency of Aluminum Ferrules)/5 (Safety Factor)
A wire rope sling is a type of lifting sling made of wire rope that is used to hoist heavy loads in a variety of industries, including construction, shipping, and manufacturing. It is made up of several individual strands of wire that are twisted together to form a strong, flexible rope. The wire rope sling is designed to distribute the weight of the load evenly, making it easier to lift and move.
Wire rope slings come in different types, including single-leg slings, double-leg slings, and multi-leg slings, depending on the number of legs or branches that are attached to the load. They are also available in different configurations, such as choker, basket, or vertical hitch, which affect their lifting capacity and application.
Wire rope slings are highly durable and resistant to abrasion, making them suitable for heavy lifting applications that require a high level of strength and durability. However, they should be inspected regularly for signs of wear and tear, and should only be used by trained professionals who understand their safe usage and handling procedures.
