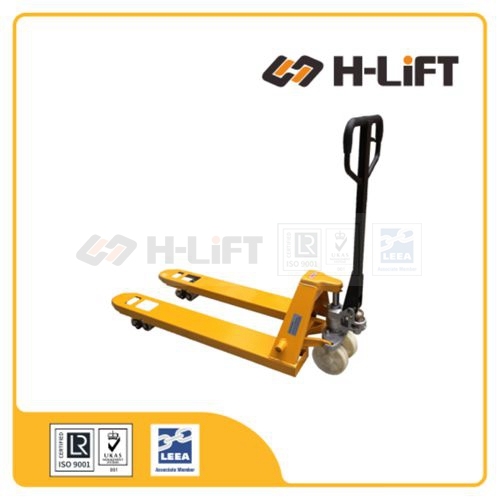

The H-Lift Hand Pallet Truck PT-BF Type is a manual hydraulic pallet jack designed for efficient lifting and transporting of palletized loads in warehouses, retail, and distribution centers.
The PT-BF Type Hand Pallet Truck sets a new standard for durability with its Integral Casting Pump. Unlike welded pumps, this single-piece cast design minimizes leakage risks and extends service life. Available in 2.5 and 3.0 Tonne capacities, it offers smooth handling and robust performance for demanding industrial environments.
Features a robust BF Type integrated pump made from a single cast piece. This design significantly reduces seal wear and leakage potential compared to traditional welded pumps.
Available in 2.5 Tonne (2500kg) and 3 Tonne (3000kg) models, capable of handling standard to heavy industrial pallet loads with ease.
Equipped with a rubber-grip handle and a 210-degree steering arc, providing a tight turning radius for excellent maneuverability in narrow aisles.
Choose from Nylon (hard/durable), Polyurethane/PU (quiet/floor-protecting), or Rubber wheels to best suit your facility's flooring conditions.
| Item No. | Capacity (t) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
L (mm) |
W (mm) |
B (mm) |
A (mm) |
Product Code |
|---|---|---|---|---|---|---|---|---|---|
| PT-BF525 | 2.5 | 75/85 | 190/200 | 431.5 | 1150 | 540 | 75/80 | 180/200 | 803001525 |
| PT-BF625 | 2.5 | 75/85 | 190/200 | 431.5 | 1150 | 685 | 75/80 | 180/200 | 803001625 |
| PT-BF530 | 3 | 75/85 | 190/200 | 431.5 | 1150 | 540 | 75/80 | 180/200 | 803001530 |
| PT-BF630 | 3 | 75/85 | 190/200 | 431.5 | 1150 | 685 | 75/80 | 180/200 | 803001630 |
A hand pallet truck, also known as a pallet jack, is a manually operated material handling device used to lift and move palletized loads within a warehouse or other industrial setting. It is a simple yet effective tool for transporting heavy loads horizontally over short distances.
Primary Applications:
Operated by the handle to lift the load effortlessly. Some models feature a quick-lift mechanism for faster initial lifting.
Consists of a forked platform that slides underneath the pallet. Fork length and dimensions vary to suit different pallet standards (e.g., Euro vs. Standard).
Features small steering wheels at the front for navigation and larger load wheels at the back for stability under heavy loads.
Designed with a small turning radius, making them highly suitable for confined spaces and narrow warehouse aisles.
Proper operation is essential for safety:
Regular maintenance ensures smooth and safe operation:
| Specification | Standard Duty | Heavy Duty |
|---|---|---|
| Load Capacity | 2,000 kg - 2,500 kg | 3,000 kg - 5,000 kg |
| Fork Length | 1,150 mm (Standard) | 1,220 mm (Extended) |
| Fork Width (Overall) | 540 mm (Euro) / 685 mm (Wide) | 540 mm / 685 mm |
| Wheel Material | Polyurethane / Nylon | Steel / Heavy Duty Poly |
