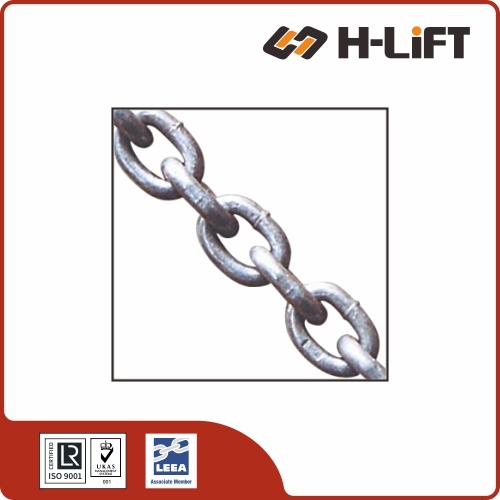

H-Lift Proof Coil Chain ASTM80 (G30)
Grade 30 proof coil chain is made of carbon steel and is designed for many general-purpose applications.
Carbon chain is most commonly used for tie down and container securement purposes and is not recommended for overhead lifting.
This is the lowest chain grade available on the market when it comes to graded welded chain, and is commonly referred to as “proof coil.” Grade 30 is a rather generic type of chain that can be used anywhere from logging, trucking tie downs, or even on playground equipment.
Item No. | Nominal Size | Working Load Limit(max) | Proof Load(min) | Breaking Load(min) | Weight per 100' | Inside Length(max) | Inside Width(mm) | Product Code | |||||||
inch | mm | kg | lbs | kN | lbs | kN | lbs | kg | lbs | inch | mm | inch | mm | ||
C803004 | 1/8 | 4.0 | 190 | 420 | 3.78 | 580 | 7.56 | 1,700 | 8.8 | 19 | 0.89 | 22.6 | 0.29 | 7.4 | 708003004 |
C803005 | 3/16 | 5.5 | 360 | 800 | 7.11 | 1,600 | 14.2 | 3,200 | 18.3 | 40 | 0.95 | 24.1 | 0.40 | 10.2 | 708003005 |
C803007 | 1/4 | 7.1 | 600 | 1,320 | 11.8 | 2,650 | 23.6 | 5,300 | 32.7 | 72 | 1.00 | 25.4 | 0.50 | 12.7 | 708003007 |
C803008 | 5/16 | 8.7 | 910 | 2,000 | 17.8 | 4,000 | 35.6 | 8,000 | 48.0 | 106 | 1.10 | 27.9 | 0.50 | 12.7 | 708003008 |
C803010 | 3/8 | 10.3 | 1,270 | 2,800 | 24.9 | 5,600 | 49.8 | 11,200 | 70.3 | 155 | 1.23 | 31.2 | 0.62 | 15.7 | 708003010 |
C803013 | 1/2 | 13.5 | 2,190 | 4,800 | 42.9 | 9,650 | 85.8 | 19,300 | 123 | 271 | 1.53 | 38.9 | 0.80 | 20.3 | 708003013 |
C803016 | 5/8 | 16.7 | 3,350 | 7,400 | 65.8 | 14,800 | 131.6 | 29,600 | 184 | 405 | 1.90 | 48.3 | 1.00 | 25.4 | 708003016 |
C803019 | 3/4 | 19.8 | 4,700 | 10,400 | 92.5 | 20,800 | 185.0 | 41,600 | 264 | 582 | 2.15 | 54.6 | 1.12 | 28.4 | 708003019 |
C803023 | 7/8 | 23.0 | 6,350 | 14,000 | 124.5 | 28,000 | 249.0 | 56,000 | 368 | 811 | 2.50 | 63.5 | 1.37 | 34.8 | 708003023 |
C803026 | 1 | 26.5 | 8,400 | 18,600 | 165.4 | 37,200 | 330.8 | 74,400 | 474 | 1,045 | 2.75 | 69.9 | 1.50 | 38.1 | 708003026 |
