Flat Webbing Sling EN 1492-1

Item No.: 3010

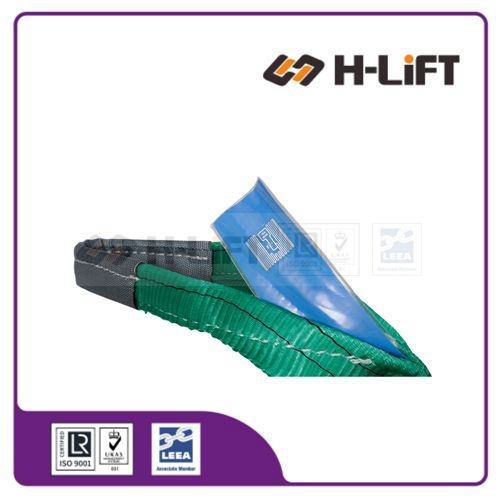

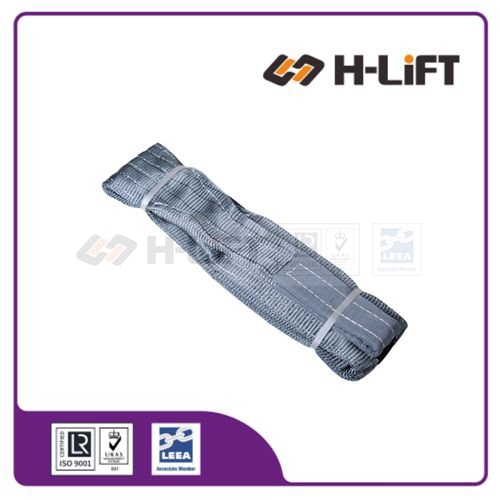

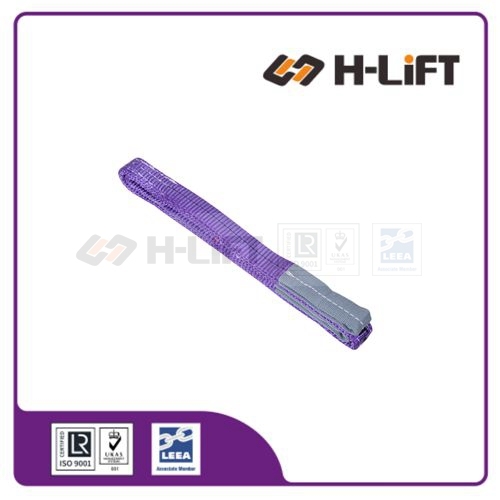

H-Lift Flat Woven Webbing Sling to EN 1492-1
Webbing slings are flat belt straps, usually woven together from 100% polyester, and have eye loops at either end. They can be manufactured in a variety of lengths and widths.
Description Safe Use of Flat Woven Webbing Sling
H-Lift Flat Woven Webbing Sling to EN 1492-1
  • Flat woven webbing slings, also commonly known as belt slings, are used for a variety of lifting purposes.
  • Webbing slings are flat belt straps, usually woven together from 100% polyester, and have eye loops at either end. They can be manufactured in a variety of lengths and widths. Webbing slings are also handily colour coded so that you know the exact lifting strength of your piece of lifting equipment.
  • Webbing slings provide a flexible, lightweight and portable alternative to many other pieces of lifting equipment on the market. This flexible nature means they can be easily wrapped around loads, especially those with a wide bearing surface or an odd shape. Their lightweight and soft nature also means that there will be minimal scratching or denting caused to the load that you are lifting or lowering.
  • Made from high-tenacity polyester yarn (PES), resistant to most acids but not to strong alkalis.
  • Duplex construction, PU-impregnated, thermally fixed.
  • With reinforced soft eyes.
  • Colour coded for easy capacity recognition.
  • Capacity stripes: each stripe is equal to 1 tonne capacity.
  • Standard sling length: 1m ~ 10m, longer length available on request.
  • Low elongation, lightweight and flexible.
  • It is less damaging on contacting load surfaces than metal slings.
  • Each sling is marked with a unique serial number for safe sling registration.
  • Year/Month calendar printed on the label where next inspection date can be marked or punched.
  • Standard: EN 1492-1, Safety factor: 7:1
  • RFID(Radio Frequency Identification) Tag

RFID tag

Item No. Colour coded According to EN1492-1 Width(mm) Working Load Limit Product Code
Straight Lift Choked Lift β
0˚-7˚ 7˚-45˚ 45˚-60˚
M=1 0.8 M=2 M=1.4 M=1
WS01-03001 WLL 1T 30/50 1 0.8 2 1.4 1 301003001
WS01-06002 WLL 2T 60 2 1.6 4 2.8 2 301006002
WS01-09003 WLL 3T 90 3 2.4 6 4.2 3 301009003
WS01-12004 WLL 4T 120 4 3.2 8 5.6 4 301012004
WS01-15005 WLL 5T 150 5 4 10 7 5 301015005
WS01-18006 WLL 6T 180 6 4.8 12 8.4 6 301018006
WS01-24008 WLL8T 240 8 6.4 16 11.2 8 301024008
WS01-30010 WLL10T 300 10 8 20 14 10 301030010
WS01-30012 WLL 12T 300 12 9.6 24 16.8 12 301030012
Safe Use of Flat Woven Webbing Sling
H-Lift Flat Woven Webbing Sling to EN 1492-1
2t flat webbing sling en 1492-1
3000kg duplex web sling safety factor 7:1
H-Lift lifting webbing tape

• Store and handle webbing slings correctly.
• Inspect webbing slings and accessories before use and before placing into storage.
• Follow safe slinging practices, as given overleaf.
• Position the bight for choke lift at 120° (natural angle).
• Position the sling so that the load is uniformly spread over its width and protect the sling from sharp edges.
• Apply the correct mode factor for the slinging arrangement.

• Attempt to shorten, knot or tie webbing slings.
• Expose webbing slings to direct heat or flames.
• Use webbing slings at temperatures above 80°C or below 0°C without consulting the supplier.
• Expose webbing slings to chemicals without consulting the supplier.
• Shock load webbing slings.
• Use webbing slings which are cut or which have loose or damaged stitching.
• Use a sling with a missing/damaged label or illegible markings

Selecting the Correct Sling
Webbing slings are available in a range of materials and sizes in single leg and endless sling forms. Select the slings to be used and plan the lift taking the following into account:
Material - polyester identified by a blue label is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) identified by a green label is virtually immune to alkalis but is damaged by acids; and polypropylene identified by a brown label is little affected by acids or alkalis but is damaged by some solvents, tars and paints and therefore, suitable for appliances where the highest resistance to chemicals other then solvents is required.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method.
For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions.
For flat woven slings made to BS EN 1492-1:2000 + A1: 2008 *
Polyester And Polyamide -40ºC to 100º
Polypropylene -40ºC to 80ºC
Ranges vary in a chemical environment, in which case the advice of the manufacturer or supplier should be sought.
If the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°.
If abrasion, heat generated by friction or cutting from edges or corners are likely select a sling fitted with protective sleeves and/or use suitable packing.
Slings with grade 8 fittings and multi-leg slings with grade 8 master links should not be used in acidic conditions. Contact with acids or acidic fumes causes embrittlement to grade 8 materials. If exposure to chemicals is likely, the manufacturer or supplier should be consulted.


Storing and Handling Webbing Slings
Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried naturally. Never force dry webbing slings.
Store webbing slings hung from non-rusting pegs which allow the free circulation of air.
The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight.
Do not alter, modify or repair a webbing sling but refer such matters to a Competent Person.


NOTE: The material from which the sling is manufactured may be identified by the colour of the label or printing on the label: Polyester =Blue, Polyamide (Nylon) = Green, Polypropylene = Brown and the sling may also be dyed with a colour code to indicate SWL.


Using Webbing Slings Safely
Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective slings or accessories.
Check the correct engagement with fittings and appliances, ensure smooth radii are formed, do not twist or cross slings and do not overcrowd fittings.
Position the sling so that the load is uniformly spread over its width.
Position the bight for a choke lift at the natural (120°) angle to prevent friction being generated.
Ensure that stitching is in the standing part of the sling away from hooks and other fittings.
Take the load steadily and avoid shock loads.
Do not leave suspended loads unattended. In an emergency cordon off the area.

In-service Inspection and Maintenance
Maintenance requirements are minimal. Webbing slings may be cleaned with clear water. Remember weak chemical solutions will become increasingly stronger by evaporation.
Before each use inspect webbing slings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged, chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation; damaged or deformed end fittings.
