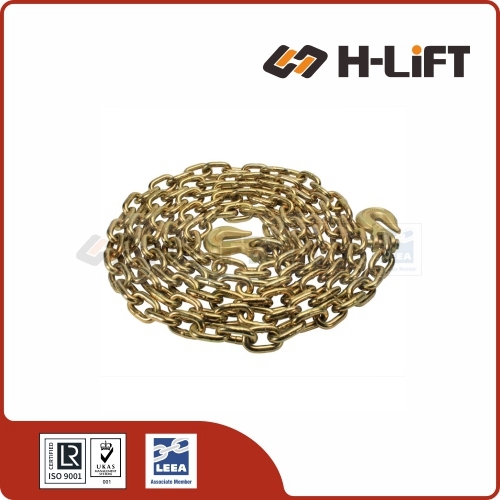

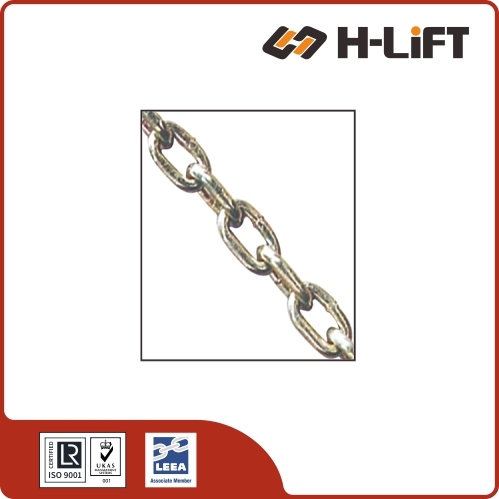

H-Lift Transport Chain NACM84/90 (G70)
Grade 70 transport chain is used to tie down loads on over-the-road equipment.
Grade 70 chain is the highest grade you can purchase within the carbon chain category. Like Grade 30 and 43 chain, it is not recommended for overhead lifting.
Unlike Grade 30 and 43 chain, it is heat-treated, making it more resistant to wear and abrasion as it is a harder material with a higher strength-to-weight ratio.
Also known as “Transport Chain,” Grade 70 chain is most commonly used for tie down and load securement applications for trucking and other cargo. While Grade 30 and 43 chain can also be used for load securement, Grade 70 chain provides a stronger, more durable option with a much higher strength-to-weight ratio.
Grade 70 chain is most commonly manufactured with a gold-colored finish and is recognized throughout the industry as such. When trained properly, this can be an easy identifier for riggers to make sure they avoid using it for lifting applications.
Item No. | Nominal Size | Working Load Limit(max) | Proof Load(min) | Breaking Load(min) | Weight per 100' | Inside Length(max) | Inside Width(mm) | Product Code | |||||||
inch | mm | kg | lbs | kN | lbs | kN | lbs | kg | lbs | inch | mm | inch | mm | ||
C907007 | 1/4 | 7.0 | 1,430 | 3,150 | 27.0 | 6,100 | 53.9 | 12,100 | 30.0 | 66.1 | 1.24 | 31.5 | 0.38 | 9.8 | 708010707 |
C907008 | 5/16 | 8.0 | 2,130 | 4,700 | 41.6 | 9,400 | 83.5 | 18,800 | 47.0 | 104.0 | 1.29 | 32.8 | 0.44 | 11.2 | 708010708 |
C907010 | 3/8 | 10.0 | 2,990 | 6,600 | 55.0 | 12,400 | 110.0 | 24,700 | 64.5 | 142.0 | 1.38 | 35.0 | 0.55 | 14.0 | 708010710 |
