Description

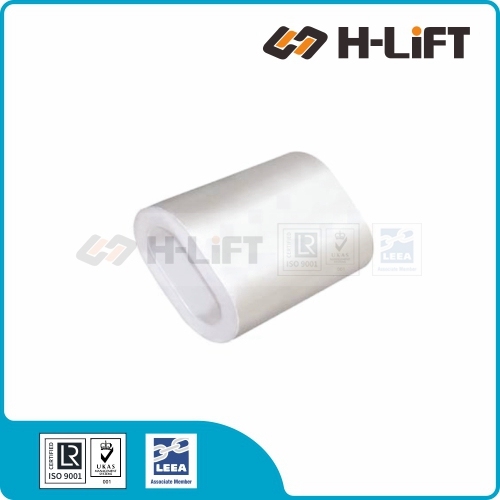

Aluminium Oval Sleeves

Aluminium ferrules provide the perfect way to secure a steel wire rope fitting in place with a tight compression fit. Size of the ferrule must be compatible to the diameter of the wire rope.

Note: aluminium sleeves are not recommended when using stainless steel cable, use zinc plated or copper sleeves instead.

Aluminium Oval Sleeves

Item No.	Size	Dimension(inch)					Weight	Product Code
Item No.	inch	A	B	C	D	L	lbs/100Pcs	Product Code
WRFAO0104	1/4"	19/64	19/32	17/32	27/32	1	2.3	6060030104
WRFAO0516	5/16"	3/8	3/4	21/32	1-1/32	1-17/84	4.3	6060030516
WRFAO0308	3/8"	7/16	27/32	3/4	1-5/32	1-3/8	5.3	6060030308
WRFAO0716	7/16"	1/2	1	29/32	1-13/32	1-23/32	11	6060030716
WRFAO0102	1/2"	19/32	1-11/64	1-1/32	1-5/8	1-15/16	16.5	6060030102
WRFAO0916	9/16"	23/32	1-3/8	1-7/32	1-57/64	2-7/32	22	6060030916
WRFAO0508	5/8"	3/4	1-1/2	1-3/8	2-3/32	2-1/2	32	6060030508
WRFAO0304	3/4"	53/64	1-11/16	1-1/2	2-3/8	2-7/8	52	6060030304
WRFAO0708	7/8"	61/64	1-7/8	1-11/16	2-5/8	3	67	6060030708
WRFAO1000	1"	1-3/32	2-7/32	1-31/32	3-3/32	3-3/4	125	6060031000
WRFAO1108	1-1/8"	1-9/32	2-9/16	2-5/16	3-19/32	4-9/32	172	6060031108
WRFAO1104	1-1/4"	1-13/32	2-25/32	2-1/2	3-7/8	4-7/16	214	6060031104
WRFAO1102	1-1/2"	1-21/32	3-19/64	3-1/8	4-3/4	5-35/64	390	6060031102
