2-Leg or Double Leg Chain Sling

Item No.: 5030012
H-Lift 2 leg chain or double leg slings are suitable for lifting objects that require to be lifted by two corners and can be fitted with chain adjuster to alter the lengths.
It comes complete with safety locking lifting hooks to suit the lifting capacity
Description Safe Use of Chain Sling
Description

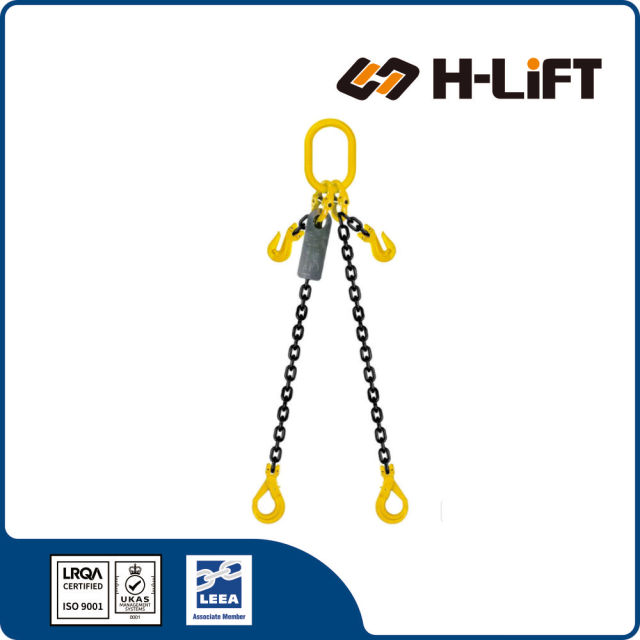

H-Lift 2-Leg or Double Leg Chain Sling

Alloy chain slings are designed for overhead lifting and offer unmatched durability. They provide excellent performance in harsh environments. Grade 80(T) Chain is manufactured from heat treated alloy steel, and is ideal for heavy duty lifting applications.

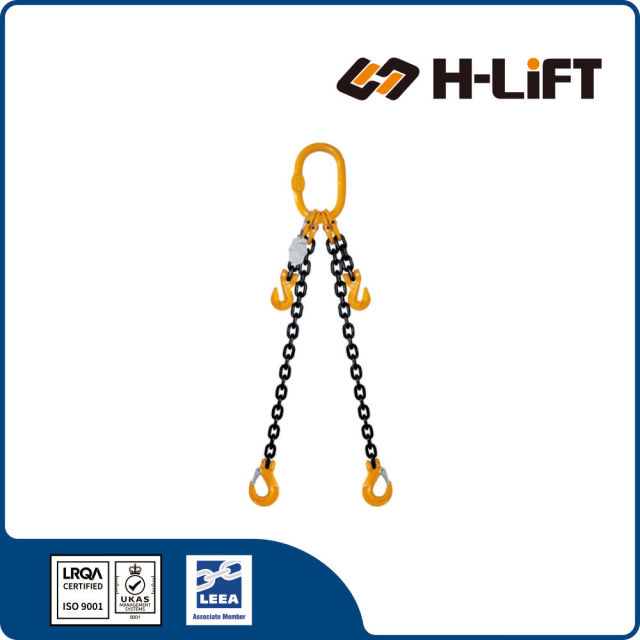

Available in lengths up to 8 metres and adjustable by means of grab hooks, our grade 80 chain slings are supplied with either clevis self-locking hooks or clevis sling hook as terminal fittings, alternative fittings are also available.

Extreme care should be taken when using the Grade 80 Chain Slings in close proximity of high temperature.

Alloy Grade 80 slings should not be used in acidic or lyes solutions nor in any other corrosive environment.

The assemblies include a load plate

Finish: Powder coated

Safety factor 4 : 1

Standard: EN 818-4

The last two numbers of the product code refer to the chain size, when ordering, e.g. a 2-leg assembly with a 10mm chain and a safety hook, the product code is 503001210. If you want to include cradle eye grab hooks in the assembly, the product code is 503002210

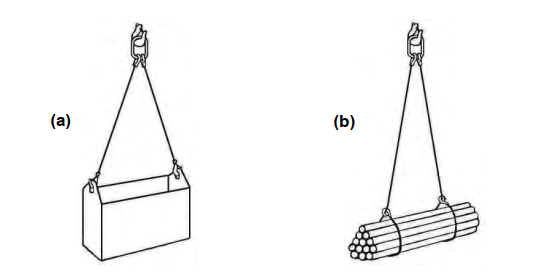

2-leg chain sling
Chain Size WLL/ton Clevis Self Locking Hook Clevis Self Locking Hook + Cradle Eye Grab Hook Clevis Sling Hook Clevis Sling Hook + Cradle Eye Grab Hook
mm 0-45°
chain angle
45-60°
chain angle
6 1.6 1.12 503001206 503002206 503003206 503004206
7 2.12 1.5 503001207 503002207 503003207 503004207
8 2.8 2 503001208 503002208 503003208 503004208
10 4.25 3.15 503001210 503002210 503003210 503004210
13 7.5 5.3 503001213 503002213 503003213 503004213
16 11.2 8 503001216 503002216 503003216 503004216
18 14 10 503001218 503002218 503003218 503004218
20 17 12.5 503001220 503002220 503003220 503004220
22 21.2 15 503001222 503002222 503003222 503004222
26 30 21.2 503001226 503002226 503003226 503004226
32 45 31.5 503001232 503002232 503003232 503004232
Safe Use of Chain Sling

ALWAYS:
• Store and handle chain slings correctly.
• Inspect chain slings and accessories before use and before placing into storage.
• Follow safe slinging practices, as given overleaf.
• Fit slings carefully, protect them from sharp edges and position hooks to face outward from the load.
• Apply the correct mode factor for the slinging arrangement.
• Back hook free legs onto the master link.


NEVER:
• Attempt to shorten a sling leg other than by means of an integral chain clutch.
• Force, hammer or wedge chain slings or their fittings into position.
• Lift on the point of a hook.
• Expose chain slings to chemicals, particularly acidic conditions, without consulting the supplier.
• Use chain slings at temperatures above 200°C or below minus 40°C without consulting the supplier.
• Shock load chain slings.


Selecting the Correct Sling
Chain slings are available in a range of material grades, sizes and assemblies. Select the slings to be used and plan the lift taking the following into account:
Type of sling to be used - endless, single, two, three or four leg.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method.
If adjustment of the leg length is necessary select a sling with chain shortening clutches.
For use at temperatures exceeding 200°C or below minus 40°C refer to the suppliers instructions.
Where slings may come into contact with chemicals, particularly acids or acidic fumes, consult the supplier.
In the case of multi-leg slings the angle between the legs should not be less than 30° or exceed the maximum marked.
Multi-leg slings exert a gripping force on the load which increases as the angle between the legs increases and this must be taken into account.


Storing and Handling Chain Slings
Never return damaged or contaminated slings to storage. They should be dry, clean and protected from corrosion.

Store chain slings on a rack and not lying on the ground. The storage area should be dry, clean and free of any contaminates which may harm the sling.
Do not alter, modify or repair a chain sling but refer such matters to a Competent Person.
Never galvanise or subject a chain sling to any other plating process without the express approval of the supplier.


Using Chain Slings Safely
Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective slings or accessories.
Do not force, hammer or wedge chain slings or fittings into position; they must fit freely. Check the correct engagement of fittings and appliances.
Position hooks of multi-leg slings facing outward from the load. Do not lift on the point of the hook and ensure that the chain is not twisted or knotted.
Back hook free legs to the master link to avoid lashing legs which might accidentally become engaged or otherwise become a hazard.
Take the load steadily and avoid shock loads.
Do not leave suspended loads unattended. In an emergency cordon off the area.


In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep chain slings clean and protect from corrosion.
Regularly inspect chain slings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination: illegible markings; distortion of fittings; worn, stretched, bent or twisted links; ineffective safety catches; cuts, nicks, gouges, cracks, corrosion, heat discolouration or any other defect apparent to the chain or fittings.
