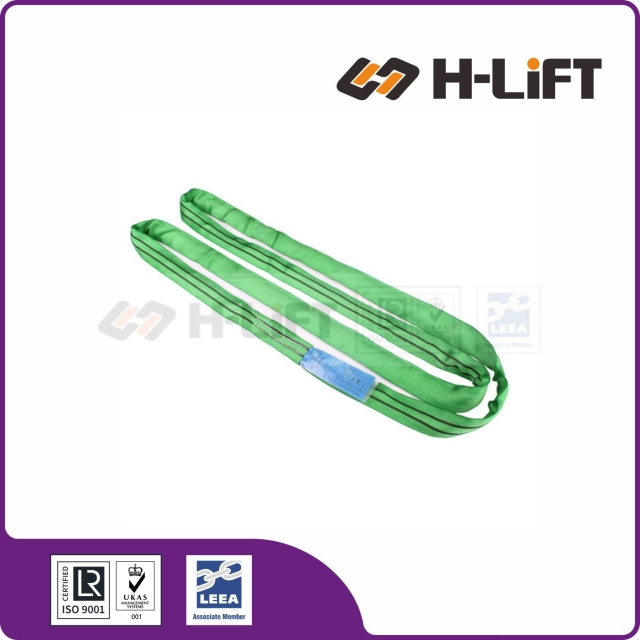

2t Polyester Round Sling EN 1492-2

Item No.: 31010002
H-Lift 2t polyester round sling or endless roundsling is manufactured to EN 1492-2, green colour.
A polyester round sling is a lifting sling that is made by wrapping a protective polyester jacket around a series of tough load-bearing polyester yarns.
Description Safe Use of Round Sling
Description
H-Lift Polyester Round Sling to EN1492-2
Round slings are an all-purpose lifting sling enabling a strong and non-damaging lift of a load. They are extremely light weight and flexible in multiple directions, allowing easy and quick manipulation even when fragile loads are being lifted.
  • A roundsling is a sling comprising a core enclosed in a protective cover.
  • Made from high-tenacity polyester yarn (PES).
  • Roundsling sleeve is made by extra strong PU-impregnated webbing.
  • Colour coded for easy capacity recognition. Black roundslings are also available.
  • Capacity stripes: each stripe is equal to 1 tonne capacity.
  • Low elongation, extremely lightweight, flexible and pliable.
  • It is less damaging on contacting load surfaces than metal slings.
  • Standard: EN 1492-2
  • Safety Factor: 7:1
  • Roundsling with RFID chip available upon request.
2t Polyester Round Sling EN1492-2
Item No. Colour coded According to EN1492-2 Working Load Limit  Product Code
Straight Lift Choked Lift β
0˚-7˚ 7˚-45˚ 45˚-60˚ Up to 45˚ 45˚-60˚
1 0.8 2 1.4 1 0.7 0.5
RS01-001 WLL 1T 1 0.8 2 1.4 1 0.7 0.5 307001001
RS01-002 WLL 2T 2 1.6 4 2.8 2 1.4 1 307001002
RS01-003 WLL 3T 3 2.4 6 4.2 3 2.1 1.5 307001003
RS01-004 WLL 4T 4 3.2 8 5.6 4 2.8 2 307001004
RS01-005 WLL 5T 5 4 10 7 5 3.5 2.5 307001005
RS01-006 WLL 6T 6 4.8 12 8.4 6 4.2 3 307001006
RS01-008 WLL 8T 8 6.4 16 11.2 8 5.6 4 307001008
RS01-010 WLL 10T 10 8 20 14 10 7 5 307001010
RS01-012 WLL 12T 12 9.6 24 16.8 12 8.4 6 307001012
RS01-015 WLL 15T 15 12 30 21 15 10.5 7.5 307001015
RS01-020 WLL 20T 20 16 40 28 20 14 10 307001020
RS01-025 WLL 25T 25 20 50 35 25 17.5 12.5 307001025
RS01-030 WLL 30T 30 24 60 42 30 21 15 307001030
RS01-035 WLL 35T 35 28 70 49 35 24.5 17.5 307001035
RS01-040 WLL 40T 40 32 80 56 40 28 20 307001040
RS01-045 WLL 45T 45 36 90 63 45 31.5 22.5 307001045
RS01-050 WLL 50T 50 40 100 70 50 35 25 307001050
RS01-060 WLL 60T 60 48 120 84 60 42 30 307001060
RS01-080 WLL 80T 80 64 160 112 80 56 40 307001080
RS01-100 WLL 100T 100 80 200 140 100 70 50 307001100
RS01-120 WLL 120T 120 96 240 168 120 84 60 307001120
RS01-200 WLL 200T 200 160 400 280 200 140 100 307001200
Safe Use of Round Sling
 ALWAYS

• Store and handle roundslings correctly.
• Inspect roundslings and accessories before use and before placing into storage.
• Follow safe slinging practices, as given overleaf.
• Position the bight for choke lift at 120°(natural angle).
• Apply correct mode factor for the slinging arrangement.
• Use protection (to avoid cutting, friction etc) and fittings which allow the sling to form smooth radii.

NEVER:
• Attempt to shorten, knot or tie roundslings.
• Expose roundslings to direct heat or flames.
• Use roundslings at temperatures above 80°C or below 0°C without consulting the supplier.
• Expose roundslings to chemicals without consulting the supplier.
• Shock load roundslings.
• Use roundslings with cut or damaged outer covers.
• Use a sling with a missing/damaged label or illegible markings

Selecting the Correct Sling
Roundslings are available in a range of materials and sizes in endless sling form. Select the slings to be used and plan the lift taking the following into account:
Material – polyester, identified by a blue label, is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) identified by a green label, is virtually immune to alkalis but is damaged by acids; polypropylene, identified by a brown label, is little affected by acids or alkalis but is damaged by some solvents, tars and paints and therefore suitable for appliances where the highest resistance to chemicals other than solvents is required.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method.
For use at temperatures exceeding 80°C or below 0°C refer to the supplier's instructions.
For round slings made to BS EN 1492-2:2000 + A1: 2008 * Polyester and Polymide -40ºC to 100ºC Proypropylene -40ºC to 80ºC

Ranges vary in a chemical environment, in which case the advice of the manufacturer or supplier should be sought.
If the slings are to be used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°.
If abrasion, heat generated by friction or cutting from edges or corners which may damage the sling are likely, select a sling fitted with additional protective sleeves and/or use suitable packing.
Slings with grade 8 fittings and multi-leg master links should not be used in acidic conditions. Contact with acids or acidic fumes causes embrittlement to grade 8 materials. If exposure to chemicals is likely, the manufacturer or supplier should be consulted.

Storing and Handling Roundslings
Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried naturally. Never force dry roundslings.
Store roundslings by hanging on non-rusting pegs which allow the free circulation of air.
The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight.
Do not alter, modify or repair a roundsling but refer such matters to a Competent Person.



NOTE: The material from which the roundsling is manufactured may be identified by the colour of the label or printing on the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown. The outer sleeve of the sling will also be colour coded to indicate the SWL in straight pull.

Using Roundslings Safely

Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective slings or accessories.
Check for correct engagement with fittings and appliances, ensuring smooth radii are formed which allow the sling to assume its naturally flattened form under load. Do not overcrowd fittings.
Position the bight for a choke lift at the natural (120°) angle to prevent friction from being generated.
Keep labels away from hooks and fittings.
Take the load steadily and avoid shock loads.
Do not leave suspended loads unattended. In an emergency cordon off the area.

In-service Inspection and Maintenance
Maintenance requirements are minimal. Roundslings may be cleaned with clear water. Remember weak chemical solutions will become increasingly stronger by evaporation
Before each use inspect roundslings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged or cut outer cover; damaged stitching; exposed inner core; heat damage; burns; chemical damage.
