4-Leg or Quadruple Leg Chain Sling

Item No.: 5030014

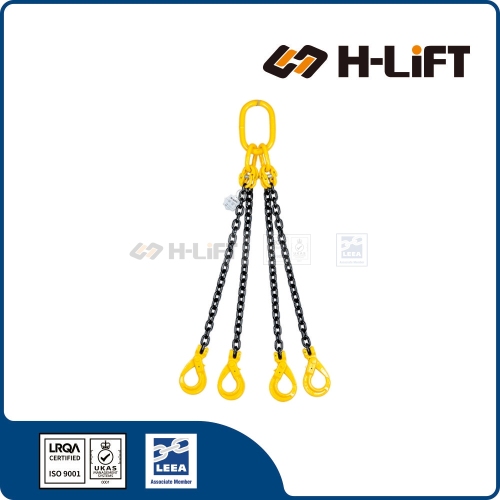

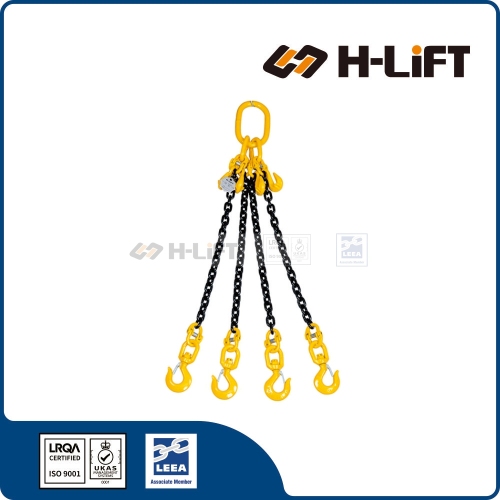

A four leg chain sling comprises four legs permanently connected at their upper ends by a suitable link assembly and marked as an assembly. Four leg slings are mainly used to handle square or rectangular (four cornered) loads.
Description 4 Leg Chain Sling Grade 8 Chain Sling EN 818-4
Description
H-Lift 4-Leg or Quadruple Leg Chain Sling
  • Alloy chain slings are designed for overhead lifting and offer unmatched durability. They provide excellent performance in harsh environments. Grade 80(T) Chain is manufactured from heat treated alloy steel, and is ideal for heavy duty lifting applications.
  • Available in lengths up to 8 metres and adjustable by means of grab hooks, our grade 80 chain slings are supplied with either clevis self-locking hooks or clevis sling hook as terminal fittings, alternaative fittings are also available.
  • Extreme care should be taken when using the Grade 80 Chain Slings in close proximity of high temperature.
  • Alloy Grade 80 slings should not be used in acidic or lyes solutions nor in any other corrosive environment.
  • The assemblies include a load plate
  • Finish: Powder coated
  • Safety Factor: 4:1
  • Standard: EN 818-4
  • The last two numbers of the product code refer to the chain size, when ordering, e.g. a 4-leg assembly with a 10mm chain and a safety hook, the product code is 503001410. If you want to include cradle eye grab hooks in the assembly, the product code is 503002410.
Grade 80 Chain Sling
Grade 80 Alloy Chain Sling
G80 Lifting Chain Sling

Chain Size WLL/ton Clevis Self Locking Hook Clevis Self Locking Hook + Cradle Eye Grab Hook Clevis Sling Hook Clevis Sling Hook + Cradle Eye Grab Hook
mm 0-45°
chain angle
45-60°
chain angle
6 2.36 1.7 503001406 503002406 503003406 503004406
7 3.15 2.24 503001407 503002407 503003407 503004407
8 4.25 3 503001408 503002408 503003408 503004408
10 6.7 4.75 503001410 503002410 503003410 503004410
13 11.2 8 503001413 503002413 503003413 503004413
16 17 11.8 503001416 503002416 503003416 503004416
18 21.2 15 503001418 503002418 503003418 503004418
20 26.5 19 503001420 503002420 503003420 503004420
22 31.5 22.4 503001422 503002422 503003422 503004422
26 45 31.5 503001426 503002426 503003426 503004426
32 67 47.5 503001432 503002432 503003432 503004432
4 Leg Chain Sling

A 4-leg chain sling is a type of lifting sling commonly used in industrial and construction settings to lift and transport heavy loads. It consists of four individual chains that are attached to a master link or a central ring at the top. The other ends of the chains are fitted with hooks or other attachments to secure the load.


The primary advantage of a 4-leg chain sling is its ability to distribute the load evenly across four points, as opposed to just two points in a 2-leg sling. This even distribution helps to reduce stress on each individual chain and on the load being lifted. As a result, 4-leg chain slings are well-suited for lifting irregularly shaped or sensitive loads, as well as loads that are prone to tilting or spinning during lifting.

A four leg sling comprises four legs permanently connected at their upper ends by a suitable link assembly and marked as an assembly. Four leg slings are mainly used to handle square or rectangular (four cornered) loads.

The key characteristics that make a 4-leg chain sling different from other types of slings are:

  • Number of Legs: As the name suggests, a 4-leg chain sling has four individual chains, whereas other slings might have two or even more legs.
  • Load Distribution: The four-leg configuration allows for better load distribution, providing increased stability during lifting operations. This feature makes it particularly useful for lifting large, unwieldy, or unevenly balanced loads.
  • Versatility: 4-leg chain slings are versatile and can be used in various lifting scenarios. They can accommodate different hitch configurations and adapt to a range of load sizes and shapes.
  • Strength and Durability: Chain slings are typically made of high-strength alloy steel, making them robust and capable of handling heavy loads in harsh environments.

4 Leg Chain Sling, H-Lift
Grade 8 Chain Sling EN 818-4
The Machinery Directive stipulates that where chain with welded links is used for lifting accessories it is to be of short line type and for the purposes of this standard this is chain having a ratio of nominal pitch to nominal size of 3:1.

This European Standard specifies the requirements related to safety, methods of rating and testing of single-, two-, three-, four-leg and endless chain slings assembled by:

a) mechanical joining devices

b) welding

using short link grade 8 medium tolerance lifting chain conforming to EN 818-2 together with the appropriate range of components of the same grade.


chain sling
assembly consisting of a chain leg or chain legs joined to upper and lower terminals for attaching loads to the hook of a crane or other lifting machine.

nominal size of chain sling

The nominal size of short link chain, in millimetres, used in the manufacture of the chain sling.

nominal grade of chain sling
For the purpose of designation in accordance with annex C, is the same as the grade of the short link chain used in the manufacture of the chain sling i.e. 8.

master link
A link forming the upper terminal of a chain by means of which the chain sling is attached to the hook of a crane or other lifting machine.

length of a leg
For a finished chain sling, is the length from the lower bearing point of the lower terminal to the upper bearing point of the upper terminal.

intermediate master link
A link used to connect one or two legs of a sling to a master link.

lower terminal
A link, hook or other device fitted at the end of a leg of a sling, remote from the master link or upper terminal.

mechanical joining device

A means of connection which does not depend on welding. It may be integral with a component or be a separate component.


joining link

A welded link fitted to the end of a chain to connect it either directly or through an intermediate link to an upper or lower terminal or intermediate master link or in the case of an endless chain sling to the other end of the chain.


intermediate link
A welded link used to form a connection between the terminal and the joining link fitted to the chain.

manufacturing proof force (MPF) of a chain sling
A force applied during manufacture as a test to the whole chain sling or a force applied as a test to a section of chain sling.

working load limit (WLL) of a chain sling
The maximum mass which a sling is authorized to sustain in general lifting service.

master link assembly
assembly consisting of a master link together with two intermediate master links.

Working Load Limits EN 818-4
