Name: AS 1138 Wire Rope Thimble
Brand: H-Lift Industries Co Ltd
SKU: 604010
Availability: InStock
Rating: 5 (1 reviews)

Home > Wire Rope, Wire Rope Sling & Components > Wire Rope Accessories > Wire Rope Thimble

Description

Australian Standard Wire Rope Thimble

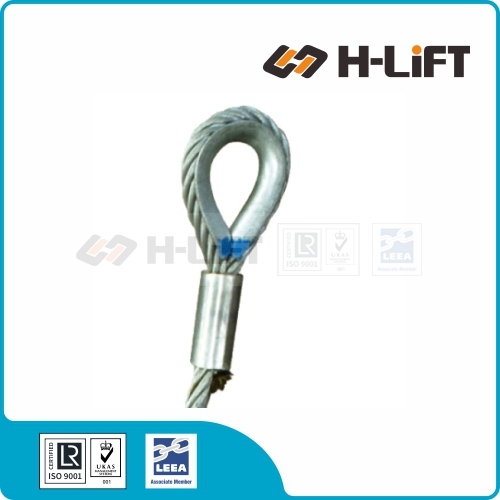

Used to reinforce the eye and protect the wire rope from damage from any lifting tackle or any other connection.

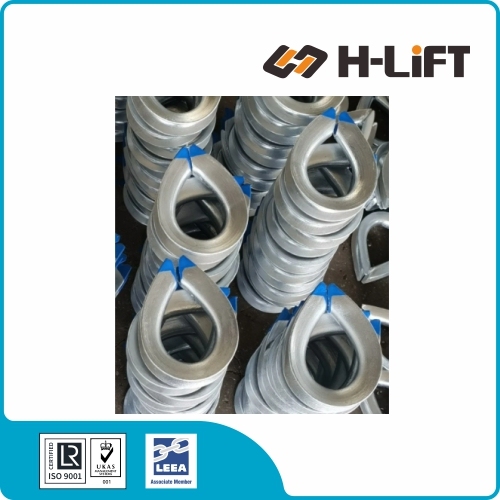

Hot dip galvanised with blue paint at the tips.
Ideal to secure loop for wire rope where needed.
Ideal for steel and fibre core wire rope.

Recommended for heavy duty applications.
Conforms to AS1138.
Made from heat treated high tensile steel material.
Sizes available are from 6mm to 64mm.
wire rope thimble AS 1138

Item No.	Size	Dimensions(mm)							Weight	Product Code
Item No.	Size	A	B	C	D	E	F	K	kg	Product Code
WRTAS006	6mm	20	34	10.5	30	48	6.5	3.5	0.04	604010006
WRTAS008	8mm	22.2	38	12.7	33.4	52	7.9	4	0.06	604010008
WRTAS010	10mm	25.4	47.6	14.3	38	64	10.3	4	0.09	604010010
WRTAS011	11mm	28.6	52	17.5	41.3	73	12.7	4.5	0.11	604010011
WRTAS012	12mm	31.7	58.8	20.6	44.5	79.4	14.3	5.5	0.16	604010012
WRTAS014	14mm	38	64	20.6	56	88	15.4	5.5	0.17	604010014
WRTAS016	16mm	41.3	74.5	22.2	58.8	95.8	15.9	7.5	0.26	604010016
WRTAS018	18mm	44.5	79.4	28.56	66.6	108	19	7	0.34	604010018
WRTAS020	20mm	50.8	92	28.6	73	124	20.6	8.3	0.45	604010020
WRTAS022	22mm	56	102	31.7	82.5	133	22.2	10	0.62	604010022
WRTAS024	24mm	64	110	33.4	92	146	25.4	8.5	0.83	604010024
WRTAS026	26mm	69.8	119	35	108	162	27	10	0.93	604010026
WRTAS030	28/30mm	76.2	133	38	112	178	28.6	10	1.30	604010030
WRTAS032	32mm	95	152	41.3	133	197	33.4	10	1.60	604010032
WRTAS036	36mm	105	175	47.6	152	228	38	13.5	2.35	604010036
WRTAS040	38/40mm	114	197	52	165	254	41.3	13.5	3.50	604010040
WRTAS044	44mm	127	228	56	178	286	50.8	19	6.20	604010044
WRTAS048	48mm	133	248	66.6	190	317	60.4	21	7.70	604010048
WRTAS038	50mm	140	257	69.8	203	330	64	20	8.00	604010050
WRTAS058	58mm	146	296	76.2	216	356	66.6	20	8.50	604010058
WRTAS064	64mm	170	300	93	255	420	75	29	17.00	604010064
