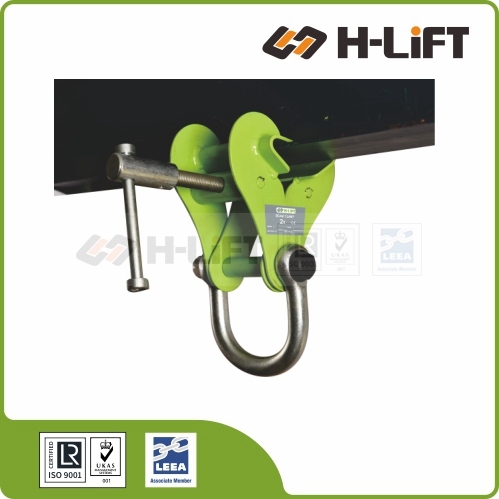

Beam Clamp with Large Shackle BCL type

Item No.: 1503
Beam clamps provide a simple and secure means of attaching a lifting equipment to beams. The main advantage of an adjustable beam clamp is the fact that it can be securely fastened to steel girders and beams without any drilling or welding.
Description Safe Use of Beam Clamp
Description
H-Lift Beam Clamp with Large Shackle, BCL type:
  • Quick and versatile rigging point for hoisting equipment.
  • Highly flexible – for lifting, pulling or as an anchor point.
  • Multidirectional adjusting screw spindle for easy attachment and safe and secure grip.
  • Beam clamp with large shackle/Adjustable Beam Clamp with Shackle can be used to an angle of 45° to the vertical. When the angle is moved away from the vertical the working load limit of the beam clamp will be reduced.
  • This clamp is fitted with a 'gusset' in both jaws of the beam clamp maximizing contact between the beam and beam clamp and increasing the grip of the beam clamp.
  • A shackle is fitted to the bottom of the beam clamp allowing an easy connection of the hoist to be attached.
  • Spindle enables quick mounting.
  • Designed to accommodate a wide range of beam width.
  • Provides super quick adjustment to most I- and H-beams.
  • Complies with the Machinery Directive 2006/42/EC

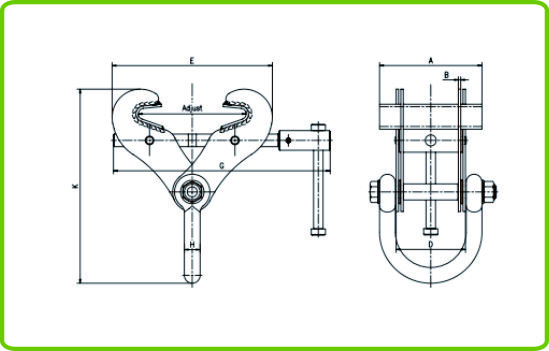

Beam Clamp with Large Shackle

Model Capacity Proof Load Adjust Beam Dimensions(mm) N.W. Product Code
t kN mm A B D Emax. Emin. G Kmax. Kmin. H kg
BCL020A 2 39.2 76-190 130 3 90 254 133 275 263 223 20 4 150302000
BCL032A 3.2 62.72 76-190 130 12 102 275 166 275 289 251 20 8 150303201
BCL032B 3.2 62.72 127-350 130 12 102 438 228 560 375 294 20 11.5 150303202
BCL040A 4 78.4 150-254 130 10 112 371 185 410 369 308 25 11 150304000
BCL050A 5 98 76-190 130 12 116 306 191 295 338 300 25 10 150305001
BCL050B 5 98 150-305 130 12 116 422 264 410 413 360 25 15 150305002
BCL060A 6 117.6 203-457 140 12 116 608 267 560 511 402 25 18.8 150306000
BCL100A 10 196 203-457 140 20 118 608 267 560 530 421 32 28 150310000
BCL150A 15 294 203-457 170 20 116.5 648 400 660 684 608 40 49.5 150315001
BCL150B 15 294 406-610 170 20 116.5 800 600 810 812 706 40 58.5 150315002



Reduction in Working Load limits when side loads are applied

Beam Clamp side loading

Angles From Vertical 0° 0° to 15° 15° to 30° 30° to 45°
Reduction Factor Nil 17% 34% 50%
Models WLL WLL WLL WLL
BCL020A 2T N/A N/A N/A
BCL032A,BCL032B 3.2T 2.66T 2.11T 1.6T
BCL040A 4T 3.3T 2.6T 2T
BCL050A,BCL050B 5T 4.1T 3.3T 2.5T
BCL060A 6T 5T 4T 3T
BCL100A 10T 8.3T 6.6T 5T
BCL150A,BCL150B 15T 12.4T 10T 7.5T

ALWAYS:
• Store and handle beam clamps correctly.
• Inspect beam clamps and accessories before use and before placing into storage.
• Ensure the supporting structure is adequate for the full load that will be imposed and suitable for the application.
• Check the clamp is of the correct profile and size, or correctly adjusted, for the beam width and that it seats correctly on the beam flange.
• Ensure the beam clamp is strong enough for the full load that will be imposed.
• Check that the clamp is directly over the centre of gravity of the load.



NEVER:
• Use beam clamps which are unidentified or uncertified for lifting applications.
• Never replace bolts, shackles etc without consulting the supplier.
• Throw or drop beam clamps.
• Use beam clamps on damaged or distorted beams.
• Force or wedge hooks of lifting appliances into the attachment eye or fitting (eg shackle).
• Obliquely load beam clamps without the authority of the supplier.



Selecting the Correct Beam Clamp
Beam clamps are available in a range of capacities and designs. They may be adjustable or of fixed size, have scissor action, screw locking or bolt clamp fixing and be suitable for temporary or permanent applications. Select the beam clamp to be used and plan the lift taking the following into account:
Type of clamp - adjustable/non-adjustable - scissor, screw or bolt action.
Capacity and beam size or range of beam sizes.
Suitability of the beam.
Type of lifting appliance to be used.
If application is temporary or permanent.


NOTE: Beam clamps are generally intended for attachment to overhead beams to act as suspension points for lifting
appliances. Some designs are suitable for attachment to the load to provide a lifting point. The supplier should be consulted for such applications which are excluded from these instructions.



Storing and Handling Beam Clamps
Never return damaged beam clamps to storage. They should be dry, clean and protected from corrosion. Where necessary fasteners should be reassembled immediately after removal from the beam.
Beam clamps should not be dropped or thrown down.



Using Beam Clamps Safely
The safe use of beam clamps will largely be governed by the requirements for the lifting appliance with which it is to be used but should take the following matters into account:
Do not use defective beam clamps, lifting appliances or accessories.
Ensure the structure from which the clamp is to be suspended is undamaged and is adequate for the full load that will be imposed. If any doubt exists consult a Competent Person to confirm suitability.
Ensure the clamp is suitable for the application, correct size and profile for the beam and seats correctly. It must not cause localised overloading.
Ensure the lifting appliance is compatible with the clamp and that hooks or other attachments fit freely into the eye, shackle etc of the clamp.
The clamp must be positioned directly over the centre of gravity of the load and the load must not be allowed to swing or impose an oblique loading.
If two clamps are to be used in tandem the use of ancillary equipment may also be necessary, eg spreader beam. Care must be taken to ensure no one clamp takes more than its SWL.



In-service Inspection and Maintenance
Beam clamps should be cleaned and any moving parts lubricated at appropriate intervals unless the suppliers specific instructions indicate otherwise.
Regularly inspect the beam clamp, in the event of the following defects refer the clamp to a Competent Person for thorough examination: wear, damage or distortion, cracks, insecure bolts etc, corrosion, illegible markings.

Safe Use of Beam Clamp

ALWAYS:
Store and handle beam clamps correctly.
Inspect beam clamps and accessories before use and before placing into storage.
Ensure the supporting structure is adequate for the full load that will be imposed and suitable for the application.
Check the clamp is of the correct profile and size, or correctly adjusted, for the beam width and that it seats correctly on the beam flange.
Ensure the beam clamp is strong enough for the full load that will be imposed.
Check that the clamp is directly over the centre of gravity of the load.



NEVER:
Use beam clamps which are unidentified or uncertified for lifting applications.
Never replace bolts, shackles etc without consulting the supplier.
Throw or drop beam clamps.
Use beam clamps on damaged or distorted beams.
Force or wedge hooks of lifting appliances into the attachment eye or fitting (eg shackle).
Obliquely load beam clamps without the authority of the supplier.



Selecting the Correct Beam Clamp
Beam clamps are available in a range of capacities and designs. They may be adjustable or of fixed size, have scissor action, screw locking or bolt clamp fixing and be suitable for temporary or permanent applications. Select the beam clamp to be used and plan the lift taking the following into account:
Type of clamp - adjustable/non-adjustable - scissor, screw or bolt action.
Capacity and beam size or range of beam sizes.
Suitability of the beam.
Type of lifting appliance to be used.
If application is temporary or permanent.


NOTE: Beam clamps are generally intended for attachment to overhead beams to act as suspension points for lifting
appliances. Some designs are suitable for attachment to the load to provide a lifting point. The supplier should be consulted for such applications which are excluded from these instructions.



Storing and Handling Beam Clamps
Never return damaged beam clamps to storage. They should be dry, clean and protected from corrosion. Where necessary fasteners should be reassembled immediately after removal from the beam.
Beam clamps should not be dropped or thrown down.



Using Beam Clamps Safely
The safe use of beam clamps will largely be governed by the requirements for the lifting appliance with which it is to be used but should take the following matters into account:
Do not use defective beam clamps, lifting appliances or accessories.
Ensure the structure from which the clamp is to be suspended is undamaged and is adequate for the full load that will be imposed. If any doubt exists consult a Competent Person to confirm suitability.
Ensure the clamp is suitable for the application, correct size and profile for the beam and seats correctly. It must not cause localised overloading.
Ensure the lifting appliance is compatible with the clamp and that hooks or other attachments fit freely into the eye, shackle etc of the clamp.
The clamp must be positioned directly over the centre of gravity of the load and the load must not be allowed to swing or impose an oblique loading.
If two clamps are to be used in tandem the use of ancillary equipment may also be necessary, eg spreader beam. Care must be taken to ensure no one clamp takes more than its SWL.



In-service Inspection and Maintenance
Beam clamps should be cleaned and any moving parts lubricated at appropriate intervals unless the suppliers specific instructions indicate otherwise.
Regularly inspect the beam clamp, in the event of the following defects refer the clamp to a Competent Person for thorough examination: wear, damage or distortion, cracks, insecure bolts etc, corrosion, illegible markings.
