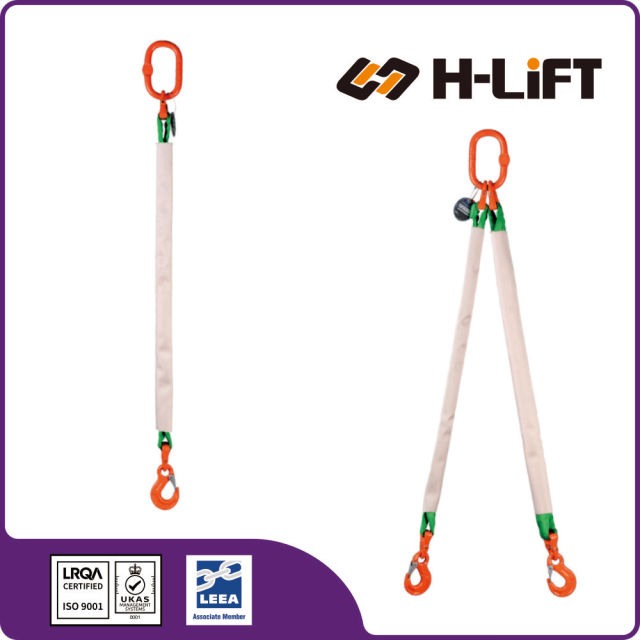

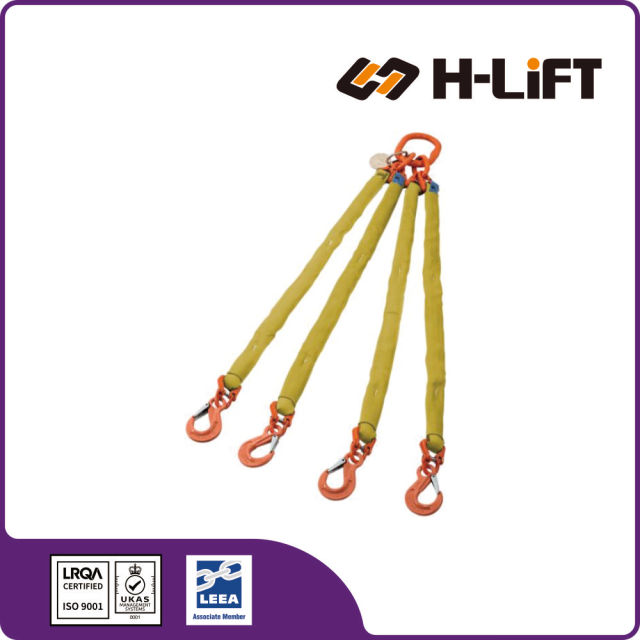

The Bridle Round Sling is a highly adaptable, multi-leg textile lifting assembly designed specifically to handle loads requiring multiple attachment points, ensuring superior load balance and stability.
| Type | Weight | Surface Protection | Best Application |
|---|---|---|---|
| Bridle Round Sling Current Item |
Ultra Light | Excellent (No scratches) |
Fragile loads, boats, painted equipment, reducing worker fatigue. |
| Grade 80 Chain Sling Heavy Duty |
Heavy | Low (Can damage loads) |
Rough environments, high heat, sharp edges, extreme durability. |
| Item No. | Illustration | WLL (tonnes) | Product Code | |
|---|---|---|---|---|
| Vertical | Choked | |||
| 0-45° | 45-60° | |||
| RSA-1-1 |  |
1 | / | 308001010 |
| RSA-1-2 | 2 | / | 308001020 | |
| RSA-1-3 | 3 | / | 308001030 | |
| RSA-1-5 | 5 | / | 308001050 | |
| Item No. | Illustration | WLL (tonnes) @ Lifting Angle β | Product Code | |
|---|---|---|---|---|
| 0-45° | 45-60° | |||
| RSA-2-1 |  |
1.4 | 1 | 308002014 |
| RSA-2-2 | 2.8 | 2 | 308002028 | |
| RSA-2-3 | 4.2 | 3 | 308002042 | |
| RSA-2-5 | 7 | 5 | 308002070 | |
| Item No. | Illustration | WLL (tonnes) @ Lifting Angle β | Product Code | |
|---|---|---|---|---|
| 0-45° | 45-60° | |||
| RSA-3-1 |  |
2.1 | 1.5 | 308003021 |
| RSA-3-2 | 4.2 | 3 | 308003042 | |
| RSA-3-3 | 6.3 | 4.5 | 308003063 | |
| RSA-3-5 | 10.5 | 7.5 | 308003105 | |
| Item No. | Illustration | WLL (tonnes) @ Lifting Angle β | Product Code | |
|---|---|---|---|---|
| 0-45° | 45-60° | |||
| RSA-4-1 |  |
2.1 | 1.5 | 308004021 |
| RSA-4-2 | 4.2 | 3 | 308004042 | |
| RSA-4-3 | 6.3 | 4.5 | 308004063 | |
| RSA-4-5 | 10.5 | 7.5 | 308004105 | |
