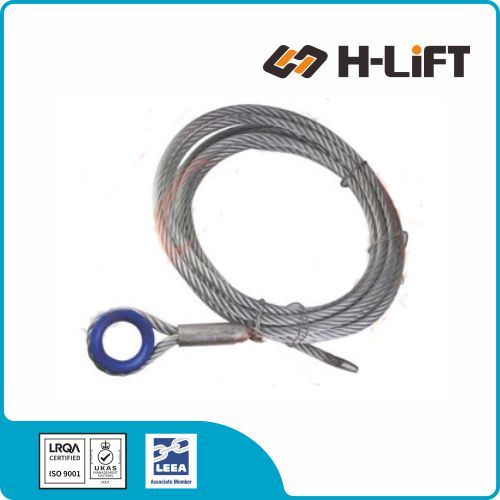

The container steel wire rope are preferably used on trucks and are specially designed wire ropes made with solid round thimbles at one end and plain wire at the other end for mounting in the truck's winchdrum.

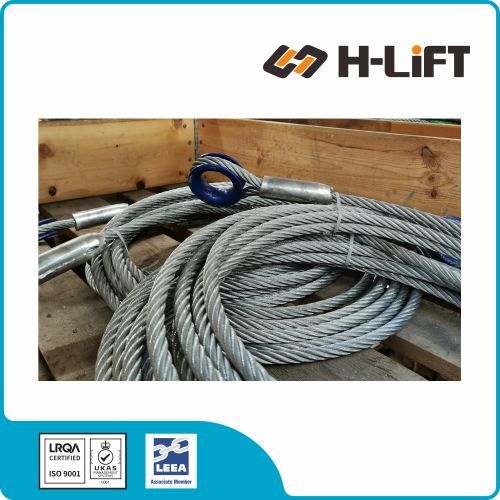

Container wire rope in 13mm, 14mm, and 16mm diameters with a solid round thimble at one end (for captive eye formation) and a plain/unfinished wire end at the other. This design is commonly specified for container tie-downs, lashings, and general rigging where the round thimble keeps the rope secured even if the thimble is damaged, thus providing extra safety in non-lifting applications.
Specialized Design: Engineered specifically for truck winches and container handling systems (e.g., skip lorries, roll-off trucks).
Solid Round Thimble: Features a heavy-duty Solid Round Thimble at one end to form a captive eye, preventing the rope from detaching even under heavy strain or thimble damage.
Plain End Termination: The other end is left plain (unfinished) for easy mounting and threading into the truck's winch drum.
Durable Construction: Made from 6x36 + IWRC (Independent Wire Rope Core) steel wire rope, offering high resistance to crushing and abrasion.
Corrosion Resistance: Fully Galvanized surface treatment to withstand harsh outdoor weather and road salts.
Standard Sizes: Available in popular diameters: 13mm, 14mm, and 16mm, with standard lengths from 9m to 12m.
Usage Warning: Strictly designed for lashing, towing, and securing applications. Not for overhead lifting.
Q: What is the purpose of the solid round thimble?
A: The solid round thimble provides a robust, wear-resistant eye that prevents the wire rope from chafing against the hook or connecting pin. Unlike standard teardrop thimbles, the solid round shape offers superior durability for heavy dragging and pulling.
Q: Can this rope be used for overhead lifting?
A: No. This product is designed for pulling, towing, and securing containers on trucks. It is not rated for overhead lifting operations.
⚠️
Important Safety Notice
This container wire rope is designed exclusively for truck winching, towing, and securing applications. It must NOT be used for overhead lifting operations. Always follow manufacturer guidelines and local safety regulations.
Technical Specifications
Construction
6x36
+ IWRC Steel Core
Diameter Range
13-16mm
Standard truck sizes
Length Options
9-12m
Custom lengths available
Surface Finish
Galvanized
Corrosion resistant
End Configuration
One Solid Round Thimble + One Plain End
Core Type
IWRC (Independent Wire Rope Core)
Primary Use
Container Handling, Skip Lorries, Roll-off Trucks
Resistance Features
High Crushing & Abrasion Resistance
Application & Usage
The container steel wire rope is preferably used on trucks and is a specially designed wire rope made with a solid round thimble at one end and plain wire at the other end for mounting in the truck's winch drum. This configuration ensures secure attachment to the hook while allowing easy installation and replacement on the winch system. Ideal for daily container handling operations in logistics, construction, and waste management industries.
Wire Rope Slings
Safe Usage, Selection & Inspection Guide
What are Wire Rope Slings?
A wire rope sling is a type of lifting sling made of wire rope that is used to hoist heavy loads in a variety of industries, including construction, shipping, and manufacturing. It is made up of several individual strands of wire that are twisted together to form a strong, flexible rope. The wire rope sling is designed to distribute the weight of the load evenly, making it easier to lift and move.
Wire rope slings come in different types, including single-leg slings, double-leg slings, and multi-leg slings, depending on the number of legs or branches that are attached to the load. They are also available in different configurations, such as choker, basket, or vertical hitch, which affect their lifting capacity and application.
Wire rope slings are highly durable and resistant to abrasion, making them suitable for heavy lifting applications that require a high level of strength and durability. However, they should be inspected regularly for signs of wear and tear, and should only be used by trained professionals who understand their safe usage and handling procedures.
ALWAYS
Store and handle wire rope slings correctly.
Inspect wire rope slings and accessories before use and before placing into storage.
Follow safe slinging practices, as given overleaf.
Fit slings carefully, protect them from sharp edges and position hooks to face outward from the load.
Apply the correct mode factor for the slinging arrangement.
Back hook free legs to the master link.
NEVER
Attempt to shorten, knot or tie wire rope slings.
Force, hammer or wedge slings or their fittings into position.
Lift on the point of the hook.
Use wire rope slings in acidic conditions without consulting the supplier.
Use wire rope slings at temperatures above 100°C or below minus 40°C without consulting the supplier.
Shock load wire rope slings.
Selecting the Correct Sling
Wire rope slings are available in a range of sizes and assemblies. Select the slings to be used and plan the lift taking the following into account:
Type of sling to be used - endless, single, two, three or four leg.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method.
For use at temperatures exceeding 100°C or below minus 40°C refer to the supplier's instructions.
Where slings may come into contact with acids or chemicals consult the supplier.
In the case of multi-leg slings the angle between the legs should not be less than 30° or exceed the maximum marked.
Multi-leg slings exert a gripping force on the load which must be taken into account; this increases as the angle between the legs increases.
Due to the possibility of sparking, the use of aluminium is restricted in certain classified atmospheres, so ensure the ferrule is suitable for such conditions.
Important Temperature Considerations
Always consult the supplier before using wire rope slings at extreme temperatures (above 100°C or below -40°C) or in environments where they may contact acids or chemicals.
Storing and Handling Wire Rope Slings
Never return damaged or contaminated slings to storage. They should be dry, clean and protected from corrosion.
Store wire rope slings on a rack and not lying on the ground. The storage area should be dry and free of any contaminants which may harm the sling.
Important
Do not alter, modify or repair a wire rope sling but refer such matters to a Competent Person.
Using Wire Rope Slings Safely
Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective slings or accessories.
Do not force, hammer or wedge slings or fittings into position. They must fit freely. Check to ensure correct engagement of fittings and appliances.
Position hooks of multi-leg slings facing outward from the load.
Do not lift on the point of a hook.
Ensure that the wire rope is not twisted or knotted.
Ensure the effective diameter of pins, hooks etc upon which soft eyes fit is at least 2 × the wire rope diameter.
Position the splices of endless slings in the standing part of the sling away from hooks and fittings.
Never join wire rope slings made from different lays of rope together as this will cause them to un-lay thus seriously affecting their capacity.
Back hook free legs to the masterlink to avoid lashing legs which might accidentally become engaged or otherwise become a hazard.
Take the load steadily and avoid shock loads.
Do not leave suspended loads unattended. In an emergency cordon off the area.
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep wire rope slings clean and protect from corrosion. Use non-acidic lubricants.
Regularly inspect wire rope slings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination:
Defects Requiring Professional Examination:
Illegible markings
Distorted, worn or damaged fittings
Broken or cut wires
Kinks
Protrusion of core
Corrosion
Heat damage or discolouration
Signs of movement at splices and ferrules
Any other visible defect to the wire rope, thimbles or fittings
Safety First
Wire rope slings should only be used by trained professionals who understand safe usage and handling procedures. Always consult a Competent Person if you have any doubts about the condition or suitability of a sling for a particular application.
