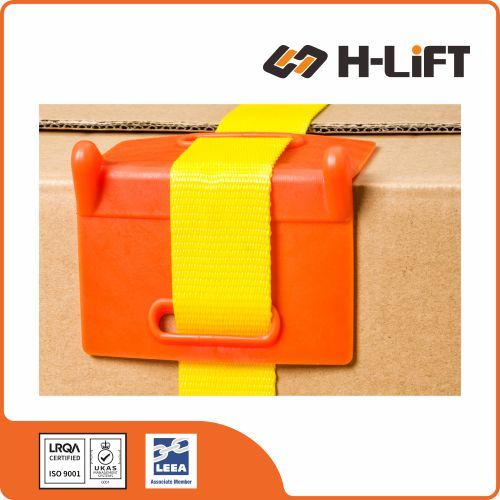

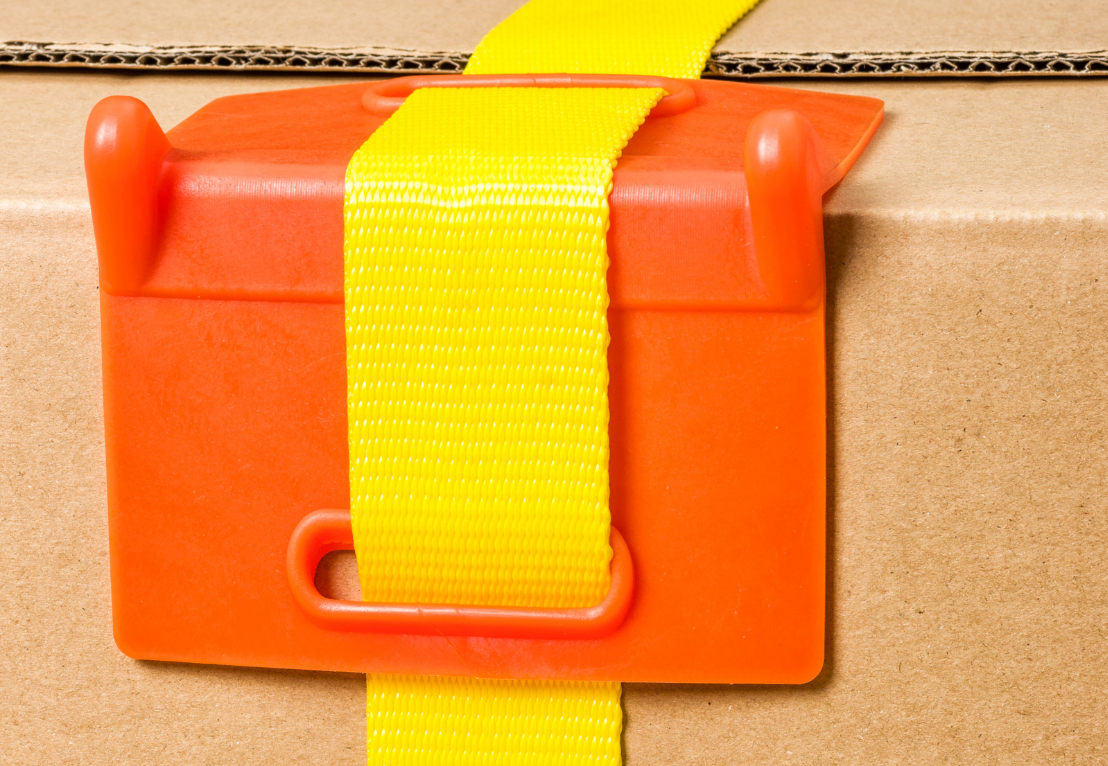

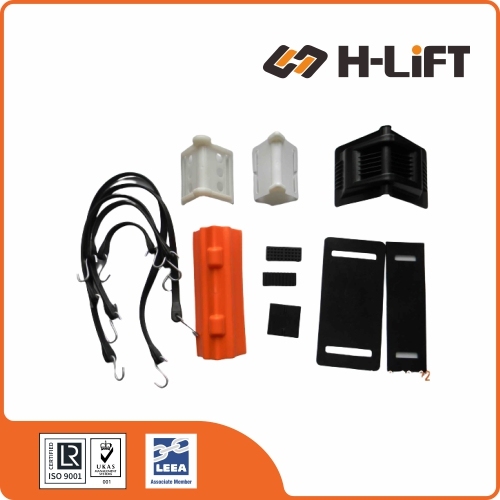

Corner Protectors are essential cargo lashing accessories designed to be used in conjunction with ratchet straps, textile slings, or chains to prevent damage to both the securing equipment and the load itself during transit.
Strap and Chain Protection: Effectively shields tie-down webbing and chains from severe abrasion and cutting caused by sharp cargo edges, significantly extending the life of the lashing equipment.
Cargo Damage Prevention: Works by distributing the high tension and pressure of the strap over a significantly wider surface area, ensuring that fragile or soft cargo is not crushed or banded.
Durable Materials: Manufactured from a variety of heavy-duty materials tailored to different industrial needs, including High-Density Polyethylene (HDPE), Polyurethane (PU), Polypropylene (PP), and highly durable Steel.
Broad Compatibility: Available in multiple sizes and angles (such as 90° or 83°) to perfectly accommodate different strap widths ranging from 19mm up to heavy-duty 100mm webbing applications.
Dual Protection: Effectively protects both the cargo edges from crushing marks and the ratchet straps from cutting or abrasion caused by sharp corners.
Wide Material Selection:
Plastic (PE/PP/HDPE): Lightweight, durable, and cost-effective. Ideal for general freight, palletized goods, and box trucks.
Steel (Heavy Duty): Designed for securing heavy machinery, steel coils, or sharp-edged loads where plastic might crack.
PU (Polyurethane): Flexible and cut-resistant, perfect for conforming to irregular shapes.
Size Versatility: A comprehensive range suitable for 25mm, 50mm, 75mm, and 100mm webbing straps.
Load Stability: Helps distribute strap tension evenly across a wider area, ensuring the load remains stable during transport.
Specialty Options: Includes 12-inch and 24-inch long protectors (V-Boards) for brick and block hauling.
Plastic Corner Protectors
PCP050 (50mm)
Material: PE
Size: 90x90x135(83°)
Code: 406000001
PCP051 (50mm)
Material: PE
Size: 90x90x135(82°)
Code: 406000002
PCP100 (50-100mm)
Material: PE
Size: 90x90x133(83°)
Code: 406000003
PCP101 (50-100mm)
Material: PE
Size: 90x90x127(73°)
Code: 406000004
PCP102 (50-100mm)
Material: PE
Size: 90x90x136(83°)
Code: 406000005
PCP053 (50mm)
Material: PE
Size: 130x180x146(90°)
Code: 406000006
PCP054 (50mm)
Material: PE
Size: 60x172x146(90°)
Code: 406000007
PCP055 (50mm)
Material: PE
Size: 135x180x145(90°)
Code: 406000008
PCP056 (50mm)
Material: PE
Size: 125x165x140(90°)
Code: 406000009
PCP052 (50mm)
Material: PE
Size: 135x180x150(90°)
Code: 406000010
PCP057 (50mm)
Material: PE
Size: 150x195x150(90°)
Code: 406000011
PCP058 (19mm)
Material: PE
Size: 40x40x60(90°)
Code: 406000012
PCP1 (Universal)
Material: HDPE
Size: 19x190x190(90°)
Code: 406000013
PCP2 (Universal)
Material: HDPE
Size: 17x170x170(90°)
Code: 406000014
PCP3 (Universal)
Material: HDPE
Size: 15x115x115(90°)
Code: 406000015
PCP4 (Universal)
Material: HDPE
Size: 4x125x160(90°)
Code: 406000016
PCP103 (50-100mm)
Material: PE
Size: 85x85x296(83°)
Code: 406000017
PCP104 (50-100mm)
Material: PP
Size: 110x110x270(83°)
Code: 406000018
PCP105 (50-100mm)
Material: PE
Size: 85x85x296(83°)
Code: 406000019
Steel & PU Protectors
SCP100 (Steel)
For 50-100mm
Size: 110x110x152(90°)
Code: 406000020
SPC050 (Steel)
For 50mm
Size: 2x76x88.5(84°)
Code: 406000021
PS006 (PU)
For 50mm
Size: 4x80x125
Code: 406000022
V-Board Protectors (12" - 24")

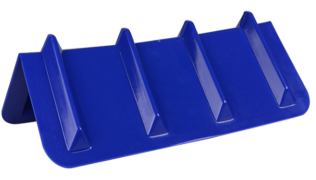

PCR24 (24")
Material: PP
Size: 24" x 8" x 8"
Code: 406000023
PCR12 (12")
Material: PP
Size: 12" x 8" x 8"
Code: 406000024
