A crane scale is a specialized weighing device designed to be suspended from a crane or other overhead lifting equipment to measure the weight of heavy and oversized objects during lifting operations. It consists of a sturdy hook or attachment mechanism allowing secure holding of the load, and typically features a digital display for easy reading of the weight.
Crane scales are widely used in industries such as manufacturing, construction, shipping, logistics, agriculture, and commercial fishing to weigh large machinery, bulk materials, or containers that are difficult to weigh with traditional floor scales. The main advantages include portability, the ability to weigh awkwardly shaped objects, saving floor space, and enhancing safety by allowing operators to read measurements from a distance.

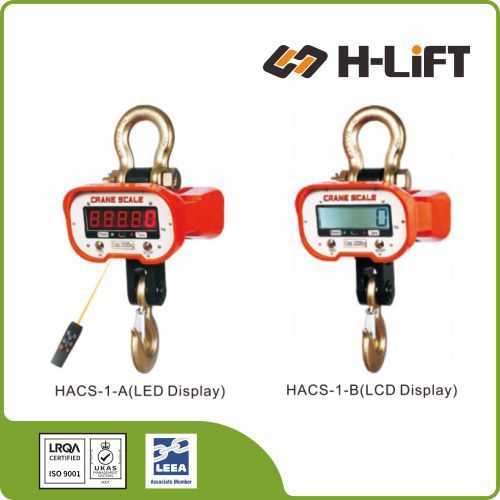

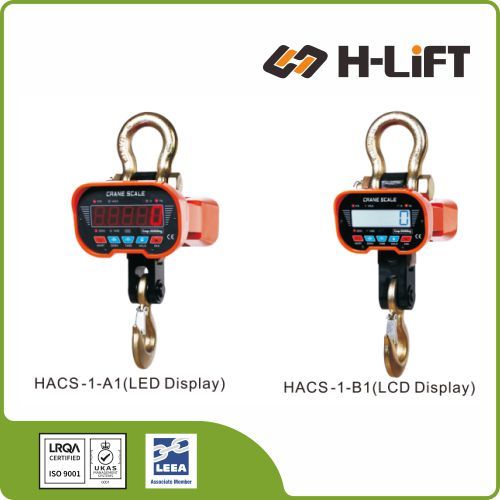

H-Lift Crane Scale HACS type

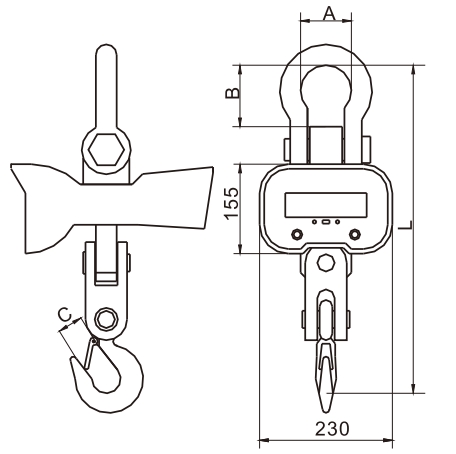

| Item No. | Max. Cap. | Min. Cap. | Division Value | Dimensions(mm) | Weight | Product Code | |||
| t | kg | kg | A | B | C | L | kg | ||
| HACS-01 | 1 | 10 | 0.5 | 58 | 83 | 30 | 420 | 13 | 181001000 |
| HACS-02 | 2 | 20 | 1 | 58 | 83 | 30 | 420 | 13 | 181002000 |
| HACS-03 | 3 | 20 | 1 | 73 | 107 | 33 | 480 | 16 | 181003000 |
| HACS-05 | 5 | 40 | 2 | 92 | 135 | 45 | 585 | 25 | 181005000 |
| HACS-10 | 10 | 100 | 5 | 94 | 147 | 60 | 770 | 47 | 181010000 |
| HACS-15 | 15 | 100 | 5 | 128 | 178 | 75 | 860 | 64 | 181015000 |
| HACS-20 | 20 | 200 | 10 | 135 | 250 | 75 | 950 | 68 | 181020000 |
