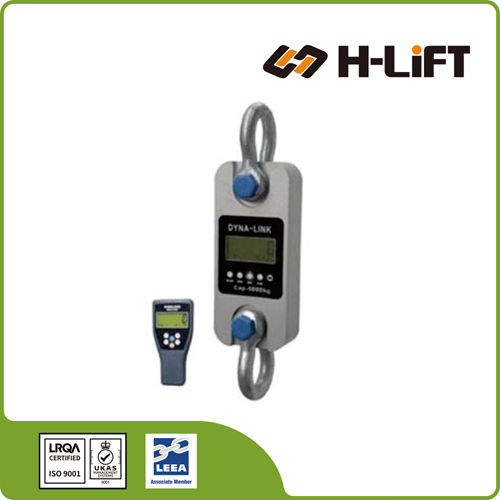

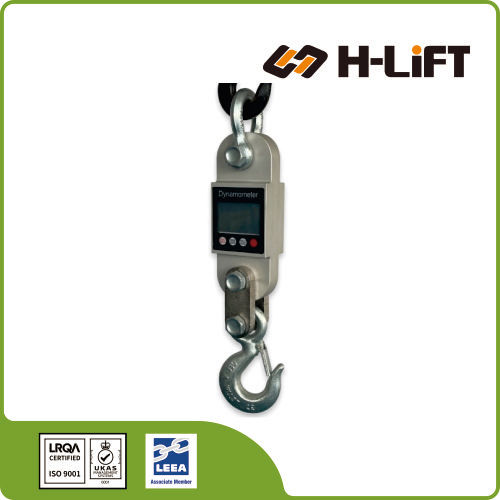

Crane Scale HDCS type

Item No.: 1812
The portable crane scale HDCS type features electronic weighing options with an LCD display that is highly visible and offers flexible, adaptive, and accurate measurements. It is widely used in industrial plants, workshops, agricultural markets, etc.
Description What is a Crane Scale
Description

H-Lift Crane Scale HDCS type

  • Material: aluminium scale body.
  • Multi-functions: unit conversion, hold, zero, auto power-off, battery check, overload warning.
  • Large LCD display: large digits display, clear reading in different environments, even in dark places or from a far distance.
  • Selectable units of measurement: kg / lbs / kN.
  • Infrared remote control: change units and clear measurements from a safe distance.

Crane Scale



Item No. Max. Cap. Min. Cap. Division Value Dimensions(mm) Weight Product Code
ton kg kg A B C L kg
HDCS-005 0.5 10 0.2 230 85 25 165 1.5 181200500
HDCS-010 1 10 0.5 230 85 25 165 1.5 181201000
HDCS-020 2 20 1 230 85 25 165 1.5 181202000
HDCS-030 3 30 1 230 85 25 165 1.5 181203000
HDCS-032 3.2 30 1 230 85 25 165 1.5 181203200
HDCS-050 5 40 1 230 85 32 165 1.6 181205000
HDCS-064 6.4 100 1 230 85 32 165 1.7 181206400
HDCS-100 10 100 2 315 100 49 200 3.6 181210000
HDCS-150 15 150 5 350 126 70 210 7.1 181215000
HDCS-200 20 200 10 350 126 70 210 7.1 181220000
What is a Crane Scale

A crane scale is a weighing device that is designed to be suspended from a crane or hoist to weigh heavy loads. It consists of a load cell, which is a device that converts the weight of the load into an electrical signal, and a digital display unit that displays the weight reading.

Crane scales are commonly used in industries such as manufacturing, construction, shipping, and logistics to weigh heavy objects such as machinery, vehicles, and containers. They are useful for determining the weight of objects that are too heavy or bulky to be weighed on a traditional floor scale.

To use a crane scale, the device is attached to the crane or hoist using hooks or other attachment points. The load is then lifted off the ground and suspended from the crane scale. The scale measures the weight of the load and displays the reading on the digital display unit. Once the weight is determined, the load can be safely lowered to the ground.

Crane scales come in a variety of sizes and weight capacities to suit different applications. Some models are equipped with additional features such as wireless connectivity and data logging capabilities, which allow for easy data collection and transfer.
