DIN 1480 Turnbuckle

Name: DIN 1480 Turnbuckle
Brand: H-Lift Industries Co Ltd
SKU: 702002
Availability: InStock
Rating: 5 (1 reviews)

No.702002

The H-Lift DIN 1480 Turnbuckle is a standardized tensioning assembly featuring an open-body design manufactured from carbon steel or mild steel. Designed to German DIN 1480 specifications, these turnbuckles utilize threaded adjustments to effectively increase or decrease tension in wire ropes, cables, and rod systems. They are widely employed in general construction, landscaping, and non-critical rigging applications where reliable linear force adjustment is required.

Manufactured to DIN 1480 standard specifications
Material: Carbon Steel / Mild Steel with galvanized finish
Available Size Range: M5 to M36
Configuration options: Hook & Eye, Eye & Eye, and Hook & Hook
Suitable for lashing, fencing, and static tensioning (Not for lifting)

Technical Data
Differene between Rigging Screws and Turnbuckles

H-Lift DIN 1480 Turnbuckles feature an open-body design with threaded ends, ideal for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. Manufactured from high-quality carbon steel, these versatile rigging screws are available with Hook, Eye, or Jaw end fittings to suit a wide range of connection requirements.

📜 DIN 1480 Standard

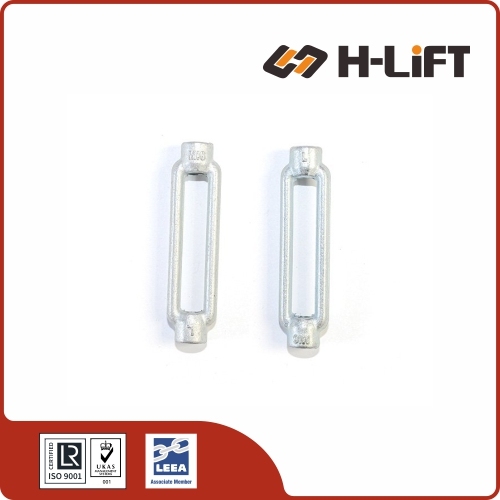

Designed to German Industrial Standard DIN 1480, featuring a robust open body frame for easy inspection and adjustment.

🔗 Versatile End Fittings

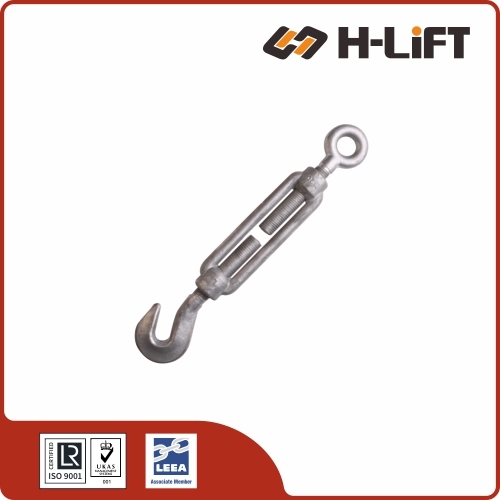

Available in multiple configurations: Hook & Eye (quick attachment), Hook & Hook (temporary), and Eye & Eye (permanent secure rigging).

🛡️ Corrosion Protection

Standard finish is Electro-Galvanized (Zinc Plated) for rust resistance. Hot Dip Galvanized and Self-Colored finishes are also available upon request.

📏 Wide Size Range

Stocked in metric thread sizes from M5 to M36 (up to M48 on request) to handle light lashing to heavy-duty tensioning jobs.

Q: What is the difference between DIN 1480 and DIN 1478 turnbuckles?
A: DIN 1480 turnbuckles have an open body with flat sides. DIN 1478 turnbuckles are made from seamless steel pipe (closed body) and are generally rated for higher loads and lifting applications.

Q: Can I use DIN 1480 turnbuckles for lifting?
A: Standard DIN 1480 turnbuckles are designed for tensioning and lashing (static loads). They are not recommended for overhead lifting unless specifically certified by the manufacturer.

Technical Specifications

Item No.	Size	Main Dimensions (mm)							Weight	Product Code
Item No.	Size	D	L min	L max	A	C	B	F	kg	Product Code
TB148005	M5	70	115	170	54	8.4	65	6	0.052	702002005
TB148006	M6	110	166	250	80	10	85	8	0.09	702002006
TB148008	M8	110	190	280	84	12	85	10.7	0.15	702002008
TB148010	M10	125	216	305	105	14	112	13.2	0.26	702002010
TB148012	M12	125	248	328	115	17.5	117	14.5	0.40	702002012
TB148014	M14	140	254	343	122	18	122	15.5	0.60	702002014
TB148016	M16	170	336	452	165	22	138	18	0.90	702002016
TB148020	M20	200	365	490	167	25.5	170	20	1.65	702002020
TB148022	M22	220	387	531	167	29.7	185	21.5	2.22	702002022
TB148024	M24	255	437	612	205	27.7	205	24	2.68	702002024
TB148027	M27	255	485	650	230	34	255	28.5	3.82	702002027
TB148030	M30	255	520	670	255	36	255	29	4.50	702002030
TB148032	M32	255	520	725	255	36	255	36	4.92	702002032
TB148036	M36	295	576	754	276	44	255	43	8.30	702002036

⚠️ USAGE LIMITATION

These turnbuckles are designed for static tensioning applications such as fencing, construction lashing, and structural support. They are NOT RATED FOR OVERHEAD LIFTING unless explicitly stated. For lifting applications, please consider using high-strength Forged Turnbuckles (US Fed Spec FF-T-791b) or DIN 1478 pipe turnbuckles.

Rigging screws and turnbuckles are essential components used to adjust tension and secure loads. While they serve similar functions, their distinct designs make them suitable for specific applications.

Rigging Screws

*Rigging screws feature a pipe-like closed body encasing the threads.

Definition: Also known as rigging tensioners, these devices adjust tension in cables, wires, or rods. They typically feature a closed body (tubular) design.
Functionality: Rotating the body causes the attached fittings (different handed threads) to move in or out, providing precise tensioning.
Best Use: Critical for maintaining correct tension in shrouds, stays, and guard wires where protection of the threads is beneficial.

Turnbuckles

*Turnbuckles feature an open frame allowing view of the threads.

Definition: Often called bottlescrews, these mechanical devices consist of an open frame with two threaded ends connected to eye bolts, hooks, or jaws.
Design: The open body allows for easy visual inspection, lubrication, and maintenance. Available in stainless steel, bronze, and galvanized steel.
Functionality: Features one left-hand and one right-hand thread. Rotating the central frame adjusts both ends simultaneously.
Applications: Widely used in marine rigging, construction, and general tensioning.

Key Differences Summary

Body Design Rigging screws generally have a closed (tubular) body, protecting the threads. Turnbuckles have an open body, allowing for inspection.
Thread Types Rigging screws typically use different handed threads on each end for fine adjustment. Turnbuckles use standard LH/RH threads for rapid adjustment.
Usage Context Turnbuckles are preferred where frequent adjustments and inspection are needed. Rigging screws are often preferred for permanent installations where aesthetics or thread protection is prioritized.
