DIN 580 Eye Bolt

Item No.: 706001
Eye bolt DIN580 is generally used as a removable lifting point that can be used as a termination for chain, wire rope and other assemblies where required.
Material: C15 carbon steel as standard. C15E is optional.
Description Safe Use of Eye Bolts
Description

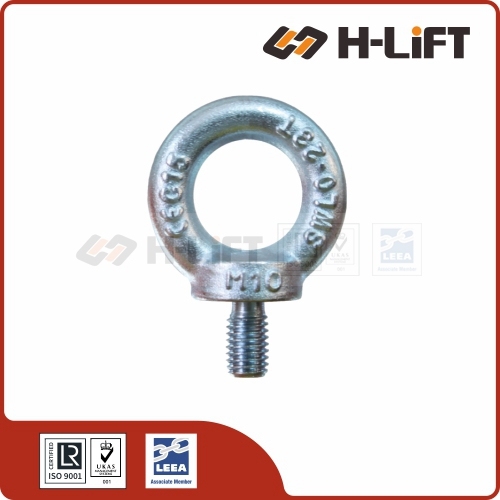

H-Lift DIN 580 Eye Bolt

  • Eye bolt DIN580 is generally used as a removable lifting point that can be used as a termination for chain, wire rope and other assemblies where required.
  • Connection point for anchoring, rigging, pulling, lifting.
  • DIN 580 eye bolt can be used with ropes, cables, shackles and hooks.
  • Material: C15 carbon steel as standard. C15E is optional.
  • Surface finish: electric galvanized
  • Safety factor: 6:1
  • With metric thread
  • Note: the eye bolt must be of fully screwed in to achieve a perfect contact between the two mating faces.

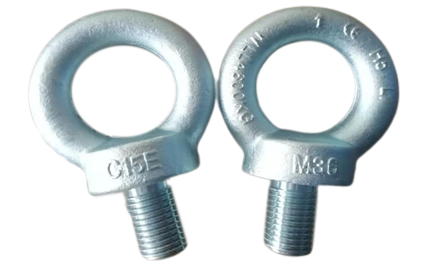

C15E Eye BoltDIN 580 eye bolt



Item No. Size W.L.L. Dimensions (mm) Weight Product Code
d Ton A B C D kg
HK2306 M6 0.08 20 36 20 13 0.05 706001006
HK2308 M8 0.14 20 36 20 13 0.06 706001008
HK2310 M10 0.23 25 45 25 17 0.11 706001010
HK2312 M12 0.34 30 54 30 20.5 0.18 706001012
HK2314 M14 0.49 35 63 35 27 0.28 706001014
HK2316 M16 0.7 35 63 35 27 0.285 706001016
HK2318 M18 0.95 40 72 40 30 0.45 706001018
HK2320 M20 1.2 40 72 40 30 0.45 706001020
HK2322 M22 1.5 45 81 45 35 0.67 706001022
HK2324 M24 1.8 50 90 50 36 0.87 706001024
HK2327 M27 2.5 50 90 50 36 0.88 706001027
HK2330 M30 3.6 65 108 60 45 1.66 706001030
HK2333 M33 4.3 65 108 60 45 1.72 706001033
HK2336 M36 5.1 75 126 70 54 2.65 706001036
HK2339 M39 6.1 75 126 70 54 2.8 706001039
HK2342 M42 7 85 144 80 63 4.03 706001042
HK2345 M45 8 85 144 80 63 4.25 706001045
HK2348 M48 8.6 100 166 90 68 6.38 706001048
HK2352 M52 9.9 100 166 90 68 6.6 706001052
HK2356 M56 11.5 110 184 100 78 8.8 706001056
HK2364 M64 16 120 206 110 90 12.4 706001064
Safe Use of Eye Bolts

ALWAYS:
• Store and handle eyebolts correctly.
• Inspect eyebolts before use and before placing into storage.
• Select the type pattern eyebolt for the application.
• Ensure that the eyebolt and tapped hole threads are compatible and strong enough for the load.
• Correctly align the plane of the eye using shims where necessary.
• Ensure that the collar is fully seated when hand tight.


NEVER:
• Use tommy bars, grips or wrenches to tighten eyebolts.
• Use dynamo eyebolts for angular loading.
• Use a single eyebolt to lift a load that is free to rotate.
• Reeve slings through the eyes, links or shackles fitted to pairs of eyebolts.
• Force hooks or other fittings into the eye; they must fit freely.
• Shock load eyebolts.



Selecting the Correct Eyebolt
Eyebolts to BS 4278 are available in three standard types, eyebolt with link, collar eyebolt and dynamo eyebolt. Select the eyebolt to be used and plan the lift taking the following into account:
Type of eyebolt - eyebolt with link for all general purpose applications, collar eyebolt for most general duties, dynamo eyebolt only where a truly axial load is guaranteed. (A collar eyebolt fitted with a link through the eye must always be considered as a collar eyebolt and not as an eyebolt with link.)
Capacity - (rating eyebolts for angular loading) It is necessary to reduce the SWL by the following factors when using eyebolts with two leg slings:


Included angle
α of sling legs
Type of eyebolt    0<α≤30        30<α≤60       60<α≤90

Eyebolt with link
Collar eyebolt
1.0
0.63
0.8
0.4
0.63
0.25



Storing and Handling Eyebolts
Never return damaged eyebolts to storage. They should be dry, clean and protected from corrosion. Care must be taken to protect threads from damage whilst in store.
Where possible use removable plugs to exclude debris from tapped holes.



Using Eyebolts Safely
Do not attempt lifting operations unless you understand the use and limitations to use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective eyebolts. Check the thread of both the eyebolt and hole, ensure they are compatible, fully formed, of sufficient length, undamaged and clear of any debris which may prevent proper engagement.
Ensure the contact surface around the hole is flat, clean and perpendicular to the thread axis. Tighten the eyebolt down firmly by hand. The eye must be in the correct plane and the collar must sit evenly on the contact surface. Use shims but do not machine the collar or over tighten to achieve this.
A hook may be engaged directly into the eye of a dynamo eyebolt or the link of an eyebolt with link. Collar eyebolts must be fitted with a shackle or link to accept hooks. The hooks must fit freely so do not wedge or force them into position.
Never reeve a sling through the eyes, links or shackles fitted to eyebolts used in pairs as this will impose a severe resultant load to the eyebolts.
Dynamo eyebolts must only be used for axial loading. When using eyebolts with multi-leg slings use eyebolts with links or collar eyebolts taking care to de-rate them correctly for angular loading conditions.
Where a single eyebolt is used, use a swivel or swivel hook to prevent the eyebolt unscrewing.



In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.
