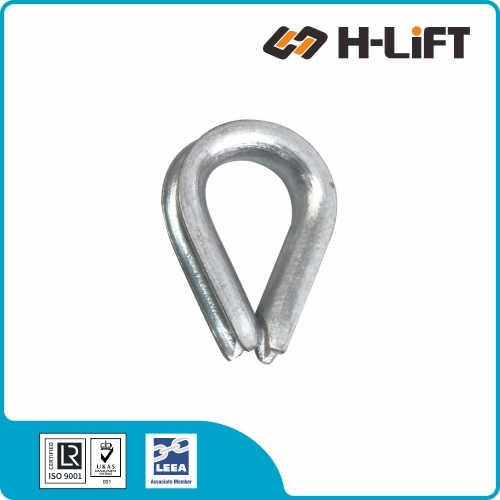

DIN 6899 B type Wire Rope Thimble

Item No.: 604008
The DIN 6899 B Wire Rope Thimble is an essential component for ensuring safety and reliability in rigging systems, making it a preferred choice among professionals in heavy-duty applications.
Description Differences between DIN 6899 A and B thimbles
Description

The DIN 6899 B Wire Rope Thimble is designed to provide protection and support for wire rope slings, particularly in heavy-duty applications. Here are the essential details regarding this type of thimble:

Key Features

  • Material: Typically made from mild steel, offering a balance of strength and flexibility.
  • Finish Options: Available in various finishes including electro-galvanized, hot-dipped galvanized, or self-colored to enhance corrosion resistance, making them suitable for outdoor and marine environments.
  • Design: The thimble features a heart-shaped design that accommodates the eye of the wire rope, preventing crushing and wear during use.

Applications

  • Rigging and Lifting: Ideal for heavy-duty rigging applications, the DIN 6899 B thimble helps maintain the integrity of the wire rope by distributing loads evenly and reducing stress at the eye.
  • Marine Use: Its robust construction and corrosion-resistant finishes make it suitable for marine environments.
  • Versatile Use Cases: Commonly used in various industries including construction, shipping, and outdoor installations.


The DIN 6899 B Wire Rope Thimble is an essential component for ensuring safety and reliability in rigging systems, making it a preferred choice among professionals in heavy-duty applications.

DIN 6899 (B) Type Wire Rope Thimble

Medium-weight, with deep groove

Mateial: mild steel

Standard: generally to DIN 6899 (B)

Finish: Electro galvanized or hot dip galvanized

 DIN6899 B Type Wire Rope Thimble

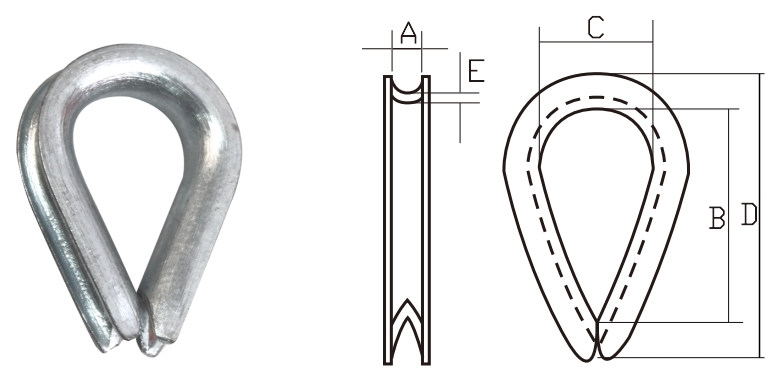

A=groove width, B=inside length, C=inside width, D=length, E=back thickness

Item No.

Rope

Dia.(mm)

Dimensions(mm) Weight Product Code
kg
WRTDB003 2.5 3 19 12 22 1.6 0.003 604008003
WRTDB004 3.5 4 21 13 26 1.6 0.008 604008004
WRTDB005 4 5 23 14 32 1.9 0.010 604008005
WRTDB006 5 6 25 16 38 2.4 0.016 604008006
WRTDB007 6 7 38 18 44 2.4 0.019 604008007
WRTDB008 7 8 32 20 51 2.8 0.030 604008008
WRTDB010 9 10 28 24 57 3.1 0.047 604008010
WRTDB012 11 12 45 28 64 3.3 0.068 604008012
WRTDB013 12 13 48 30 70 3.3 0.080 604008013
WRTDB014 13 14 51 32 76 3.7 0.100 604008014
WRTDB016 15 16 58 36 83 3.8 0.145 604008016
WRTDB017 16 17 61 38 89 4.5 0.18 604008017
WRTDB018 16 18 64 40 95 4.75 0.20 604008018
WRTDB020 18 20 72 45 102 5.7 0.29 604008020
WRTDB022 20 22 80 50 114 5.7 0.30 604008022
WRTDB024 22 24 90 56 127 6.5 0.47 604008024
WRTDB026 24 26 99 62 140 6.8 0.59 604008026
WRTDB028 26 28 112 70 152 8 0.80 604008028
WRTDB030 28 30 120 75 165 8 1.10 604008030
WRTDB032 30 32 128 80 178 8 1.23 604008032
WRTDB034 32 34 152 95 203 8 1.40 604008034
WRTDB036 34 36 160 100 216 8.5 1.50 604008036
WRTDB038 36 38 176 110 229 8.5 1.70 604008038
WRTDB040 38 40 184 115 241 10.5 2.00 604008040
WRTDB042 40 42 192 120 254 10.5 2.15 604008042
WRTDB045 42 45 240 150 305 10.5 3.80 604008045
Differences between DIN 6899 A and B thimbles
The DIN 6899 A and DIN 6899 B wire rope thimbles serve similar purposes in protecting wire ropes but have distinct differences in design and application. Here are the main differences:

Main Differences Between DIN 6899 A and B Thimbles

Feature DIN 6899 A Thimble DIN 6899 B Thimble
Design Shape Generally has a more rounded shape with a wider opening. Features a heart-shaped design with a narrower opening.
Load Capacity Typically designed for lighter loads. Built for heavier loads, offering greater strength and durability.
Material Thickness Usually has a thinner wall compared to type B. Generally thicker, providing enhanced resistance to deformation under load.
Common Applications Suitable for light-duty applications and general rigging. Used in heavy-duty applications, such as lifting and towing in industrial settings.
Standard Compliance Complies with the DIN 6899 A standard specifications. Complies with the DIN 6899 B standard specifications, which may have different dimensional requirements.

In summary, while both thimbles are used to protect wire rope eyes and improve the longevity of slings, the DIN 6899 A is more suited for lighter applications, whereas the DIN 6899 B is designed for heavier loads and more demanding environments. This distinction makes it crucial to select the appropriate type based on the specific requirements of your rigging or lifting application.
