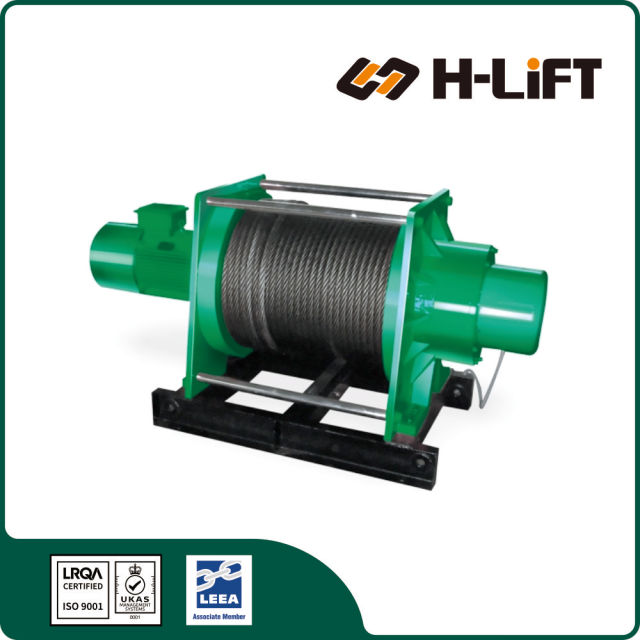

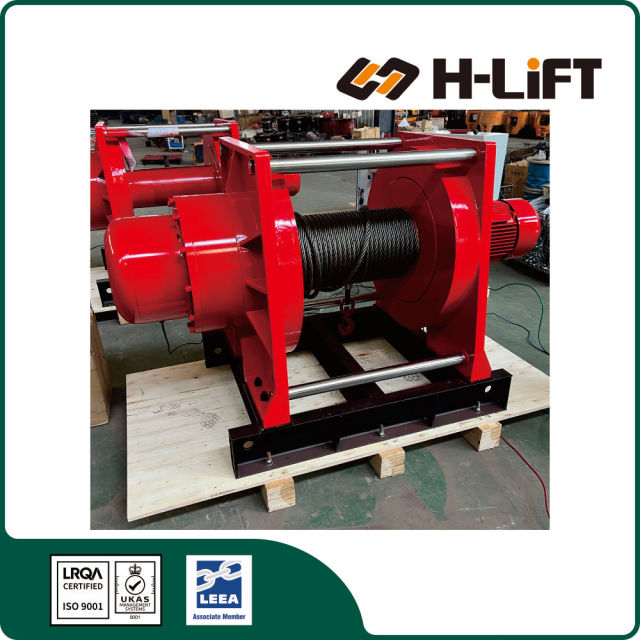

This EWW Type Electric Cable Winch is a compact, high-efficiency lifting and pulling solution designed for reliable performance across construction, warehousing, and industrial material handling tasks.
The Electric Cable Winch (also known as a mini electric hoist or windlass) is a compact, versatile, and high-performance lifting and pulling device powered by electricity.

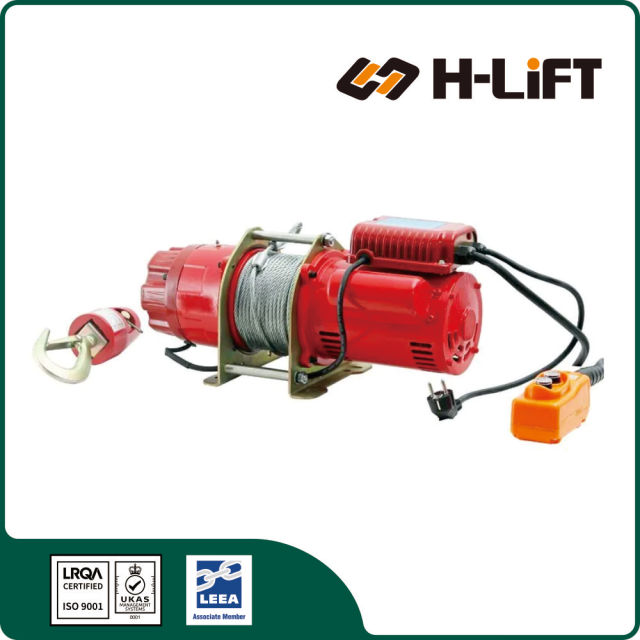

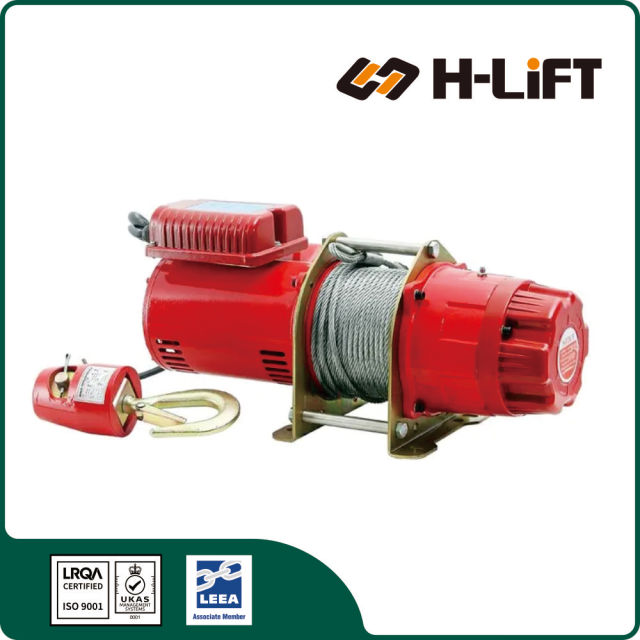

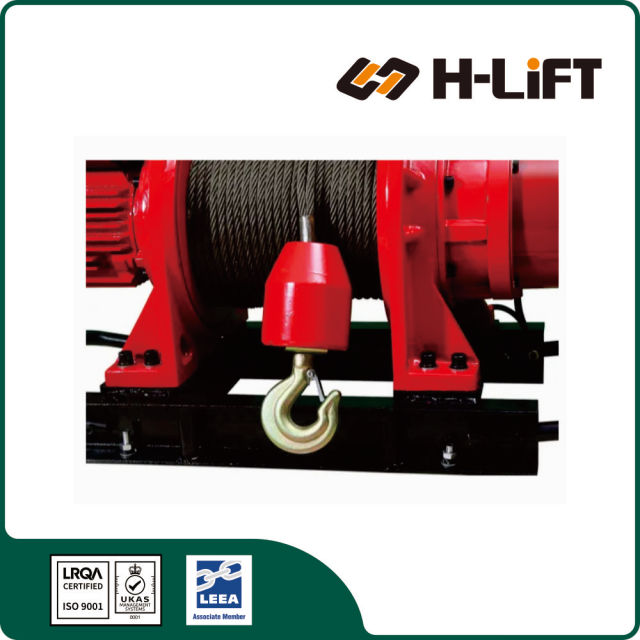

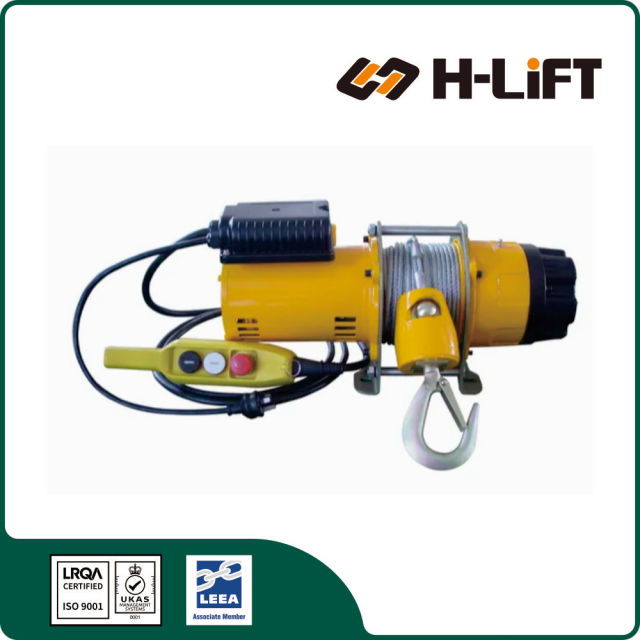

Precision-engineered and ruggedly constructed for heavy-duty hoisting and pulling operations, it features a durable motor, high-strength steel wire rope, a heavy-duty safety hook, and a wired pendant remote controller for safe distance operation. It is widely used in construction sites, warehouses, workshops, garages, and home DIY projects for hoisting materials, pulling loads, and handling heavy machinery efficiently.
Voltage Options: 1-Phase (100V / 110V / 120V / 220V / 230V / 240V) or 3-Phase (230V / 380V / 415V / 440V / 480V)
| Item No. | Capacity (kg) | Rated Speed (m/min) | Lifting Height (m) | Wire Rope (mm) | Working Group | Motor (kw) | Freq (Hz) | Dimensions (mm) | N.W. (kg) | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

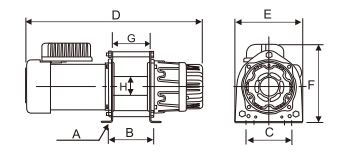

| A | B | C | D | E | F | G | H | ||||||||||
| EWW0020 | 200 | 11 | 29 | Ф6 | M3 | 0.6 | 50/60 | 4-Ф10.5 | 142 | 142 | 510 | 210 | 246 | 108 | Ф94 | 36 | 270100200 |
| EWW0025 | 250 | 11 | 29 | Ф6 | M3 | 0.75 | 50/60 | 4-Ф10.5 | 142 | 142 | 525 | 210 | 246 | 108 | Ф94 | 40 | 270100250 |
| EWW0031 | 300 | 13 | 29 | Ф7 | M3 | 1.1 | 50/60 | 4-Ф10.5 | 172 | 142 | 540 | 210 | 246 | 133 | Ф90 | 49 | 270100301 |
| EWW0033 | 300 | 13 | 29 | Ф7 | M3 | 1.1 | 50/60 | 4-Ф10.5 | 172 | 142 | 548 | 210 | 246 | 133 | Ф90 | 48 | 270100302 |
| EWW0050 | 500 | 13 | 58 | Ф9 | M3 | 2.2 | 50/60 | 4-Ф14 | 400 | 330 | 922 | 372 | 430 | 240 | Ф140 | 136 | 270100500 |
| EWW0075 | 750 | 13 | 58 | Ф9 | M3 | 3 | 50/60 | 4-Ф18 | 400 | 330 | 935 | 372 | 430 | 240 | Ф140 | 149 | 270100750 |
Voltage Options: 3-Phase (230V / 380V / 415V / 440V / 480V)
| Model | Capacity (kg) | Rated Speed (m/min) | Lifting Height (m) | Wire Rope (mm) | Working Group | Motor (kw) | Freq (Hz) | Dimensions (mm) | N.W. (kg) | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | ||||||||||
| EWW0100 | 1000 | 13.5 | 58 | Ф11 | M3 | 4 | 50/60 | 4-Ф18 | 400 | 330 | 935 | 372 | 430 | 240 | Ф140 | 156 | 270101000 |
| EWW0220 | 2200 | 10 | 97 | Ф16 | M3 | 6 | 50/60 | 4-Ф22 | 600 | 499 | 1160 | 565 | 658 | 312 | Ф178 | 450 | 270102200 |
| EWW0320 | 3200 | 11 | 97 | Ф18 | M3 | 7.5 | 50/60 | 4-Ф22 | 847 | 499 | 1431 | 565 | 860 | 416 | Ф178 | 500 | 270103200 |
| EWW0350 | 3500 | 11 | 140 | Ф18 | M3 | 9 | 50/60 | 4-Ф22 | 847 | 499 | 1431 | 565 | 860 | 416 | Ф178 | 550 | 270103500 |
| EWW0500 | 5000 | 11 | 192 | Ф22 | M3 | 15 | 50/60 | 6-Ф24 | 920 | 950 | 1860 | 1010 | 1260 | 660 | Ф300 | 1500 | 270105000 |
| EWW1000 | 10000 | 11 | 235 | Ф32 | M3 | 22 | 50/60 | 6-Ф24 | 1600 | 950 | 2450 | 1050 | 1260 | 832 | Ф450 | 3000 | 270110000 |
