Home > Electric Hoisting Equipments > Electric Winch

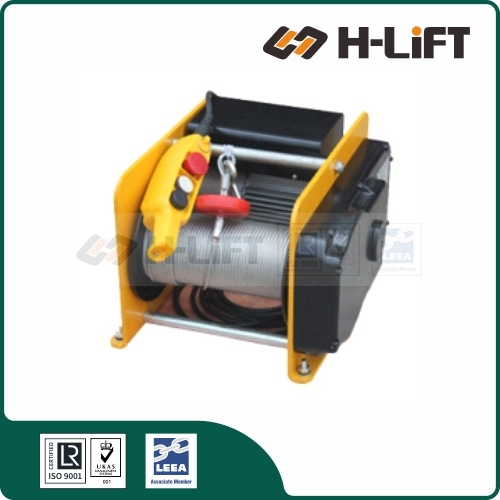

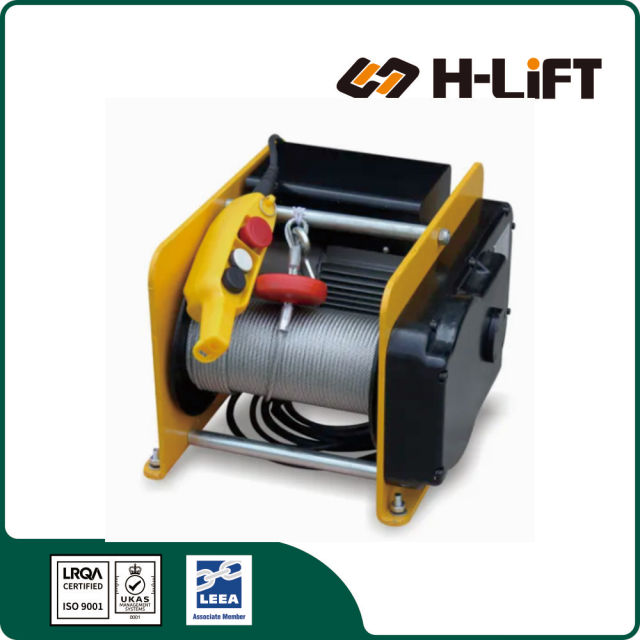

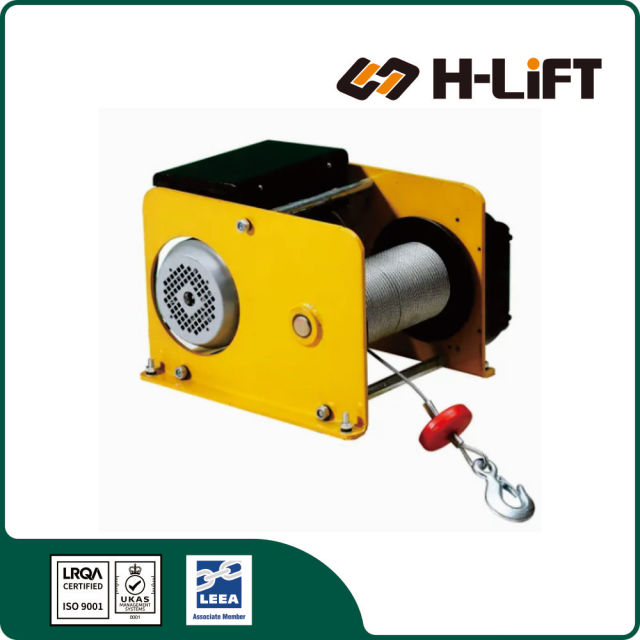

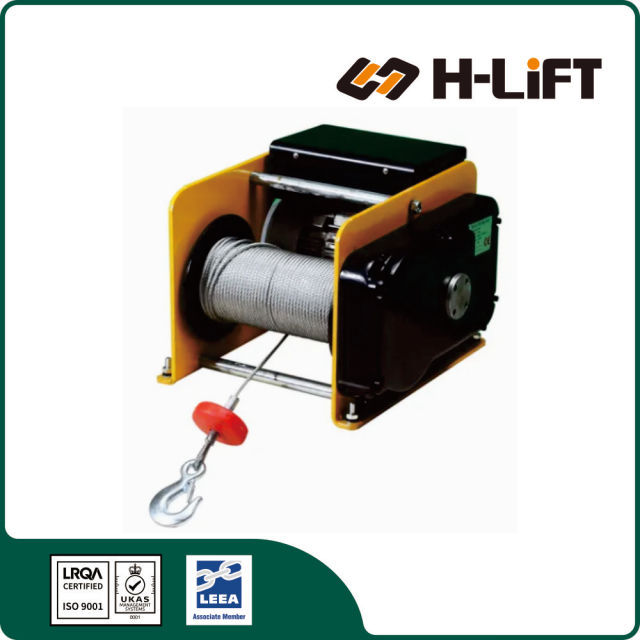

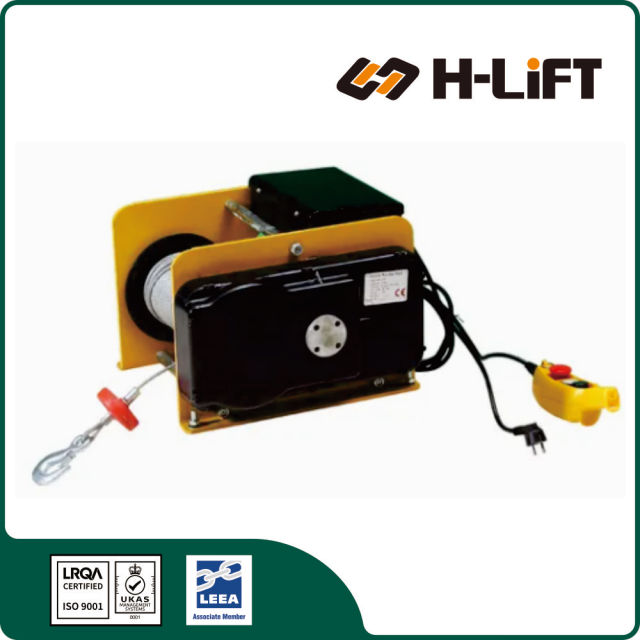

Electric Wire Rope Winch EWA type
Electric Wire Rope Winch EWA type Electric Wire Rope Winch EWA type Electric Wire Rope Winch EWA type
  • Electric Wire Rope Winch EWA type

Electric Wire Rope Winch EWA type

Item No.: 2601
H-Lift Electric Wire Rope Winch EWA type features:
The extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position and this makes them powerful aids for lifting and pulling loads.
Request Quote
Description
Description

H-Lift Electric Wire Rope Winch EWA type features:

  • The extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position and this makes them powerful aids for lifting and pulling loads.
  • Compact dimensions due to internal brake motor.
  • Spur gear transmission with helical first gear - ensures smooth motion.
  • Spring pressure disc brake incorporated in the motor holds the load securely even in the event of a power failure.
  • A plain rope drum is supplied as standard.
  • The rope is secured to the drum in a recess, so that the rope can be wound onto the drum in several layers without damage.
  • Low voltage pendant control is supplied as standard. Protection class: IP65.

H-Lift Electric Winch

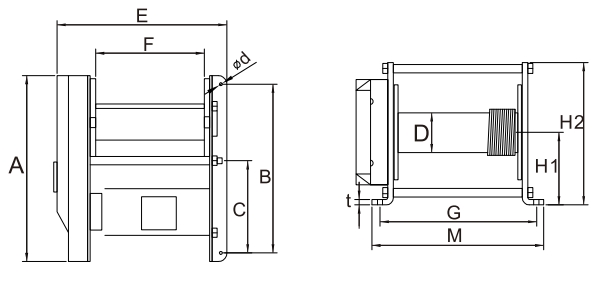

Item No. Capacity Lifting Height Lifting Speed Wire Rope Power Supply Dimensions(mm) N.W. Product Code
kg m m/min mm A B C D d E F G H1 H2 M t kg
EWA250-15 250 58 30 5 230V/1PH/50HZ 436 295 - 83 13 380 265 322 147 305 345 8 65 260125015
EWA500-15 500 58 20 6 520 480 240 122 15 415 270 338 188 372 370 10 107 260150015
EWA250-30 250 58 30 5 400V/3PH/50HZ 436 295 - 83 13 380 265 322 147 305 345 8 65 260125030
EWA500-30 500 58 20 6 520 480 240 122 15 415 270 338 188 372 370 10 107 260150030
