Name: Engine Crane ECB type
Brand: H-Lift Industries Co Ltd
SKU: 816002
Availability: InStock
Rating: 5 (1 reviews)

Home > Material Handling Equipments > Engine Crane

Description

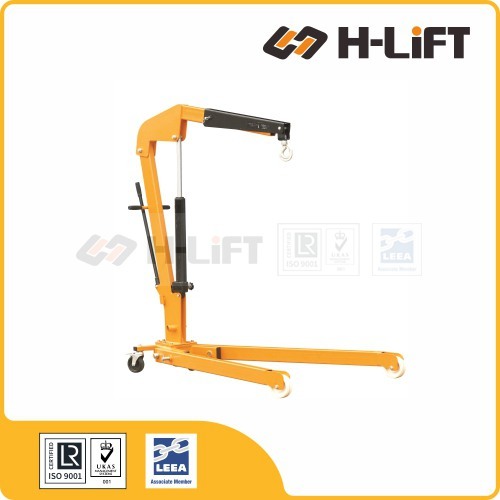

H-Lift Engine Crane ECB type
An engine crane, also known as an engine hoist or a cherry picker, is a device used for lifting and removing heavy engines from vehicles. It is typically composed of a steel frame, a hydraulic pump, and four or six swivel casters for mobility. The crane has a boom with a chain or cable attached to it, which is used to lift the engine from the vehicle. The hydraulic pump is used to control the lifting and lowering of the boom, as well as the movement of the casters. Engine cranes come in various sizes and weight capacities to accommodate different types of engines. They are commonly used in automotive repair shops, warehouses, and factories.

Ideal for use in home workshops and garages.
Three hook positions give different load ratings whilst enabling a longer or shorter reach.

Overload protection via a relief valve.
Forged heavy duty swivel hook.
125% overload test applied.

Foldable for easy storage.

Model	Capacity	Dimensions											Weight	Product Code
	P1/P2/P3	A	B	C	D	E	F	G	H	I	W	K	Weight
	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg
ECB0500	500/425/350	1354	165	1582	897	102	2080	1920	130	330	470	960	75	816002005
ECB1000	1000/800/700	1597	90	1749	1231	150	2450	2320	/	280	460	1100	115	816002010
ECB2000	2000/1700/1500	1626	208	1911	1293	150	2490	2330	/	250	590	1170	165	816002020
