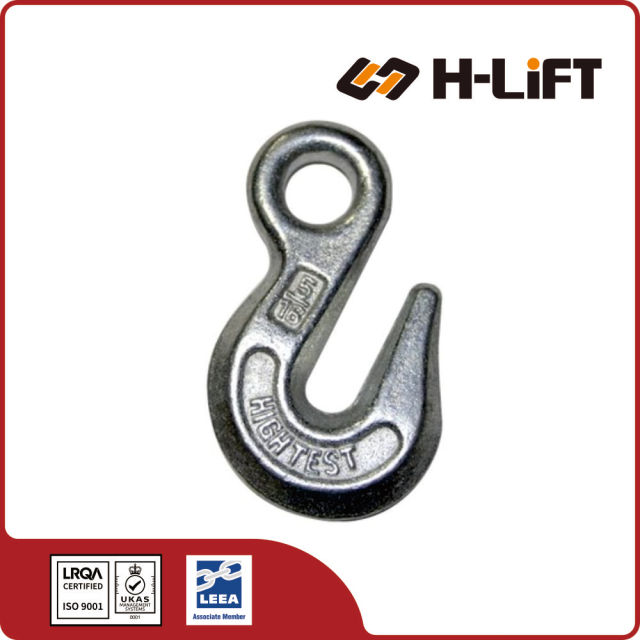

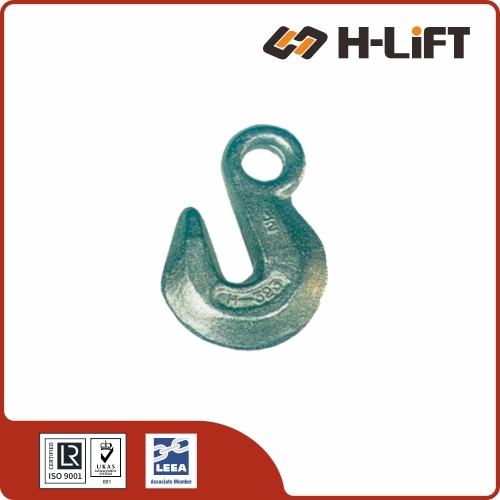

The H-Lift Eye Grab Hook is a specialized lifting hook with a narrower throat designed to grip chain links at any point along the chain length, enabling adjustable rigging configurations for load securement.
The Eye Grab Hook is an essential rigging component designed for chain shortening and load binding. Featuring a narrow throat, it locks onto specific chain links to prevent slippage. Available in Carbon Steel (Grade 43) for general utility and Alloy Steel (Grade 70) for heavy-duty transport and cargo control.
Carbon (G43): High-test forged steel for agricultural & utility use.
Alloy (G70): High-strength alloy for heavy transport & rigging.
Features a narrow throat opening designed to "grab" and lock a specific chain link, allowing users to shorten the chain length easily without cutting.
Drop forged, quenched, and tempered construction ensures superior structural integrity and durability under load.
Finished with Electro-Galvanizing to provide excellent protection against rust and harsh weather conditions in outdoor environments.
| Item No. | Chain Size | W.L.L. (lbs) | Dimensions (inch) | Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | (inch) | Carbon | Alloy | B | E | R | (lbs) | |
| HK0306C | HK0306A | 1/4 | 2,600 | 3,600 | 0.50 | 0.34 | 1.97 | 0.28 | 703003006 |
| HK0308C | HK0308A | 5/16 | 3,900 | 5,400 | 0.56 | 0.44 | 2.25 | 0.45 | 703003008 |
| HK0310C | HK0310A | 3/8 | 5,400 | 7,500 | 0.66 | 0.50 | 2.56 | 0.79 | 703003010 |
| HK0311C | HK0311A | 7/16 | 7,200 | 10,000 | 0.75 | 0.56 | 2.94 | 1.19 | 703003011 |
| HK0313C | HK0313A | 1/2 | 9,200 | 12,750 | 0.88 | 0.66 | 3.38 | 1.80 | 703003013 |
| HK0316C | HK0316A | 5/8 | 12,750 | 19,000 | 1.06 | 0.78 | 4.11 | 3.30 | 703003016 |
| HK0319C | HK0319A | 3/4 | 18,500 | 27,000 | 1.38 | 0.94 | 5.16 | 6.00 | 703003019 |
