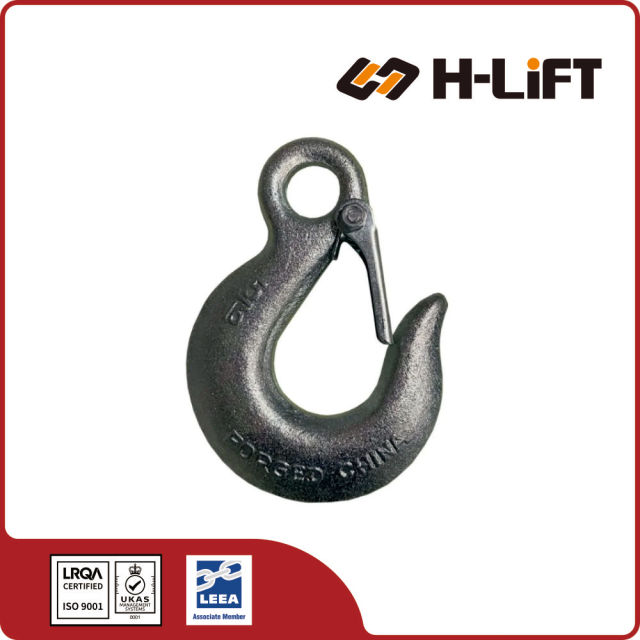

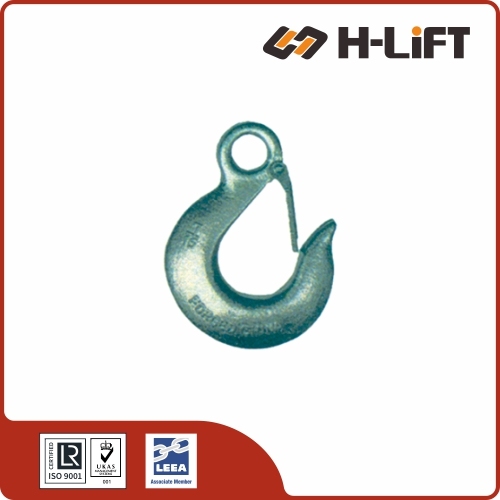

The H-Lift Eye Slip Hook with Latch is a forged lifting hook with integral eye attachment point, designed for secure connection to wire rope, chain, or slings in overhead lifting applications.
The Eye Slip Hook with Latch is a versatile connection point for chains and wire ropes. Available in Carbon Steel (Grade 43) for general utility and Alloy Steel (Grade 70) for heavy-duty transport and tie-down applications. The integrated safety latch ensures the load remains secure, preventing accidental disengagement.
Carbon (G43): For general utility with Grade 43 chain.
Alloy (G70): High-strength for transport & rigging with Grade 70 chain.
Equipped with a spring-loaded safety latch that retains the chain or load, preventing accidental disengagement even if the line goes slack.
Features a large eye opening for easy attachment to wire rope thimbles, shackles, or chain connectors, offering versatile rigging options.
Drop forged, quenched, and tempered construction with an Electric Galvanized finish for excellent corrosion resistance in outdoor environments.
| Item No. | Chain Size | W.L.L. (lbs) | Dimensions (inch) | Weight | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | (inch) | Carbon | Alloy | B | E | R | T | (lbs) | |
| HK0606C | HK0606A | 1/4 | 1,950 | 2,750 | 0.50 | 0.75 | 2.56 | 0.79 | 0.42 | 703006006 |
| HK0608C | HK0608A | 5/16 | 2,875 | 4,300 | 0.63 | 0.88 | 2.95 | 0.79 | 0.72 | 703006008 |
| HK0610C | HK0610A | 3/8 | 4,000 | 5,250 | 0.72 | 1.10 | 3.36 | 1.02 | 1.03 | 703006010 |
| HK0611C | HK0611A | 7/16 | 5,000 | 7,000 | 0.81 | 1.25 | 3.88 | 1.06 | 1.64 | 703006011 |
| HK0613C | HK0613A | 1/2 | 6,500 | 9,000 | 0.94 | 1.38 | 4.28 | 1.30 | 2.45 | 703006013 |
| HK0616C | HK0616A | 5/8 | 9,250 | 13,500 | 1.13 | 1.45 | 5.22 | 1.53 | 4.13 | 703006016 |
| HK0619C | HK0619A | 3/4 | 12,500 | 19,250 | 1.38 | 1.59 | 5.80 | 1.62 | 6.76 | 703006019 |
