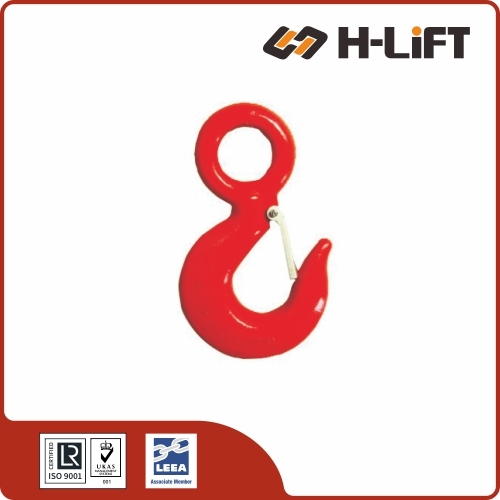

The H-Lift Forged Eye Hook with Latch is a drop-forged lifting hook featuring an integral eye and safety latch, designed for permanent attachment to wire rope, chain, or synthetic slings in rigging and material handling applications.
Available in both Forged Carbon Steel (C320) and Alloy Steel (A320), these eye hooks are designed for durability and safety. Featuring an integrated latch and Quenched & Tempered heat treatment, they deform before breaking to warn of overload.
C320 (Carbon): Grade 43 high test forged steel. Best for general-purpose lifting where extreme strength is not critical.
A320 (Alloy): Grade 70 forged alloy steel. Designed for heavy-duty construction and rigging where safety and strength are paramount.
| Item No. | W.L.L. (ton) | Dimensions (inch) | Weight (lbs) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | Carbon | Alloy | B | E | R | T | ||
| HK0700C | HK0700A | 1/4 | 1/2 | 0.39 | 0.40 | 1.78 | 0.49 | 0.16 | 703007000 |
| HK0701C | HK0701A | 1/2 | 3/4 | 0.63 | 0.81 | 2.80 | 0.65 | 0.37 | 703007001 |
| HK0702C | HK0702A | 3/4 | 1 | 0.75 | 0.88 | 3.22 | 0.81 | 0.57 | 703007002 |
| HK0703C | HK0703A | 1 | 1-1/2 | 0.91 | 0.97 | 3.66 | 0.84 | 0.77 | 703007003 |
| HK0704C | HK0704A | 1-1/2 | 2 | 1.12 | 1.00 | 4.09 | 0.84 | 1.28 | 703007004 |
| HK0705C | HK0705A | 2 | 3 | 1.25 | 1.12 | 4.69 | 1.19 | 1.76 | 703007005 |
| HK0706C | HK0706A | 3 | 4-1/2 | 1.56 | 1.34 | 5.78 | 1.38 | 3.66 | 703007006 |
| HK0707C | HK0707A | 5 | 7 | 2.00 | 1.69 | 7.38 | 1.78 | 7.19 | 703007007 |
| HK0708C | HK0708A | 7-1/2 | 11 | 2.44 | 2.06 | 9.06 | 2.12 | 13.17 | 703007008 |
| HK0709C | HK0709A | 10 | 15 | 2.83 | 2.22 | 10.09 | 2.72 | 22.15 | 703007009 |
| HK0710C | HK0710A | 15 | 22 | 3.50 | 3.02 | 12.53 | 2.83 | 39.55 | 703007010 |
