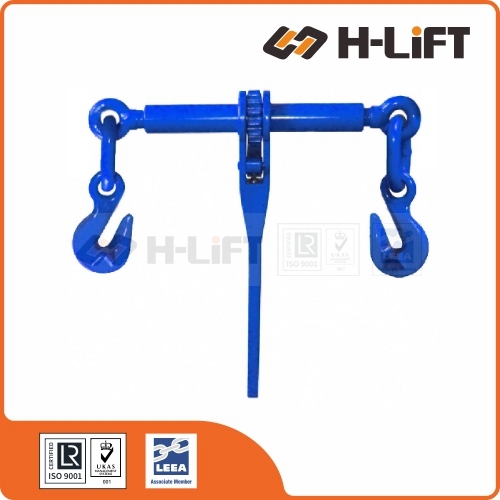

Name: G70 Ratchet Type Load Binder with Winged Grab Hook RLBC type
Brand: H-Lift Industries Co Ltd
SKU: 411501
Availability: InStock
Rating: 5 (1 reviews)

No.411501

The G70 Ratchet-Type Load Binder with Winged Grab Hook is a heavy-duty restraint tool providing controlled tensioning for Grade 70 chains to securely lash cargo on transport vehicles.

Controlled Tensioning: Features a reliable ratchet mechanism for precise, incremental tightening of transport chains without over-stressing the load.
Secure Engagement: Equipped with winged grab hooks that securely cradle the chain links to prevent deformation and ensure maximum hold.
Grade 70 Construction: Forged from high-strength Grade 70 steel to deliver exceptional durability and performance in demanding transport environments.
Standard Compliance: Fully complies with AS/NZS 4344 standards, guaranteeing safe and reliable heavy load securing for commercial logistics.

Technical Data
Transport Chain and Fittings AS/NZS 4344
Technical Guide

G70 Ratchet Load Binder with Winged Grab Hooks

AS/NZS 4344 Compliant Heavy Duty Chain Tensioner

100% Lashing Capacity Ratchet Action Winged Grab Hooks AS/NZS 4344

Product Features

100% Lashing Capacity: Unlike standard grab hooks that reduce chain strength by 25%, our Winged Grab Hooks (Cradle Hooks) fully support the chain link, allowing you to utilize the full rated capacity of your G70 transport chain.
Maximum Safety (No Whip): The ratchet mechanism allows for controlled, incremental tensioning and releasing. Unlike lever binders, there is no risk of the handle whipping back dangerously, making it the safest choice for operators.
Precise Tensioning: The screw-thread design enables infinite adjustment, allowing you to get the load tightness exactly right, which is crucial for heavy machinery and long-haul transport.
AS/NZS 4344 Certified: Fully tested and compliant with Australian/New Zealand standards, ensuring you meet all legal road transport requirements.

Ratchet vs. Lever Comparison

Feature	Ratchet Binder (This Product)	Lever Binder
Safety	High (No handle recoil)	Medium (Risk of snap-back)
Tensioning	Precise (Infinite adjustment)	Fixed steps (Link by link)
Speed	Slower	Faster
Effort	Low (Mechanical advantage)	High (Requires leverage)
Chain Capacity	100% (with Winged Hooks)	Varies by hook type

Technical Specifications

G70 Ratchet Load Binder with Winged Grab Hooks

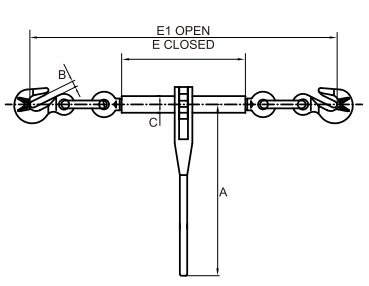

*Refer to table below for dimensions A-E1

Item No.	Chain Size (mm)	Lashing Capacity (ton)	Proof Load (ton)	Min. Ultimate Load (ton)	Dimensions (mm)					Product Code
Item No.	Chain Size (mm)	Lashing Capacity (ton)	Proof Load (ton)	Min. Ultimate Load (ton)	A	B	C	E	E1	Product Code
RLB06C	6	2.3	2.6	4.6	185	8	26	410	500	411501006
RLB08C	7-8	3.8	4.3	7.6	355	10.5	34	560	720	411501008
RLB10C	10	6.0	6.9	12.0	355	13	34	605	760	411501010
RLB13C	13	9.0	10.3	18.0	355	16.5	36	700	850	411501013

The G70 Transport Chain and Fittings range is widely utilized in the transportation industry for heavy-duty load binding, tie-down, and securing applications. Engineered for high performance, these components meet the rigorous requirements of AS/NZS 4344, ensuring safety and reliability in Australia and New Zealand.

Chain Specifications

Material: High-strength, heat-treated alloy steel.
Finish: Distinctive gold chromate finish for corrosion resistance and identification.
Strength: Superior strength-to-weight ratio compared to conventional chains.
Marking: Clearly stamped with "G70" to indicate grade.

Fittings & Compatibility

Fittings such as hooks, links, and connectors are manufactured to match the G70 chain's performance. They comply with AS/NZS 4344 and feature critical safety elements, such as latch mechanisms on hooks to prevent accidental detachment.

Usage Guidelines

Inspection: Regularly inspect for wear, deformation, or damage.
Limits: Always adhere to the Safe Working Load (SWL) / Lashing Capacity (LC).
Compatibility: Ensure all components in the lashing system are rated G70 or higher.

Grade 70 Component Example (AS/NZS 4344)

⚠️ Note on Standards:
While this information is accurate to current industry practices, standards (such as AS/NZS 4344) may be updated over time. Always refer to the latest version of the standard and consult with experts for specific application guidance.

Technical Guide: Load Binder Hook Types

Differences Between Grab, Cradle & Claw Hooks

Technical Guide Safety Critical AS/NZS 4344 Chain Fittings

Why Hook Choice Matters

When selecting a load binder, the type of end fitting determines the safety and capacity of your lashing system. Incorrect hook selection can lead to chain deformation, reduced working load limits, and potential failure.

This guide compares the three most common hook types:

Standard Grab Hook: General purpose, reduced capacity.
Cradle Grab Hook (Winged): Heavy duty, full capacity support.
Claw Hook: Specialized profile, full capacity support.

Detailed Breakdown

1. Standard Grab Hook

Design: A standard hook with a narrow throat and a plain, rounded bottom.
Chain Interaction: The chain link rests on a single point at the bottom of the hook. Under tension, this "point loading" can cause the chain link to bend or deform.
Capacity Impact: Reduces the chain's Working Load Limit (WLL) by approximately 25%.
Best For: General towing or non-critical lashing where full chain capacity is not required.

2. Cradle Grab Hook

Design: Also known as a "Winged Grab Hook," it features extra metal "wings" or lugs on both sides of the hook throat.
Chain Interaction: The wings cradle the chain link, supporting the shoulders of the link and preventing it from bending or shearing under load.
Capacity Impact: Maintains 100% of the chain's Lashing Capacity.
Best For: Heavy transport (AS/NZS 4344 compliant) where maximum strength is required.

3. Claw Hook

Design: A specialized hook often found on European or specific Australian binders (like the LLBH type), featuring a contoured seat.
Chain Interaction: Similar to the Cradle Hook, the Claw Hook is designed to fully seat the chain link, distributing the load evenly to prevent deformation.
Capacity Impact: Maintains 100% of the chain's Lashing Capacity.
Best For: Specific chassis anchor points or users preferring this profile over the winged design.

Quick Comparison Summary

Feature	Standard Grab Hook	Cradle (Winged) Hook	Claw Hook
Visual Profile	Plain throat	Side "Wings"	Contoured Seat
Chain Support	Point Contact (Risk of Bending)	Full Support (Cradled)	Full Support (Seated)
Capacity Impact	Reduces LC by 25%	100% Capacity	100% Capacity
Standard Use	General Use	AS/NZS 4344 (Transport)	AS/NZS 4344 (Transport)
