No.505005

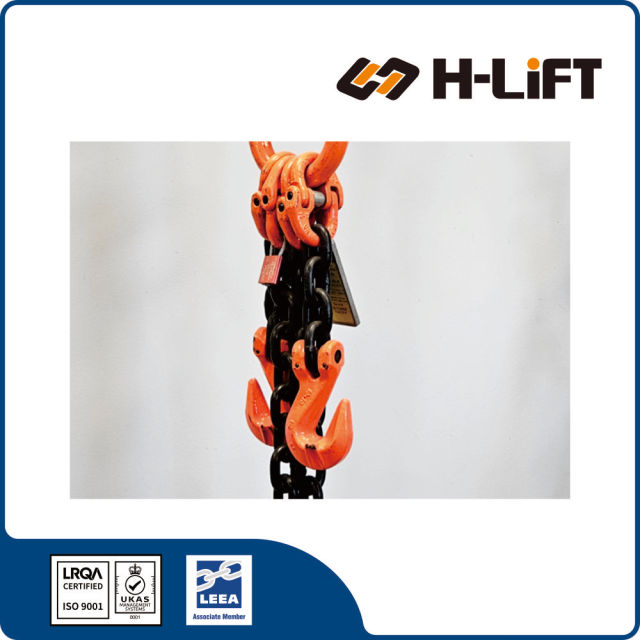

The Grade 100 Clevis Cradle Grab Hook (CGK Type) is a heavy-duty chain shortener engineered to quickly and safely adjust the length of multi-leg chain slings.

100% Capacity Retention: Features specialized supporting side lugs (cradle wings) that fully support the chain link, preventing distortion and allowing the lifting assembly to safely maintain 100% of its rated Working Load Limit.
Direct Chain Connection: The built-in clevis mechanism and load pin allow for fast, secure attachment directly to Grade 100 lifting chains without requiring extra coupling links.
Grade 100 Strength: Manufactured from premium alloy steel, offering 25% more lifting capacity than Grade 80 hooks, accommodating chain sizes from 6mm (1.4t WLL) to 32mm (40t WLL).
Safe Chain Shortening: The precisely engineered narrow throat securely grabs and holds the chain, making it highly effective for adjusting sling legs and back-hooking in demanding overhead lifts.

Technical Data
G-100 Alloy Fittings

Grade 100 Clevis Cradle Grab Hook - CGK Type

Full Capacity Chain Shortener (Winged Design)

Grade 100 Alloy Steel Cradle Design (100% WLL) Clevis Connection Shortening Hook

Grade 100 Clevis Cradle Grab Hook CGK type

*Winged 'Cradle' design prevents chain deformation

Product Features

100% Load Capacity (Cradle Design): Unlike standard grab hooks that can crush chain links, the CGK Type features supportive "wings" (cradles) on the sides of the hook. This distributes the load evenly and allows the sling to be used at 100% of its Working Load Limit without reduction.
Grade 100 Performance: Forged from high-strength Grade 100 Alloy Steel. Offers 25% higher lifting capacity than Grade 80 hooks, making it ideal for heavy-duty shortening applications where weight saving is key.
Integrated Clevis: Features a built-in clevis pin for direct attachment to the chain leg. This creates a compact shortening station without the need for additional connecting links.
Rapid Adjustment: The open throat design allows operators to quickly grab a chain link to adjust leg length. (Note: For locking security, consider our Locking Shortening Clutch).
Deep Chain Pocket: The precise throat geometry ensures the chain is held securely in the vertical position.
Standard: Compliant with ASTM A952 and EN 1677-1.

Shortener Capacity: Cradle vs. Standard

Type	Design	Load Capacity Impact
Cradle Grab (CGK) (This Product)	Winged / Cradle	100% Capacity. Side wings support the link. No reduction in WLL is required. Safe for full loads.
Standard Grab (Non-Cradle)	No Wings	Reduced Capacity (-20%). Lack of support bends the link. You MUST reduce the sling's WLL by 20% for safety.

Technical Specifications

Item No.	Chain Size (mm)	WLL (ton)	Main Dimensions (mm)					Weight (kg)	Product Code
Item No.	Chain Size (mm)	WLL (ton)	A	B	E	M	L	Weight (kg)	Product Code
10-CGK-06	6	1.4	7.5	32	8	43.5	77.3	0.22	505005006
10-CGK-08	8	2.5	9.5	36	11	54	93	0.34	505005008
10-CGK-10	10	4	12.5	46	13.5	72	127	0.82	505005010
10-CGK-13	13	6.7	15	59	15	96	164	1.75	505005013
10-CGK-16	16	10	18.5	70	19	115	188	2.88	505005016
10-CGK-20	20	16	24	85	24	142	221	4.84	505005020
10-CGK-22	22	19	27	100	27	159	260	8.3	505005022
10-CGK-26	26	26.5	30	110	34	190	320	13.7	505005026
10-CGK-32	32	40	35	150	41	229	378	25.5	505005032

Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.

What Does "Grade 100" Mean?

High-Strength Alloy: Heat-treated, quenched, and tempered steel.
Increased Capacity: Typically 25% higher WLL than Grade 80.
Safety Factor: Minimum breaking force ≈ 4 × WLL.
Standards: EN 818-4 / EN 818-6, ASTM equivalents.

Common Sling Components

1. Master Links

Used to connect the sling to the crane hook.

Master Link (ML)
Master Link Assembly (2-leg, 3-leg, 4-leg)
Pear-shaped master links

2. Hooks

End fittings for attaching loads.

Clevis Self-Locking Hook (Common)
Eye Self-Locking Hook
Sling Hook with Latch
Foundry Hook
Shortening Hook (Eye/Clevis)

3. Connecting Links

Used to join chain or components.

Clevis Connector
Hammerlock / Coupling Link
Repair Link (Special use only)

4. Special Components

For complex rigging scenarios.

Swivels (Bearing/Non-bearing)
Chain Adjusters
Lifting Rings (Rotating)
Grab Hooks

Grade 80 vs Grade 100 (Quick Comparison)

Item	Grade 80	Grade 100
Relative Strength	Base	+25% Higher
Sling Weight	Heavier	Lighter
Typical Marking	G80 / 8	G100 / 10
Cost	Lower	Higher

Identification & Markings

Every Grade 100 component must be clearly marked with:

Grade: G100 or 10
Manufacturer's Mark
Size or WLL
Traceability Code (Batch / Heat Number)

⚠️ Safety & Compatibility Warning

❌ NEVER mix Grade 100 with Grade 80 components in the same sling assembly.
✅ Use only Grade 100 chain + Grade 100 fittings together.
Regularly inspect for wear (>10%), cracks, deformation, heat damage, or corrosion.
