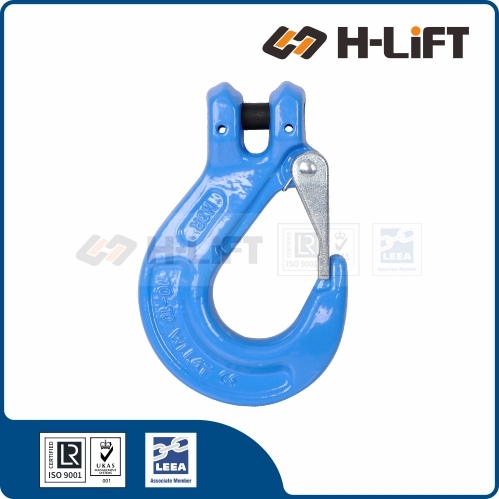

Grade 100 Clevis Sling Hook with Safety Latch CSH type

Item No.: 505003

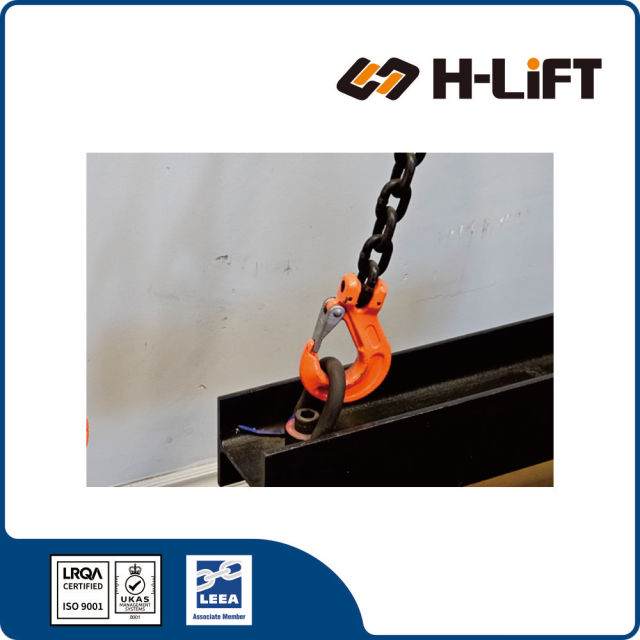

A clevis hook with safety latch comes with a clevis and bolt or pin at the base. The clevis is used to fasten the hook to a bracket or chain.
Safety latch attached with hook to prevent from disengaging.
Description
Description

H-Lift Grade 100 Clevis Sling Hook with Safety Latch, CSH type:

  • Lifting chain is attached directly to the hook without a connecting link.
  • Approximately 25% stronger than Grade 80.
  • Quenched & Tempered.
  • 100% Magnaflux Crack Detection.
  • Fatigue tested at 1.5 times the Working Load Limit for 20000 cycles.
  • Standard: EN 1677
  • Material: forged alloy steel
  • Proof Load: 2.5 times the Working Load Limit
  • Safety Factor: 4:1
  • Surface Finish: powder coated.
Grade 100 Alloy Chain Fittings

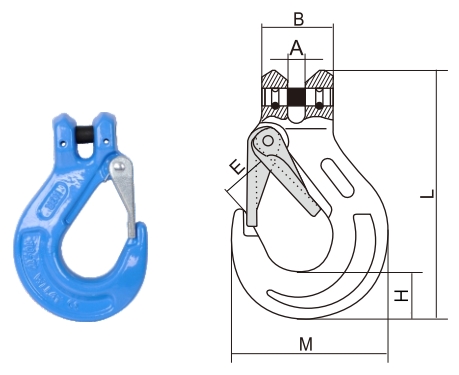

Grade 100 Clevis Sling Hook With Latch
Grade 100 Alloy Fittings
Load Pin for Sling Hook
Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton A B E H M L kg
10-CSH-06 6 1.4 7.5 32 18.5 21 68.5 109 0.33 505003006
10-CSH-08 8 2.5 9.5 37 25 27.5 88 134 0.7 505003008
10-CSH-10 10 4 12 48 28 33.5 105.5 161.5 1.3 505003010
10-CSH-13 13 6.7 15 59 38 42 134 203 2.3 505003013
10-CSH-16 16 10 18.5 70 44 50 160.5 248 3.6 505003016
10-CSH-20 20 16 25 85 52 56 190.5 297 7 505003020
10-CSH-22 22 19 27 100 66 62 214.5 326 12.1 505003022



Load Pin For Sling Hook/CSH, Grab Hook/CGK And Self Locking Hook/CSK

Item No. Chain Size Item No. Chain Size
mm mm
10-SP-CH-06 6 10-SP-CH-16 16
10-SP-CH-08 8 10-SP-CH-20 20
10-SP-CH-10 10 10-SP-CH-22 22
10-SP-CH-13 13 / /
