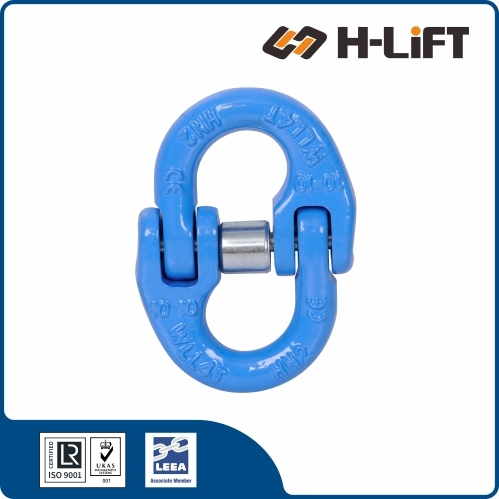

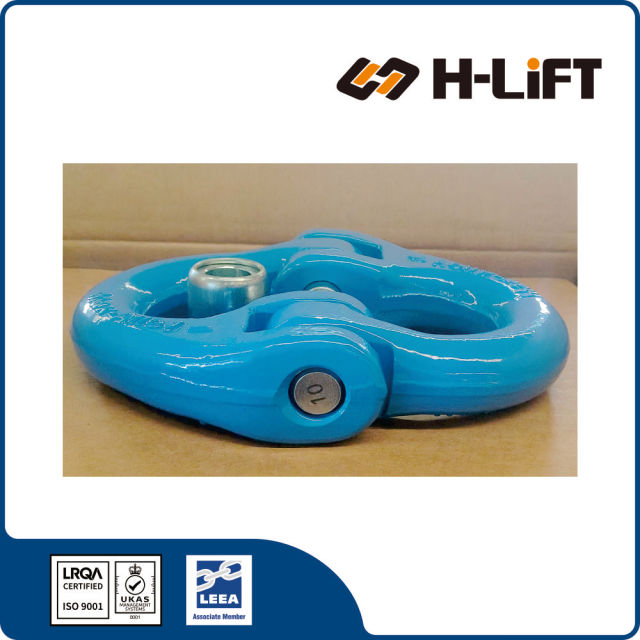

Grade 100 Connecting Link CNL type

Name: Grade 100 Connecting Link CNL type
Brand: H-Lift Industries Co Ltd
SKU: 505001
Availability: InStock
Rating: 5 (1 reviews)

No.505001

The Grade 100 Connecting Link (CNL Type) is an essential mechanical coupling device widely utilized in chain slings to securely connect master links, lifting chains, and various hooks together.

Mechanical Assembly: Consists of two symmetrical forged halves joined by a structural pin and secure retaining spring, allowing for easy on-site assembly without special tools.
Versatile Connection: Engineered specifically to connect Grade 100 chains to oblong master links, eye hooks, and other lifting components in multi-leg sling setups.
Grade 100 Strength: Manufactured from quenched and tempered forged alloy steel, delivering at least 25% greater Working Load Limit (WLL) than traditional Grade 80 connecting links.
Reliable Performance: Subjected to 100% magnaflux crack detection, offering a 4:1 safety factor, and typically finished with a durable blue powder coating for easy identification.

Technical Data
G-100 Alloy Fittings

Grade 100 Connecting Link / Hammerlock - CNL Type

Universal Connector for Grade 100 Chain Slings

Grade 100 Alloy Steel Hammerlock +25% WLL Capacity EN 1677-1

*Universal connector for chain, hooks, and master links

Product Features

The Universal Connector: The CNL Connecting Link (often called a Hammerlock) is the standard component for assembling chain slings. It is used to attach the chain leg to the master link at the top, and to eye-type hooks or shackles at the bottom.
Grade 100 Performance: Manufactured from premium G100 alloy steel, offering 25% higher capacity than Grade 80 links. This allows for a more compact connector that fits into tighter spaces while handling heavier loads.

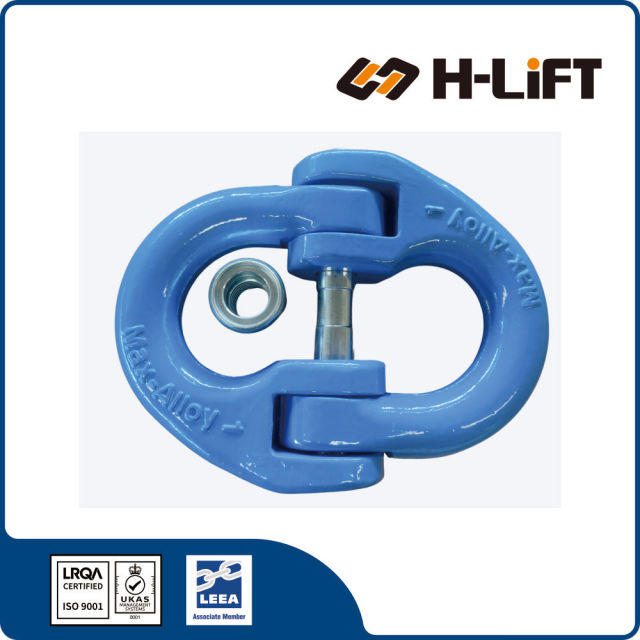

Easy Assembly: Designed for quick, on-site assembly using just a hammer and punch. The load pin and locking sleeve (bush) create a secure, tamper-resistant connection that can be disassembled if needed.
Wide Compatibility: Fits all Grade 100 chain sizes and matches the strength of G100 master links, hooks, and fittings.
Safety Factor: Design Factor of 4:1 for chain sling applications.
Standard: Compliant with EN 1677-1 and ASTM A952.

Hammerlock Selection: Grade 100 vs. Grade 80

Series	Strength	Matching Chain
Grade 100 (CNL) (This Product)	High Strength	Use with G100 Chain. Essential for maintaining the 25% extra capacity of G100 slings. Do not mix with G80.
Grade 80 (Standard) (Standard Link)	Standard	Use with G80 Chain. Standard industry workhorse. Do not use with G100 chain (it will be the weak link).

Technical Specifications

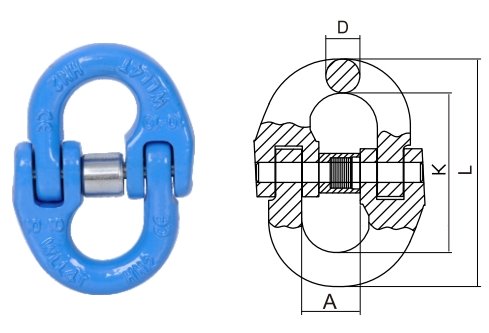

Item No.	Chain Size (mm)	WLL (ton)	Main Dimensions (mm)				Weight (kg)	Product Code
Item No.	Chain Size (mm)	WLL (ton)	D	A	K	L	Weight (kg)	Product Code
10-CNL-06	6	1.4	7	14	44.5	61.5	0.08	505001006
10-CNL-08	8	2.5	10	18.5	63	84	0.18	505001008
10-CNL-10	10	4	12.6	23	71	96.2	0.34	505001010
10-CNL-13	13	6.7	16.5	28	92.5	125	0.68	505001013
10-CNL-16	16	10	20	33.5	106.5	147	1.22	505001016
10-CNL-20	20	16	25	42	123	172	2.13	505001020
10-CNL-22	22	19	27	48	137.5	191	3	505001022
10-CNL-26	26	26.5	32	61	163	229	5.22	505001026
10-CNL-32	32	40	40	80	197	279	9.55	505001032

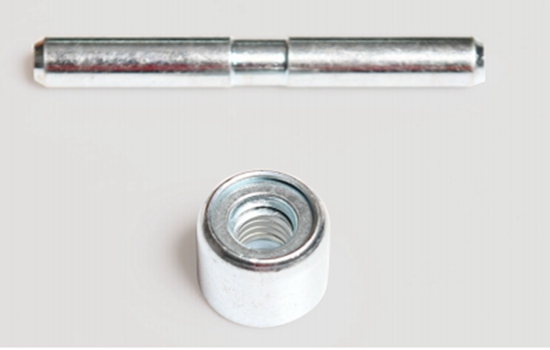

Spare Parts: Load Pins & Sleeves

Item No.	Chain Size (mm)	Item No.	Chain Size (mm)
10-SP-CNL-B-06	6	10-SP-CNL-B-18	18
10-SP-CNL-B-08	8	10-SP-CNL-B-20	18+20
10-SP-CNL-B-10	10	10-SP-CNL-B-22	22
10-SP-CNL-B-13	13	10-SP-CNL-B-26	26
10-SP-CNL-B-16	16	10-SP-CNL-B-32	32

Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.

What Does "Grade 100" Mean?

High-Strength Alloy: Heat-treated, quenched, and tempered steel.
Increased Capacity: Typically 25% higher WLL than Grade 80.
Safety Factor: Minimum breaking force ≈ 4 × WLL.
Standards: EN 818-4 / EN 818-6, ASTM equivalents.

Common Sling Components

1. Master Links

Used to connect the sling to the crane hook.

Master Link (ML)
Master Link Assembly (2-leg, 3-leg, 4-leg)
Pear-shaped master links

2. Hooks

End fittings for attaching loads.

Clevis Self-Locking Hook (Common)
Eye Self-Locking Hook
Sling Hook with Latch
Foundry Hook
Shortening Hook (Eye/Clevis)

3. Connecting Links

Used to join chain or components.

Clevis Connector
Hammerlock / Coupling Link
Repair Link (Special use only)

4. Special Components

For complex rigging scenarios.

Swivels (Bearing/Non-bearing)
Chain Adjusters
Lifting Rings (Rotating)
Grab Hooks

Grade 80 vs Grade 100 (Quick Comparison)

Item	Grade 80	Grade 100
Relative Strength	Base	+25% Higher
Sling Weight	Heavier	Lighter
Typical Marking	G80 / 8	G100 / 10
Cost	Lower	Higher

Identification & Markings

Every Grade 100 component must be clearly marked with:

Grade: G100 or 10
Manufacturer's Mark
Size or WLL
Traceability Code (Batch / Heat Number)

⚠️ Safety & Compatibility Warning

❌ NEVER mix Grade 100 with Grade 80 components in the same sling assembly.
✅ Use only Grade 100 chain + Grade 100 fittings together.
Regularly inspect for wear (>10%), cracks, deformation, heat damage, or corrosion.
