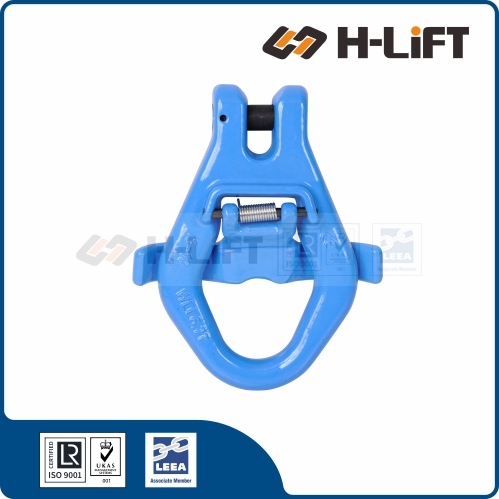

The Grade 100 Container Lifting Clevis Link (CLK Type) is a specialized coupling component designed specifically for connecting the chain elements required in container handling operations.
*Spring-loaded pin prevents accidental disengagement
| Type | Connection | Safety Feature |
|---|---|---|
| Locking Clevis Link (CLK) (This Product) |
Direct Chain | Secure Lock Won't Fall Out. Spring pin locks the hook into the corner. Safe even if the chain goes slack. |
| Standard Eye Hook (Foundry/C-Hook) |
Needs Connector | Risk of Drop Gravity Only. Relies on tension to stay in the hole. Can easily fall out if the load bumps or slackens. |
| Item No. | Chain Size (mm) |
WLL (ton) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | H | L | |||||
| 10-CLK-13 | 13 | 6.7 | 15.5 | 60 | 71.5 | 104 | 195 | 1.9 | 505012013 |
Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.
Used to connect the sling to the crane hook.
End fittings for attaching loads.
Used to join chain or components.
For complex rigging scenarios.
| Item | Grade 80 | Grade 100 |
|---|---|---|
| Relative Strength | Base | +25% Higher |
| Sling Weight | Heavier | Lighter |
| Typical Marking | G80 / 8 | G100 / 10 |
| Cost | Lower | Higher |
Every Grade 100 component must be clearly marked with:
