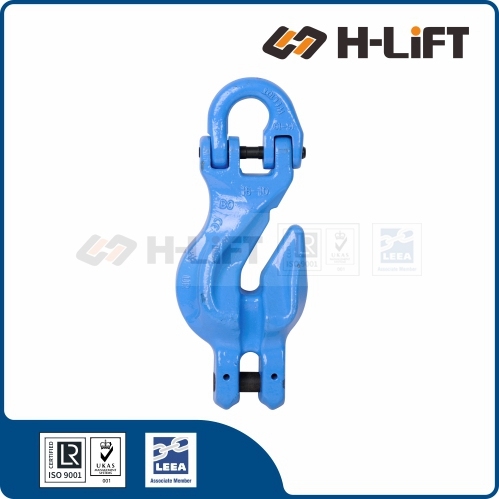

Grade 100 Half Link Shortening Hook with Clevis Attachment HSC type

Item No.: 505014
This hook avoids the extra chain connector in the shortening link and the extra chain connector to the master link. In addition, this turns the entire chain shortening link by 90° which makes it much easier to handle the chain for shortening.
Description Grade 100 Sling Components
Description

H-Lift Grade 100 Half Link Shortening Hook With Clevis Attachment, HSC type:

  • Designed to avoid the extra chain connector in the shortening link and extra chain connector to the master link.
  • Approximately 25% stronger than Grade 80.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Fatigue tested at 1.5 times of Working Load Limit for 20000 cycles.
  • Standard: EN 1677
  • Material: forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated

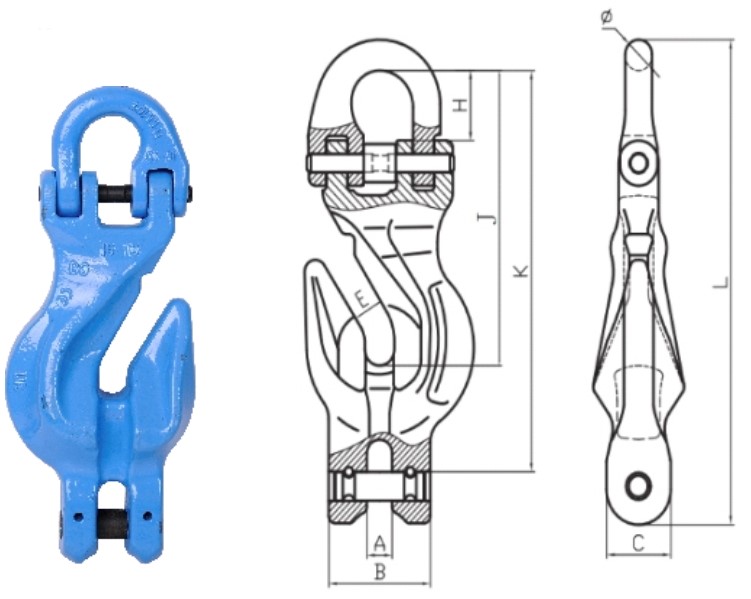

G-100 Half Link Shortening Hook with Clevis Attachment HSC

G-100 Alloy Chain Fittings



Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton A B C E H L K J φ kg
10-HSC-06 6 1.4 8 32 18 8.3 16 128.7 104.7 80 7 0.366 505014006
10-HSC-08 8 2.5 9.5 37 24 10.5 25 165 136 100 10 0.79 505014008
10-HSC-10 10 4 12.5 48 29.5 13 28 203 167 123 12.6 1.522 505014010
10-HSC-13 13 6.7 16 59 37 15.5 37 269 223 163 16.5 3.372 505014013
10-HSC-16 16 10 18.5 70 46 18.5 40 328 271 194 20 5.67 505014016
10-HSC-20 20 16 24 85 52 25 46 398 328 247 25 9.79 505014020
10-HSC-22 22 19 25 100 61 26.5 51.5 430 354 258 27 14.62 505014022
Grade 100 Sling Components

Grade 100 sling components are high-strength lifting and rigging components designed for heavy-duty lifting applications. These components are typically used in combination to create robust and reliable lifting slings. Grade 100 refers to the material strength and load-bearing capacity of these components. Here are some common Grade 100 sling components:

  • Grade 100 Chain: Grade 100 chains are the primary load-bearing element in many lifting slings. They are designed to have a working load limit (WLL) that is 25% of their minimum break strength (MBS), making them suitable for lifting heavy loads.
  • Master Links: Grade 100 master links are used to connect chains and other components within the sling assembly. They are often the central attachment point for the load.
  • Hooks: Grade 100 hooks are essential for connecting the sling to the load or anchor point. They come in various styles, including clevis hooks, grab hooks, and eye hooks, to suit different applications.
  • Chain Slings: Chain slings are assemblies made from Grade 100 chain, master links, and hooks. They come in different configurations, such as single-leg, double-leg, and multiple-leg slings, depending on the lifting requirements.
  • Shortening Clutches: Shortening clutches are used to adjust the length of chain slings, allowing for better load positioning and balance.
  • Connecting Links: Grade 100 connecting links are used to connect different sling components or to create adjustable sling configurations.
  • Sling Tags: These tags provide important information about the sling's specifications, including its working load limit, material grade, and inspection guidelines.
  • Load Binders: Grade 100 load binders are used to secure and tension chains for load restraint applications, such as securing cargo on trucks and trailers.
  • Chain and Hook Accessories: Accessories like chain protectors, latch kits, and safety pins are used to enhance the safety and usability of Grade 100 chains and hooks.


Grade 100 sling components are known for their exceptional strength and durability. When using them in lifting applications, it's crucial to follow safety guidelines, perform regular inspections, and adhere to industry standards. Proper maintenance and usage are essential to ensure the safety and reliability of the lifting sling and to prevent accidents or injuries during lifting operations.
