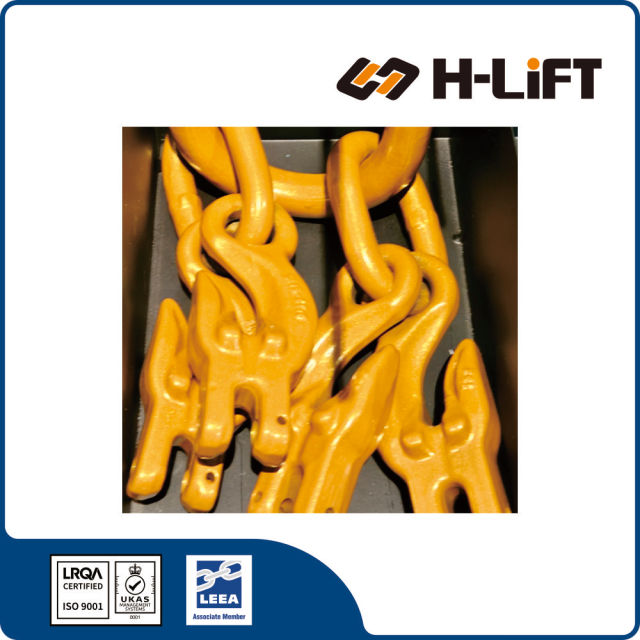

Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type
Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type
  • Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type
  • Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type

Grade 100 Master Link Assembly with Integrated Shortening Hooks, MAQ type

Item No.: 505030
Grade 100 Master Link Assembly with Integrated Shortening Hooks allows for easy adjustment of chain lengths of various sling legs to accommodate uneven pick points.
Request Quote
Description
Description

H-Lift Grade 100 Master Link Assembly with Integrated Shortening Hooks for 3-4 legs, MAQ type features:



  • Fully integrated eye grab hooks and master link. The hooks functions as both connecting links and shorteners.
  • Speedy assembly.
  • Cost effective.
  • Approximately 25% stronger than Grade 80.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Fatigue tested at 1.5 times the Working Load Limit for 20000 cycles.
  • Standard: EN 1677
  • Material: alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated.

G-100 Chain Sling Components

Item No. Chain Size WLL PARTS Weight Product Code
mm ton 1 2 kg
10-MAQ-06 6 3.0 10-MLY-06 10-EGC-06 X 4 2.5 505030006
10-MAQ-08 8 5.3 10-MLY-08 10-EGC-08 X 4 5.09 505030008
10-MAQ-10 10 8.4 10-MLY-10 10-EGC-10 X 4 9.02 505030010
10-MAQ-13 13 14 10-MLY-13 10-EGC-13 X 4 15.94 505030013
10-MAQ-16 16 21.2 10-MLY-16 10-EGC-16 X 4 28.1 505030016
