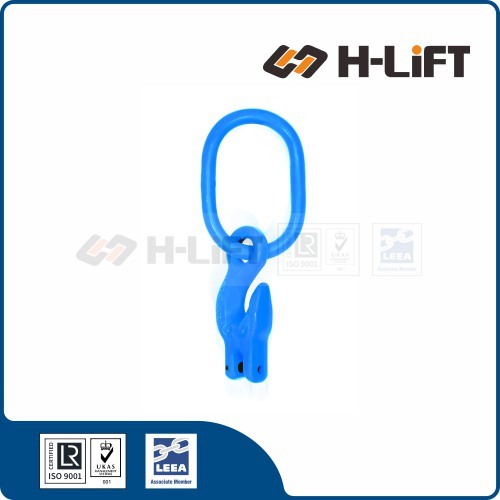

Grade 100 Master Link with Integrated Shortening Hook, MLS type
Grade 100 Master Link with Integrated Shortening Hook, MLS type Grade 100 Master Link with Integrated Shortening Hook, MLS type Grade 100 Master Link with Integrated Shortening Hook, MLS type
  • Grade 100 Master Link with Integrated Shortening Hook, MLS type

Grade 100 Master Link with Integrated Shortening Hook, MLS type

Item No.: 505028
Grade 100 Master Link with Integrated Shortening Hooks allows for easy adjustment of chain lengths of various sling legs to accommodate uneven pick points.
Request Quote
Description
Description

H-Lift Grade 100 Master Link with Integrated Shortening Hook for 1 leg, MLS type features:



  • Fully integrated eye grab hook and master link.
  • The hook functions as both a connecting link and shortener
  • Speedy assembly.
  • Cost effective.
  • Approximately 25% stronger than Grade 80.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Fatigue tested at 1.5 times the Working Load Limit for 20000 cycles.
  • Standard: EN 1677
  • Material: alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated.
Grade 100 Alloy Chain Fittings

Item No. Chain Size WLL Part 1 Main Dimensions(mm) Part 2 Weight Product Code
mm ton A B D kg
10-MLS-06 6 1.4 110 60 13 10-EGC-06 0.64 505028006
10-MLS-08 8 2.5 120 70 14 10-EGC-08 1.12 505028008
10-MLS-10 10 4 140 80 17 10-EGC-10 2.08 505028010
10-MLS-13 13 6.7 160 95 22 10-EGC-13 3.84 505028013
10-MLS-16 16 10 190 110 25 10-EGC-16 6.75 505028016
10-MLS-20 20 16 230 130 32 10-EGC-20 13.47 505028020
