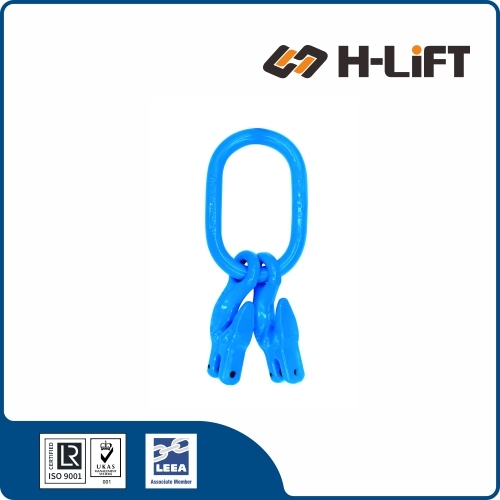

The Grade 100 Master Link with Integrated Shortening Hooks (MLD Type) is a specialized top rigging component engineered specifically for 2-leg chain sling assemblies.
*Integrated hooks simplify 2-leg sling assembly
| Method | Parts Count | Why Choose This? |
|---|---|---|
| Integrated (MLD) (This Product) |
1 Component | Compact & Light. Hooks are built into the ring. Best for portability and low-headroom lifts. |
| Traditional Build (Standard Parts) |
5 Components (1 Ring + 2 Connectors + 2 Hooks) |
Modular maintenance. Allows individual part replacement, but is heavier and longer. |
| Item No. | Chain Size (mm) |
WLL (ton) |
Master Link Dimensions (mm) | Included Shortener | Weight (kg) |
Product Code | ||
|---|---|---|---|---|---|---|---|---|
| A | B | D | ||||||
| 10-MLD-06 | 6 | 2 | 120 | 70 | 14 | 10-EGC-06 X 2 | 1.04 | 505029006 |
| 10-MLD-08 | 8 | 3.55 | 140 | 80 | 17 | 10-EGC-08 X 2 | 2.12 | 505029008 |
| 10-MLD-10 | 10 | 5.6 | 160 | 95 | 22 | 10-EGC-10 X 2 | 4.15 | 505029010 |
| 10-MLD-13 | 13 | 9.5 | 190 | 110 | 25 | 10-EGC-13 X 2 | 7 | 505029013 |
| 10-MLD-16 | 16 | 14 | 230 | 130 | 32 | 10-EGC-16 X 2 | 13.48 | 505029016 |
Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.
Used to connect the sling to the crane hook.
End fittings for attaching loads.
Used to join chain or components.
For complex rigging scenarios.
| Item | Grade 80 | Grade 100 |
|---|---|---|
| Relative Strength | Base | +25% Higher |
| Sling Weight | Heavier | Lighter |
| Typical Marking | G80 / 8 | G100 / 10 |
| Cost | Lower | Higher |
Every Grade 100 component must be clearly marked with:
