This Grade 100 Oversized Master Link Assembly (OMA Type) is engineered with extra-large dimensions to easily accommodate oversized crane hooks, making it an ideal choice for complex 3-leg and 4-leg chain or wire rope sling configurations.
In heavy mobile crane operations, offshore rigging, shipyard modular lifts, and high-tonnage industrial material handling, standard master link assemblies often fail to fit over large DIN or rams-horn crane hooks. Forcing a tight master link onto an oversized crane hook saddle causes severe pinching, side-loading, and dangerous stress concentrations.

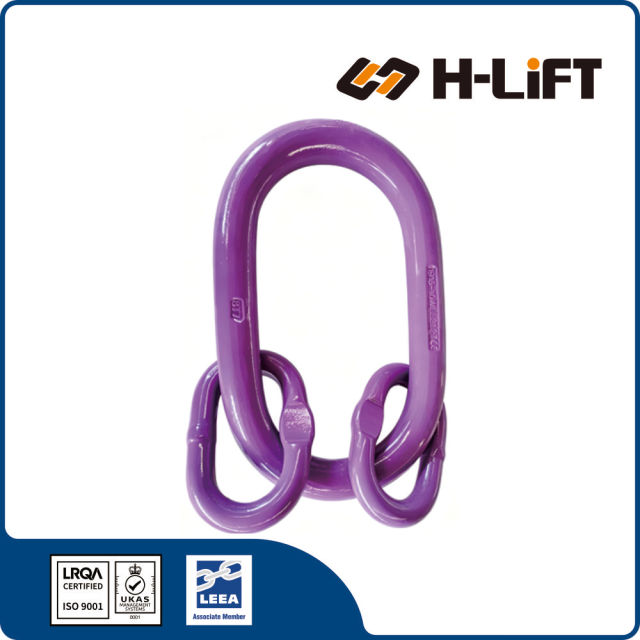

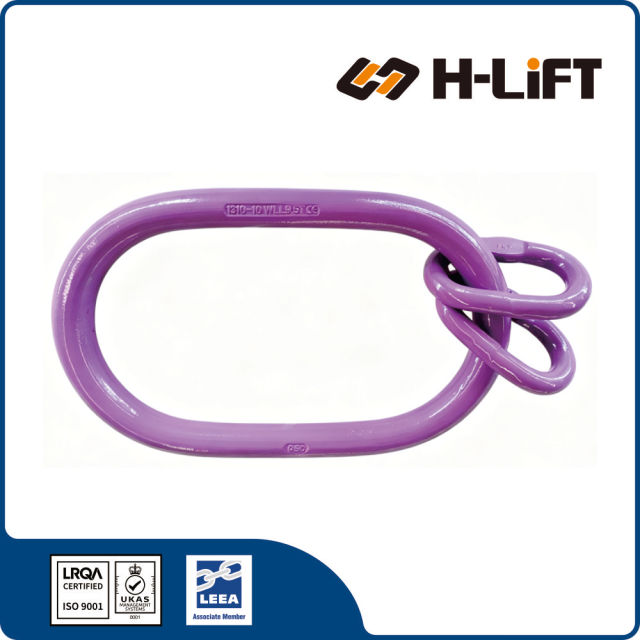

The H-Lift Grade 100 Oversized Master Link Assembly (OMA Type) solves this physical fitting bottleneck by pairing an extra-large primary master link with two engineered sub-links (intermediate links), providing ample inner bowl clearance for large crane hooks while ensuring 2-leg, 3-leg and 4-leg chain slings track naturally along balanced load planes.
| Item No. | WLL (ton) |

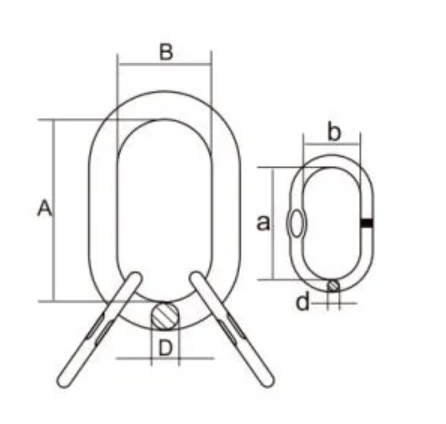

Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | D | a | b | d | ||||
| 10-OMA-0806 | 3.55 | 340 | 180 | 23 | 75 | 35 | 14 | 3.57 | 5050350806 |
| 10-OMA-1008 | 5.6 | 340 | 180 | 27 | 80 | 40 | 16 | 5.1 | 5050351008 |
| 10-OMA-1310 | 9.5 | 340 | 180 | 33 | 100 | 45 | 20 | 8 | 5050351310 |
| 10-OMA-1613 | 14 | 340 | 180 | 40 | 115 | 50 | 25 | 12.8 | 5050351613 |
| 10-OMA-1916 | 21.2 | 340 | 180 | 45 | 140 | 70 | 28 | 15.9 | 5050351916 |
