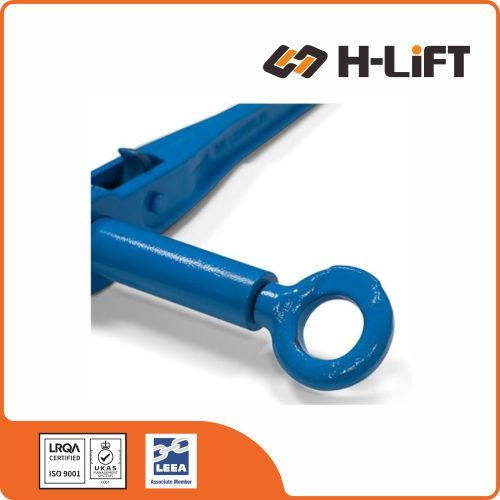

The Grade 100 Ratchet Load Binder without Links or Hooks (RLWL Type) is a heavy-duty chain tensioning device designed for high-strength load securement in trucking, flatbed trailers, and specialized cargo transport scenarios.
*Bare body allows attachment of custom fittings
| Model | Components | Best Application |
|---|---|---|
| Body Only (This Product) |
No Hooks | Custom / Repair. Use this if you need to weld specific ends or bolt on custom fittings (shackles, eyes). |
| Standard Binder (Complete Unit) |
Grab Hooks Included | Ready to Use. Comes pre-assembled with Grab Hooks for standard chain lashing. No assembly required. |
| Item No. | Size (mm) |
LC (kN) |
BF (kN) |
Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | Φ | Φ1 | L | Lmin | Lmax | ||||||
| RLWL08 | 8 | 50 | 100 | 50.5 | 56 | 25 | 383 | 340 | 500 | 2.6 | 411103008 |
| RLWL10 | 10 | 80 | 160 | 66 | 65 | 34 | 388.6 | 376 | 536 | 4.3 | 411103010 |
| RLWL13 | 13 | 134 | 268 | 81 | 69 | 43.5 | 392.5 | 395 | 555 | 5 | 411103013 |
The relevant standard is BS EN 12195-3: 2001. This requires:
Note: Lashing Capacity (LC) is expressed in daN (decaNewton). 1 daN ≈ 1 kg.
Ensure the load binder (tensioner) is free to align and not bent over an edge. The chain must not be twisted. Hooks must engage correctly. Sharp Edges: If using over small radius edges without protection, the lashing capacity MUST be reduced according to manufacturer instructions.
Hydrogen Embrittlement: Never expose chains to acids. If contaminated, clean with clear water and dry naturally.
Rejection Criteria: Do not use if you find illegible markings, bent/elongated links, distorted hooks, or missing safety latches.
Storage: Store in a clean, dry area, hanging up if possible to prevent corrosion and contamination.
