Name: Grade 100 Swivel Self Locking Hook SSK Type
Brand: H-Lift Industries Co Ltd
SKU: 505008
Availability: InStock
Rating: 5 (1 reviews)

No.505008

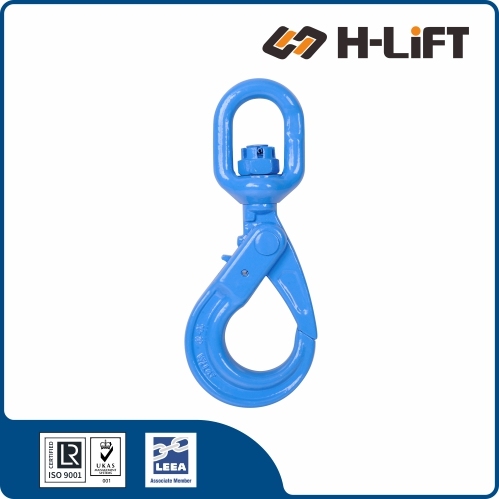

The Grade 100 Swivel Self-Locking Hook (SSK Type) is a highly secure lifting hook designed with a rotating top and an automatic locking mechanism to ensure maximum load safety during overhead lifts.

Swivel Positioning: Equipped with a rotating top ring that allows operators to easily align the hook before lifting, preventing twisted lifting chains.
Automatic Locking: The heavy-duty latch automatically closes and locks the moment tension is applied, securely capturing the load.
Manual Trigger Release: Engineered so the hook can only be opened by manually pressing the release trigger, eliminating the risk of accidental detachment.
Grade 100 Strength: Manufactured from premium alloy steel, providing up to 25% higher lifting capacity compared to standard Grade 80 hooks of the same size.

Technical Data
G-100 Alloy Fittings

Grade 100 Swivel Self-Locking Hook - SSK Type

Automatic Safety Lock with Positioning Swivel

Grade 100 Alloy Steel Positioning Swivel Automatic Locking EN 1677-3

*Swivel eye for easy alignment (Positioning Only)

Product Features

Automatic Locking: The hook automatically closes and locks as soon as the load is lifted. It cannot open under load, providing maximum safety for critical overhead operations.
Swivel Positioning: The rotating eye aligns the hook with the load point before lifting. This prevents the chain or wire rope sling from twisting or kinking during setup.
Trigger Release: Features a recessed trigger mechanism that is easy to operate (even with gloves) when releasing the load, but fully protected against accidental activation.
Rotation Note: This is a Positioning Swivel. It is designed to align the hook, NOT to rotate continuously while under full load (for that application, use the Bearing Swivel SSB type).

Selection: Positioning (SSK) vs. Bearing (SSB)

Model	Mechanism	Can I Rotate Under Load?
SSK Type (This Product)	Washer / Bushing	NO. (✘) Positioning only. Rotate to align the hook before lifting. Do not rotate while lifting.
SSB Type (Bearing Model)	Ball Bearing	YES. (✔) Designed to rotate freely under full load. Prevents wire rope from twisting.

Technical Specifications

Item No.	Chain Size (mm)	WLL (ton)	Main Dimensions (mm)							Weight (kg)	Product Code
Item No.	Chain Size (mm)	WLL (ton)	B	C	D	E	H	M	L	Weight (kg)	Product Code
10-SSK-06	6	1.4	32.5	23	11.5	27	20	70	184	0.6	505008006
10-SSK-08	8	2.5	36	27.5	13	35	25	90	226	1.1	505008008
10-SSK-10	10	4	42	33	15.5	43	28	108	269	2	505008010
10-SSK-13	13	6.7	50	39	17	51.5	40	137.5	327	4	505008013
10-SSK-16	16	10	70	56	21.5	59	49.5	170.5	413	6.8	505008016
10-SSK-20	20	16	72	61	26	74.5	61	191.5	460	12.5	505008020
10-SSK-22	22	19	97	96	33	78	65	205	566	17.1	505008022

Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.

What Does "Grade 100" Mean?

High-Strength Alloy: Heat-treated, quenched, and tempered steel.
Increased Capacity: Typically 25% higher WLL than Grade 80.
Safety Factor: Minimum breaking force ≈ 4 × WLL.
Standards: EN 818-4 / EN 818-6, ASTM equivalents.

Common Sling Components

1. Master Links

Used to connect the sling to the crane hook.

Master Link (ML)
Master Link Assembly (2-leg, 3-leg, 4-leg)
Pear-shaped master links

2. Hooks

End fittings for attaching loads.

Clevis Self-Locking Hook (Common)
Eye Self-Locking Hook
Sling Hook with Latch
Foundry Hook
Shortening Hook (Eye/Clevis)

3. Connecting Links

Used to join chain or components.

Clevis Connector
Hammerlock / Coupling Link
Repair Link (Special use only)

4. Special Components

For complex rigging scenarios.

Swivels (Bearing/Non-bearing)
Chain Adjusters
Lifting Rings (Rotating)
Grab Hooks

Grade 80 vs Grade 100 (Quick Comparison)

Item	Grade 80	Grade 100
Relative Strength	Base	+25% Higher
Sling Weight	Heavier	Lighter
Typical Marking	G80 / 8	G100 / 10
Cost	Lower	Higher

Identification & Markings

Every Grade 100 component must be clearly marked with:

Grade: G100 or 10
Manufacturer's Mark
Size or WLL
Traceability Code (Batch / Heat Number)

⚠️ Safety & Compatibility Warning

❌ NEVER mix Grade 100 with Grade 80 components in the same sling assembly.
✅ Use only Grade 100 chain + Grade 100 fittings together.
Regularly inspect for wear (>10%), cracks, deformation, heat damage, or corrosion.
