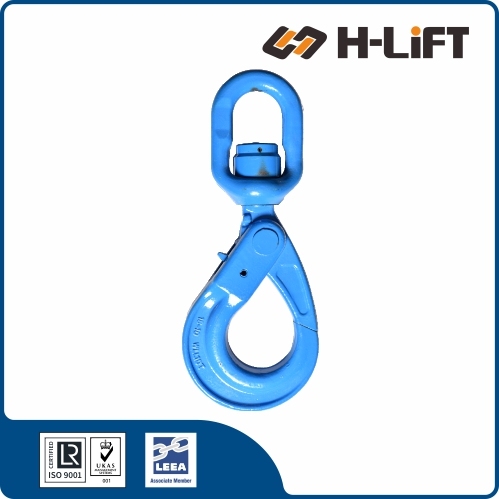

Name: Grade 100 Swivel Self Locking Hook with Bearing SSB Type
Brand: H-Lift Industries Co Ltd
SKU: 505009
Availability: InStock
Rating: 5 (1 reviews)

No.505009

The Grade 100 Swivel Self Locking Hook with Bearing (SSB Type) is a premium lifting hook combining a 360° swivel and automatic self-locking latch to prevent chain twist and accidental unhooking under load.

360° Swivel with Bearing: Ball-bearing swivel rotates freely under load, reducing torsion on the chain sling and improving handling safety.
Automatic Self-Locking: The latch locks automatically when loaded and can only be opened manually, ensuring the load stays securely seated in the hook.
Wide Size Range: Available from 6mm (WLL 1.4t) up to 26mm (WLL 26.5t) to suit light, medium, and heavy lifting applications.
Grade 100 Alloy Steel: Manufactured from high-strength alloy steel with a 4:1 safety factor for demanding overhead lifting operations.

Technical Data
G-100 Alloy Fittings

Grade 100 Swivel Self-Locking Hook - SSB Type

Ball Bearing Swivel for Rotation Under Load

Grade 100 Alloy Steel Ball Bearing Swivel +25% WLL Capacity Automatic Locking

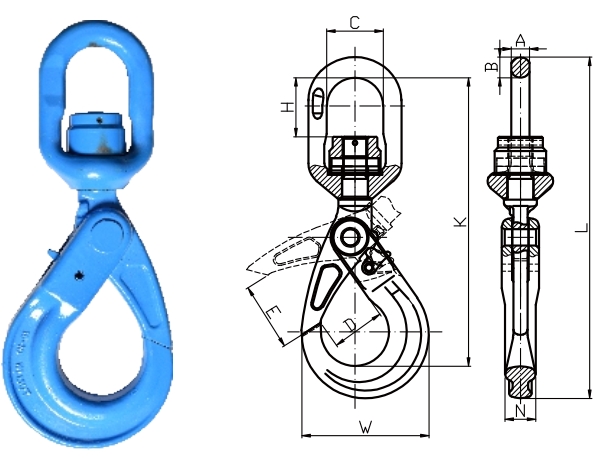

G-100 Swivel Self Locking Hook with Bearing

*Bearing allows full rotation under load

Product Features

Premium Grade 100 Alloy: Manufactured from high-strength Grade 100 alloy steel, offering a 25% higher Working Load Limit (WLL) than Grade 80 hooks of the same size. Allows for lighter, more compact rigging.
Ball Bearing Swivel: Equipped with a high-performance Ball Bearing mechanism. Unlike standard positioning hooks, the SSB type is designed to rotate smoothly while under full load, allowing for precise positioning and preventing dangerous torque buildup.
Wire Rope Protection: Essential for cranes using wire rope. The bearing allows the rope to naturally unwind any twist, preventing "cabling" or damage to the rope structure.
Automatic Self-Locking: The hook closes and locks automatically as soon as the load is lifted. It cannot open while under load, ensuring maximum safety for overhead lifting.
Standard: Compliant with ASTM A952 / EN 1677 standards.

Compare: Grade 100 vs. Grade 80 (Bearing Hooks)

Series	Strength	Advantage
Grade 100 SSB (This Product)	+25% WLL	Heavy Duty & Compact. Lifts more weight with a smaller hook. Best for high-capacity cranes where hook weight matters.
Grade 80 SSB (Standard)	Standard	Cost Effective. Standard lifting capacity. Ideal if size/weight reduction is not a priority.

Technical Specifications

Item No.	Chain Size (mm)	WLL (ton)	Main Dimensions (mm)										Weight (kg)	Product Code
Item No.	Chain Size (mm)	WLL (ton)	A	B	C	D	E	N	H	K	L	W	Weight (kg)	Product Code
10-SSB-06	6	1.4	11.5	13	37	27	30	15	32	163	196.5	70	0.67	505009006
10-SSB-08	8	2.5	13	15	41	35.5	40	20	39	202	243	90	1.21	505009008
10-SSB-10	10	4	15.5	17.5	48	45	48	26	48	244	289	108	2.2	505009010
10-SSB-13	13	6.7	17	19	55	52.5	63	32.5	57	292	351	138	4.4	505009013
10-SSB-16	16	10	21.5	26	62	62	75	38	62	346	422	170	7.48	505009016
10-SSB-20	20	16	26.5	28.5	76	76	80	50	72	396	487	191	13.75	505009020
10-SSB-22	22	19	33	33	97	79	95	52	97	465	563	208	18.81	505009022
10-SSB-26	26	26.5	42	42	123	100	107	60	119	565	688	253	31.4	505009026
10-SSB-32	32	40	52	52	152	135	142	75	153	688	842	329	61	505009032

Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.

What Does "Grade 100" Mean?

High-Strength Alloy: Heat-treated, quenched, and tempered steel.
Increased Capacity: Typically 25% higher WLL than Grade 80.
Safety Factor: Minimum breaking force ≈ 4 × WLL.
Standards: EN 818-4 / EN 818-6, ASTM equivalents.

Common Sling Components

1. Master Links

Used to connect the sling to the crane hook.

Master Link (ML)
Master Link Assembly (2-leg, 3-leg, 4-leg)
Pear-shaped master links

2. Hooks

End fittings for attaching loads.

Clevis Self-Locking Hook (Common)
Eye Self-Locking Hook
Sling Hook with Latch
Foundry Hook
Shortening Hook (Eye/Clevis)

3. Connecting Links

Used to join chain or components.

Clevis Connector
Hammerlock / Coupling Link
Repair Link (Special use only)

4. Special Components

For complex rigging scenarios.

Swivels (Bearing/Non-bearing)
Chain Adjusters
Lifting Rings (Rotating)
Grab Hooks

Grade 80 vs Grade 100 (Quick Comparison)

Item	Grade 80	Grade 100
Relative Strength	Base	+25% Higher
Sling Weight	Heavier	Lighter
Typical Marking	G80 / 8	G100 / 10
Cost	Lower	Higher

Identification & Markings

Every Grade 100 component must be clearly marked with:

Grade: G100 or 10
Manufacturer's Mark
Size or WLL
Traceability Code (Batch / Heat Number)

⚠️ Safety & Compatibility Warning

❌ NEVER mix Grade 100 with Grade 80 components in the same sling assembly.
✅ Use only Grade 100 chain + Grade 100 fittings together.
Regularly inspect for wear (>10%), cracks, deformation, heat damage, or corrosion.
