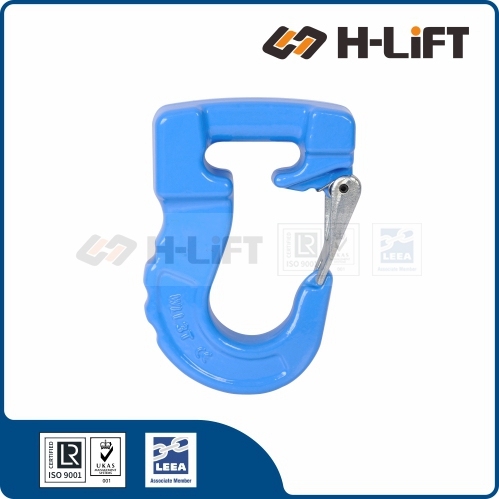

Grade 100 Synthetic Sling Joker Hook SSH type

Description

Grade 100 Synthetic Sling Hook(Joker Hook), SSH type:

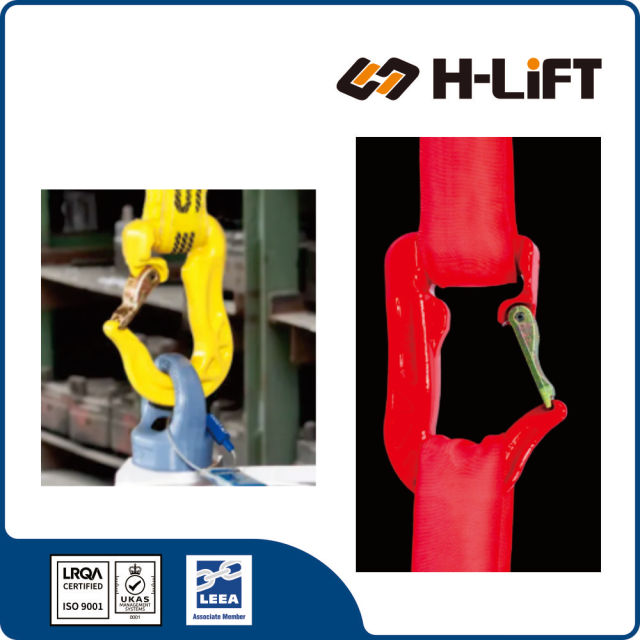

Joker Hooks are the ideal complement to your round and flat slings. They can either be used to extend the length of slinging gear or as terminal hooks which guarantee a secure connection at anchor points.
Designed for using with webbing slings and roundslings.
Enlarged shoulder areas to protect slings from chaffing.

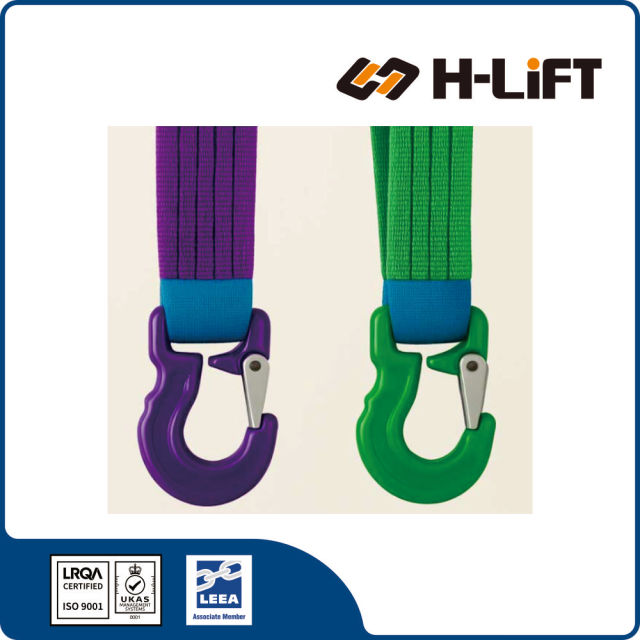

Colour coded to the lifting sling.
Quenched & tempered.

100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times the Working Load Limit for 20000 cycles.
Standard: EN 1677
Material: forged alloy steel
Proof load: 2.5 times the Working Load Limit
Safety factor: 4:1
Surface finish: powder coated

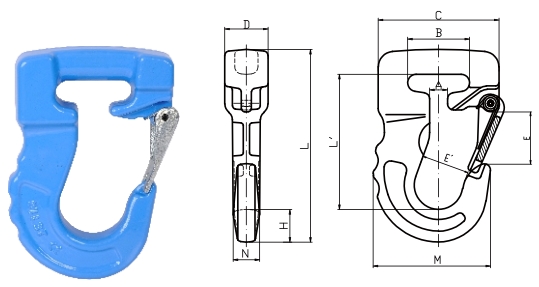

Grade 100 Synthetic Sling Hook(Joker Hook)

Item No.	WLL	BL	Main Dimensions(mm)											Weight	Product Code
Item No.	ton	ton	A	B	C	D	M	N	E	E'	L	L'	H	kg	Product Code
10-SSH-01	1	4	11.5	40	78	28	75.7	17	33	30	124	87	21	0.73	505020001
10-SSH-02	2	8	18.5	44.5	91	35	90	21	40	39	148	103	27	1.27	505020002
10-SSH-03	3	12	21.5	54	114	45	110	26	41	48	175	115	33	2.3	505020003
10-SSH-04	4	16	40.5	76	133	56	139	32	50.5	60	223.5	147	40.5	4.73	505020004
10-SSH-05	5	20	40.5	76	133	56	139	32	50.5	60	223.5	147	40.5	4.73	505020005
10-SSH-06	6	24	40.5	76	133	56	139	32	50.5	60	223.5	147	40.5	4.73	505020006
