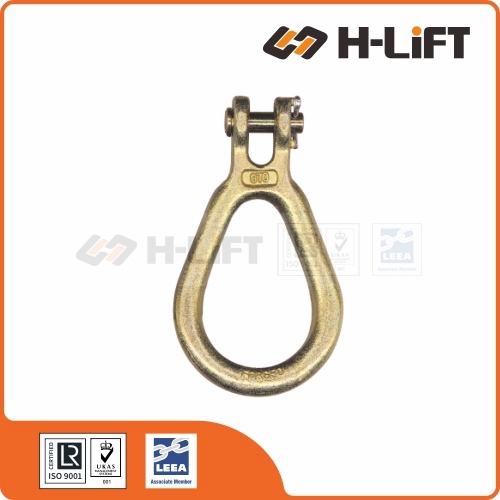

The H-Lift Grade 70 Lug Link is a forged alloy steel clevis connector designed to join Grade 70 transport chain sections or connect chain to anchor points in compliance with AS/NZS 4344.
The Grade 70 Lug Link (also known as a Drag Chain Link) is a versatile anchor point designed for transport and towing applications. Fully compliant with AS/NZS 4344, it serves as a secure termination point or tow loop for drag chains on trailers and machinery. Its large eye allows for easy connection to shackles, hooks, or tow pins.
Manufactured and tested to meet the strict requirements of Australian/New Zealand Standard AS/NZS 4344, ensuring safety and compliance for transport and towing.
Designed as a secure termination point or tow loop. The large, elongated eye design allows for easy attachment of shackles, hooks, or tow balls/pins.
Constructed from high-strength forged alloy steel, quenched and tempered to withstand the shock loads and dragging forces encountered in towing.
Features a durable Gold Chromate finish for superior corrosion resistance and easy visual identification as a Grade 70 component.
Refer to table for dimensions D, H, L, P, R, W| Item No. | Chain Size | Lashing Capacity | Dimensions (mm) | Weight | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (t) | D | H | L | P | R | W | (kg) | ||
| 7-LK-08038 | 8 | 3.8 | 81.6 | 54.6 | 141.4 | 10 | 110.9 | 12.5 | 0.45 | 412004008 |
| 7-LK-10060 | 10 | 6 | 90 | 54.6 | 145.4 | 12 | 109.5 | 13.6 | 0.65 | 412004010 |
| 7-LK-13090 | 13 | 9 | 100 | 60 | 208 | 16 | 162.5 | 17.5 | 1.30 | 412004013 |
The G70 Transport Chain and Fittings range is widely utilized in the transportation industry for heavy-duty load binding, tie-down, and securing applications. Engineered for high performance, these components meet the rigorous requirements of AS/NZS 4344, ensuring safety and reliability in Australia and New Zealand.
Fittings such as hooks, links, and connectors are manufactured to match the G70 chain's performance. They comply with AS/NZS 4344 and feature critical safety elements, such as latch mechanisms on hooks to prevent accidental detachment.
