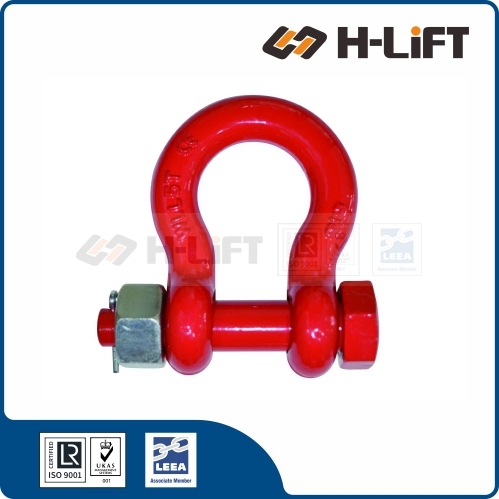

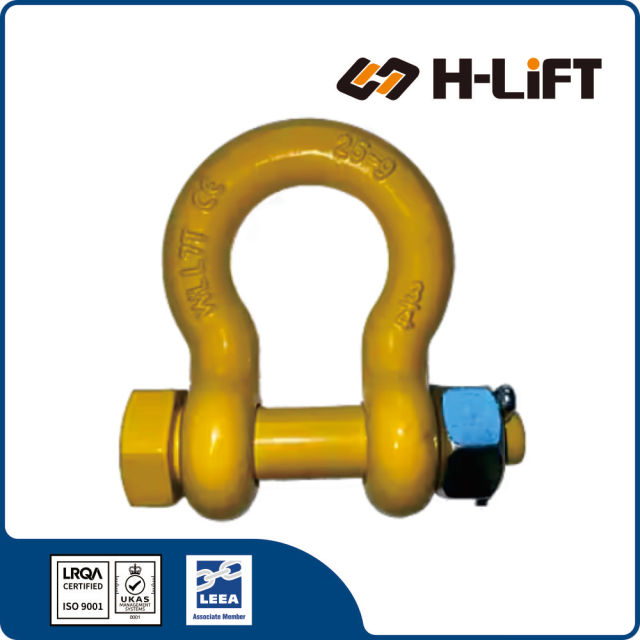

Grade 80 Bolt type Alloy Anchor Shackle BBS type

No.502050
The Grade 80 bolt type alloy anchor shackle (also known as bow shackles) ensure that the various lifting and/or load-fixing elements and accessories are attached and combined.
  • Grade 80 Bolt type Alloy Anchor Shackle BBS type

Specification

H-Lift Grade 80 Bolt type Alloy Anchor Shackle BBS type

  • For lifting application.
  • Forged-quenched and tempered.
  • Material: alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 5 times of Working Load Limit
  • Surface finish: electro galvanized / H.D.G. / powder coated

G-80 Bolt type Alloy Anchor Shackle BBS

Item Size W.L.L. Main Dimensions(mm) Weight Product Code
A C D L N L1 B kg
8-BBS-08 5/16" 1.2t 13.5 21.3 8 53 9.5 50.5 8.4 0.1 502050008
8-BBS-10 3/8" 1.6t 16.8 25.9 9.7 63.2 11 62 10.8 0.15 502050010
8-BBS-11 7/16" 2.5t 19 29.5 11.2 74 13 70 12.8 0.22 502050011
8-BBS-13 1/2" 3.3t 20.6 33.3 12.7 83.3 16 79.5 14.8 0.46 502050013
8-BBS-16 5/8" 5t 27 42.9 17.5 106.4 19 101.5 18 0.73 502050016
8-BBS-19 3/4" 7t 32 51 20.6 126.2 22 117.5 19.4 1.1 502050019
8-BBS-22 7/8" 9.5t 36.6 57.9 24.6 148 25 136 21.5 1.79 502050022
8-BBS-25 1" 12.5t 43 68.3 27 166.6 28 153.5 23.8 2.57 502050025
8-BBS-28 1-1/8" 15t 46 74 31.75 190 32 171.5 25.6 3.75 502050028
8-BBS-32 1-1/4" 18t 51.6 82.5 35 210 35 192 31 5.31 502050032
8-BBS-35 1-3/8" 21t 57 92 36 232.7 38 202 33.4 7.18 502050035
8-BBS-38 1-1/2" 30t 60.5 98 41 254 42 222 34 9.43 502050038
8-BBS-44 1-3/4" 40t 73 126 57.2 313.7 51 278 38 13.38 502050044
8-BBS-50 2" 55t 82.5 146 61 347.5 57 307 45 23.7 502050050
