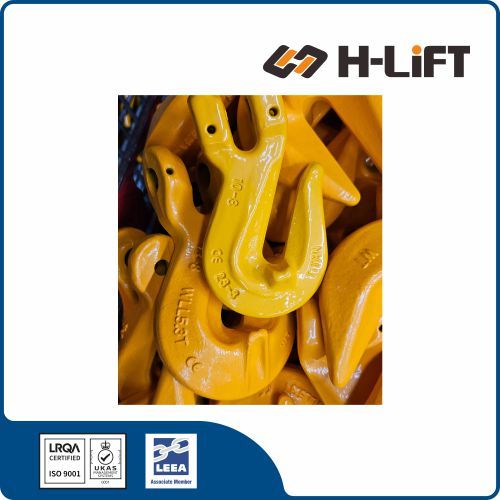

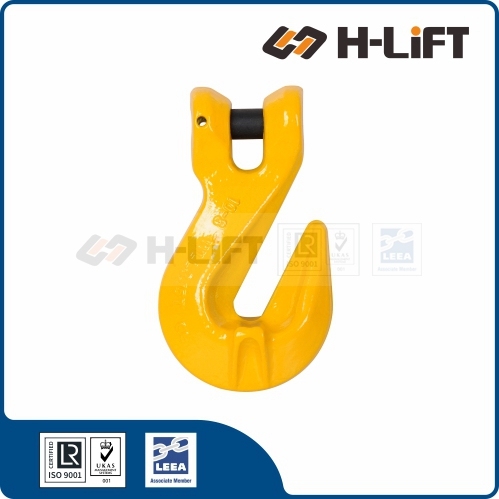

Grade 80 Clevis Cradle Grab Hook CGK type
Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type Grade 80 Clevis Cradle Grab Hook CGK type
  • Grade 80 Clevis Cradle Grab Hook CGK type
  • Grade 80 Clevis Cradle Grab Hook CGK type

Grade 80 Clevis Cradle Grab Hook CGK type

Item No.: 502012
H-Lift Grade 80 Clevis Cradle Grab Hook, CGK type:
Used for shortening chain legs.
No reduction of working load limit due to supporting cradle in saddle of hook.
Lifting chain is attached directly to the hook without a connecting link.
Request Quote
Description
Description

H-Lift Grade 80 Clevis Cradle Grab Hook, CGK type:

  • Used for shortening chain legs.
  • No reduction of working load limit due to supporting cradle in saddle of hook.
  • Lifting chain is attached directly to the hook without a connecting link.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Standard: EN 1677
  • Material: forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated.
Grade 80 Clevis Cradle Grab Hook EN 1677
Grade 80 Clevis Cradle Grab Hook
Grade 80 Clevis Sling Hook with latch

Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton E A H L kg
8-CGK-06 6 1.12 8 8 17.7 77.3 0.25 502012006
8-CGK-08 7+8 2 10.5 9.5 18.5 89 0.32 502012008
8-CGK-10 10 3.15 13 12.5 29 126 0.73 502012010
8-CGK-13 13 5.3 16.5 15 42.7 163.5 1.6 502012013
8-CGK-16 16 8 19 18.5 45.4 183.5 2.8 502012016
8-CGK-20 20 12.5 24 23 56 219 5 502012020
8-CGK-22 22 15 27 27 68.5 254 6.3 502012022
8-CGK-26 26 21.2 30 30 77 309 14.5 502012026
