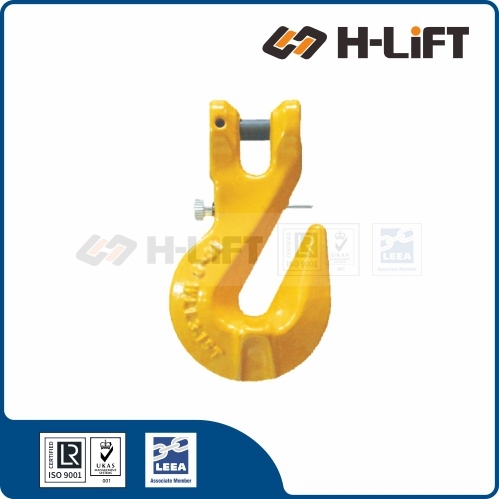

The Grade 80 Clevis Cradle Grab Hook with Safety Pin (CGS Type) is a heavy-duty chain shortener designed to adjust lifting chain lengths securely. The addition of a safety pin ensures the chain remains firmly engaged, preventing accidental disengagement during operations.
*Safety pin prevents chain disengagement
| Feature | Standard Grab Hook | Cradle Hook w/ Pin (CGS) |
|---|---|---|
| Load Capacity | Reduced (-20%) Chain deforms over hook |
100% WLL Cradle supports link fully |
| Security | Open Throat Chain can slip out if slack |
Locked Safety pin keeps chain secure |
| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | E | M | L | |||||
| 8-CGS-06 | 6 | 1.12 | 8 | 32 | 8 | 43.5 | 75 | 0.28 | 502013006 |
| 8-CGS-08 | 7+8 | 2 | 9.5 | 35 | 11 | 50 | 89 | 0.33 | 502013008 |
| 8-CGS-10 | 10 | 3.15 | 12.5 | 45.5 | 13 | 72 | 126.5 | 0.88 | 502013010 |
| 8-CGS-13 | 13 | 5.3 | 15 | 53 | 16.5 | 96 | 163.5 | 1.85 | 502013013 |
| 8-CGS-16 | 16 | 8 | 18.5 | 69.5 | 19 | 112.5 | 183.5 | 3.24 | 502013016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
