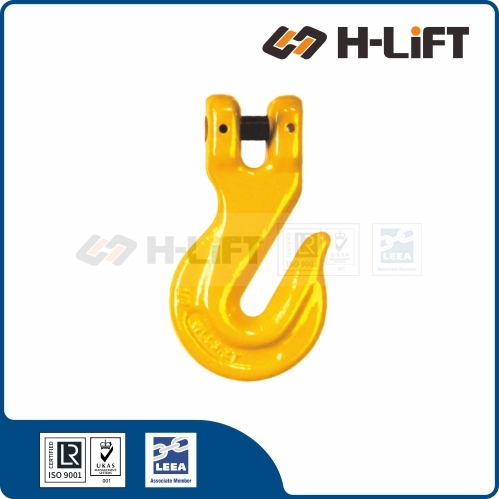

Grade 80 Clevis Grab Hook CGH type

Item No.: 502015
H-Lift Grade 80 Clevis Grab Hook, CGH type:
Non-Cradle Clevis grab hooks are most often used for load securement with lashing chains, which is not recommended for overhead lifting.
Description
Description
H-Lift Grade 80 Clevis Grab Hook, CGH type:
  • Non-Cradle Clevis grab hooks are most often used for load securement with lashing chains, which is not recommended for overhead lifting.
  • Clevis hooks feature a U-shaped attachment point to secure chains or other attachments.
  • This Clevis Grab Hook will result in a 20% reduction in chain capacity when used in overhead lifting application. There is no reduction in capacity when used in load securement application.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Standard: ASTM A952
  • Material: forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated

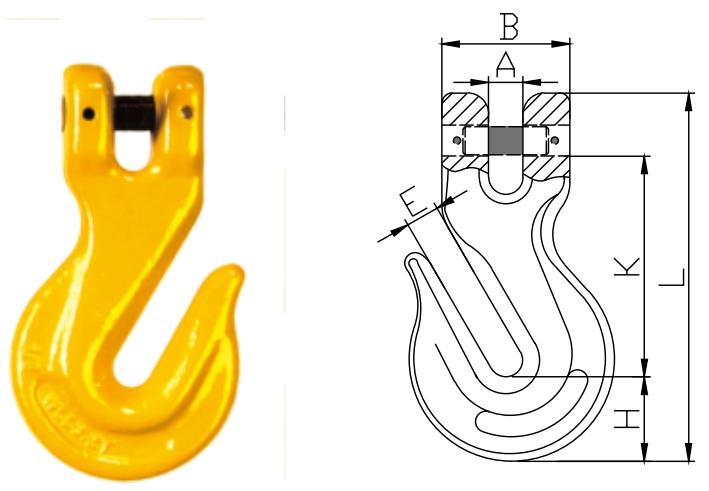

Grade 80 Clevis Grab Hook

Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm T A E B H K L kg
8-CGH-07 7 1.6 9.5 9.5 41 23 65.3 106.5 0.31 502015007
8-CGH-10 10 3.2 12.7 12.5 46 31 82 137 0.7 502015010
8-CGH-13 13 5.4 16 16.7 61 43 113 184.5 1.8 502015013
8-CGH-16 16 8.2 19.5 20 68.5 49 129.5 215 3.1 502015016
8-CGH-20 20 12.8 24 24 88 58 152 254 4.1 502015020
8-CGH-22 22 15.5 27 26 101 64.8 178 295 6.2 502015022

Item No. Chain Size WLL Main Dimensions(inch) Weight Product Code
inch lbs A E B H K L lbs
8-CGH-9/32 9/32(1/4) 3500 0.37 0.37 1.61 0.91 2.57 4.19 0.68 502015007
8-CGH-3/8 3/8 7100 0.5 0.49 1.81 1.22 3.23 5.39 1.54 502015010
8-CGH-1/2 1/2 12000 0.63 0.66 2.4 1.69 4.45 7.26 3.97 502015013
8-CGH-5/8 5/8 18100 0.77 0.79 2.7 1.93 5.1 8.46 6.83 502015016
8-CGH-3/4 3/4 28300 0.94 0.94 3.46 2.28 5.98 10 9.04 502015020
8-CGH-7/8 7/8 34200 1.06 1.02 3.98 2.55 7.01 11.61 13.67 502015022
