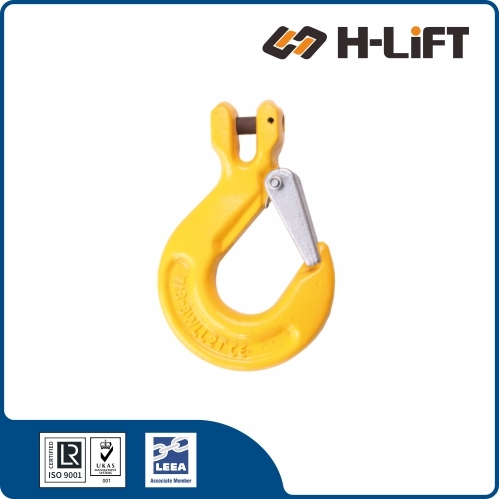

Grade 80 Clevis Sling Hook with Latch CSH type

Item No.: 502009
H-Lift Grade 80 Clevis Sling Hook with Latch
A clevis sling hook with latch is a type of lifting hook commonly used in rigging and lifting operations to securely connect chains, wire ropes, or slings to loads that need to be lifted or moved.
Description Grade 8 Clevis Sling Hook with Latch
Description
H-Lift Grade 80 Clevis Sling Hook with Latch, CSH type:
A clevis sling hook with latch is a type of lifting hook commonly used in rigging and lifting operations to securely connect chains, wire ropes, or slings to loads that need to be lifted or moved, the latch shall engage in the point of the hook to form a complete closure of mating surfaces. With the hook in any orientation the spring shall ensure that the latch is held positively in the closed position. The spring shall be constructed from corrosion protected material and shall be able to withstand at least 10000 complete openings of the latch without fracture.
  • Lifting chain is attached directly to the hook without a connecting link.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Standard: EN 1677
  • Material: forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated
Grade 80 Clevis Sling Hook EN 1677
Grade 8 Clevis Sling Hook EN 1677
Grade 80 Chain Sling



Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton A B Φ H K E kg
8-CSH-06 6 1.12 8 32 35 23 76 26 0.32 502009006
8-CSH-08 7+8 2 9.5 37 37 25 86.4 29 0.48 502009008
8-CSH-10 10 3.15 12.5 49 46 31 104 39 0.95 502009010
8-CSH-13 13 5.3 16.5 56.5 56 42.5 128 47.5 1.8 502009013
8-CSH-16 16 8 21.5 70.5 60 54 150 56 3.4 502009016
8-CSH-20 20 12.5 24 77 79 58 180 59 6 502009020
8-CSH-22 22 15 26 91 101 62 213 72 10.4 502009022
8-CSH-26 26 21.2 30 117 115 75 250 101 14.5 502009026
8-CSH-32 32 31.5 35 150 140 88 317 124 27 502009032
Grade 8 Clevis Sling Hook with Latch

A Grade 8 clevis sling hook with latch is a specific type of lifting hook designed for heavy-duty lifting applications. The "Grade 8" designation indicates that the hook is made from alloy steel with a minimum tensile strength of 800 N/mm², making it a high-strength option suitable for demanding lifting tasks. The hook is equipped with a clevis, which is a U-shaped component, and a latch for added safety.

Here's a breakdown of its components and features:

  1. Clevis: The clevis portion of the hook is the U-shaped piece that has holes on it. This design allows the hook to be easily connected to chains.
  2. Sling Hook: The clevis sling hook itself is the curved hook-shaped component that provides a secure attachment point for lifting equipment, such as chains or slings.
  3. Latch: The latch is a safety mechanism that covers the opening of the hook. It helps prevent accidental disengagement of the lifting equipment from the hook during lifting operations. The latch ensures that the load remains securely attached to the hook, enhancing safety.


Grade 8 clevis sling hooks with latches are commonly used in industries where heavy lifting is required, such as construction, manufacturing, and mining. They are designed to withstand high loads and provide a reliable and safe connection between the lifting equipment and the load.


When using Grade 8 clevis sling hooks with latches, it's important to follow proper safety protocols, including selecting the appropriate hook size and capacity for the load, inspecting the equipment for any signs of wear or damage before each use, and adhering to relevant industry standards and regulations. Regular maintenance and inspection of all lifting equipment are critical for ensuring safe lifting operations.
