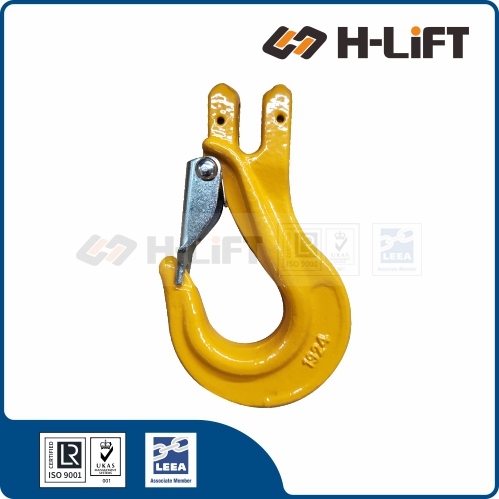

The Grade 80 Clevis Sling Hook with Ridge (CSR Type) is a high-strength, premium lifting hook engineered for secure load attachment in demanding industrial and construction material-handling operations.
*Ridge protects safety latch from ground impact
| Feature | Real-World Benefit |
|---|---|
| Protective Ridge | Latch Durability. Shields the latch from damage when the hook is dragged or dropped. Result: The safety latch lasts significantly longer. |
| Clevis Pin | Cost & Weight Saving. Connects directly to the chain. Result: Eliminates the need for a separate Hammerlock. |

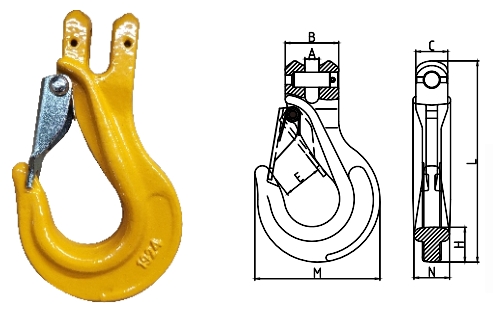

| Item No. | Chain Size (mm) |
WLL (t) |
Dimensions (mm) | Weight (kg) |
Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | M | N | L | ||||||
| 8-CSR-06 | 6 | 1.12 | 8 | 28.8 | 18 | 23 | 66 | 15.5 | 19.2 | 112.2 | 0.30 | 502039006 |
| 8-CSR-08 | 7+8 | 2 | 9 | 33 | 20 | 26 | 84 | 20 | 24.8 | 140 | 0.59 | 502039008 |
| 8-CSR-10 | 10 | 3.15 | 12 | 44 | 25.5 | 33 | 103 | 24 | 28 | 147.5 | 1.19 | 502039010 |
| 8-CSR-13 | 13 | 5.3 | 15 | 57 | 34 | 40 | 133.3 | 38 | 38 | 213.6 | 2.32 | 502039013 |
| 8-CSR-16 | 16 | 8 | 18.5 | 67 | 41.5 | 44 | 161 | 41.5 | 41 | 250 | 3.82 | 502039016 |
| 8-CSR-20 | 20 | 12.5 | 23 | 80 | 51 | 53 | 187 | 48 | 50 | 292 | 6.77 | 502039020 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
