Grade 80 Connecting Link CNL type

Item No.: 502001
G80 connecting links are designed to suit chain slings for industrial lifting applications
Grade 80 connecting link is a fitting used to connect chain to master links, hooks and other components. It is easily assembled and can be disconnected if required
Description
Description

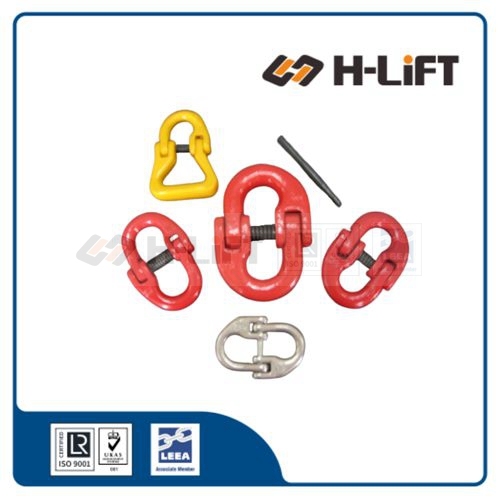

H-Lift Grade 80 Connecting Link, G80 Chain Connector, G8 Hammer Lock:
Grade 80 connecting links are designed to suit chain slings for industrial lifting applications. Manufactured from alloy steel, hardened and tempered.
Used to connect grade 80 chain to an oblong link, hook or other components.
Quenched & tempered.
100% Magnaflux Crack Detection.
Standard: EN 1677
Material: forged alloy steel
Proof load: 2.5 times the Working Load Limit
Safety factor: 4:1
Surface Finish: Powder Coated
Grade 80 Sling Components
Load Pin and Double Sleeve
Grade 80 Connecting Link
Load Pin and Single Sleeve
Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton A L K D kg
8-CNL-06 6 1.12 15 58 42 7 0.08 502001006
8-CNL-07 7 1.5 20 73 54.8 8.5 0.145 502001007
8-CNL-08 7+8 2 20.5 79.5 60.5 8.5 0.146 502001008
8-CNL-10 10 3.15 26 90.5 68 11.5 0.3 502001010
8-CNL-13 13 5.3 30 117 87 15 0.65 502001013
8-CNL-16 16 8 35 148 108.4 19.8 1.15 502001016
8-CNL-18 18 10 38 154 112 21 1.84 502001018
8-CNL-20 18+20 12.5 41 169.5 121.5 24 2.1 502001020
8-CNL-22 22 15 49.5 193.5 141.5 26 2.87 502001022
8-CNL-26 26 21.2 57.5 220 158 30 4.5 502001026
8-CNL-32 32 31.5 67.5 281 205 37 8.21 502001032

Connecting links according to ASTM A952 or AS 3776 are also available.



LOAD PIN AND DOUBLE SLEEVE

Item No. Chain Size Item No. Chain Size
mm mm

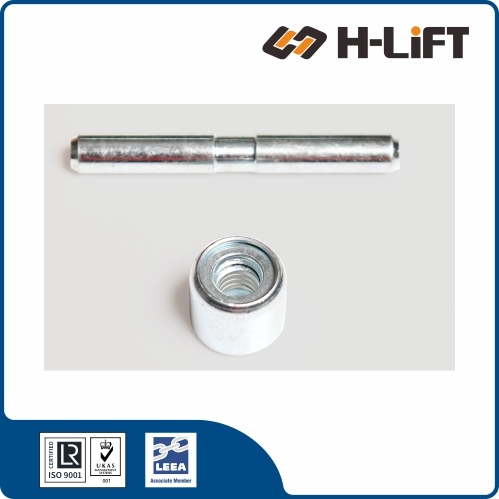

8-SP-CNL-A-06 6 8-SP-CNL-A-18 18
8-SP-CNL-A-08 7+8 8-SP-CNL-A-20 20
8-SP-CNL-A-10 10 8-SP-CNL-A-22 22
8-SP-CNL-A-13 13 8-SP-CNL-A-26 26
8-SP-CNL-A-16 16 8-SP-CNL-A-32 32



LOAD PIN AND SINGLE SLEEVE

Item No. Chain Size Item No. Chain Size
mm mm

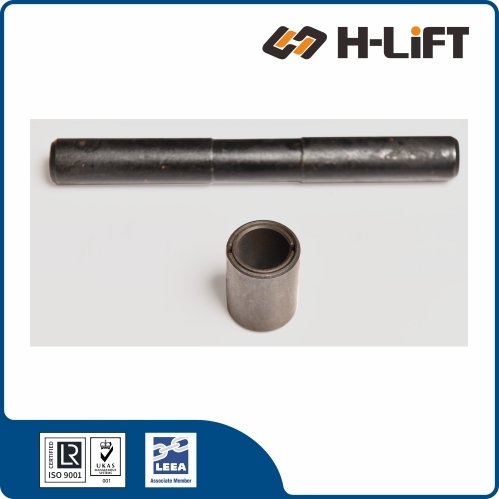

8-SP-CNL-B-06 6 8-SP-CNL-B-18 18
8-SP-CNL-B-08 7+8 8-SP-CNL-B-20 20
8-SP-CNL-B-10 10 8-SP-CNL-B-22 22
8-SP-CNL-B-13 13 8-SP-CNL-B-26 26
8-SP-CNL-B-16 16 8-SP-CNL-B-32 32
  • Surface finish of sleeve and load pin: black oxidized, zinc plated or chrome plated.
  • All load pins are individually inspected and tested.
